RLB1314 Series

Catalog

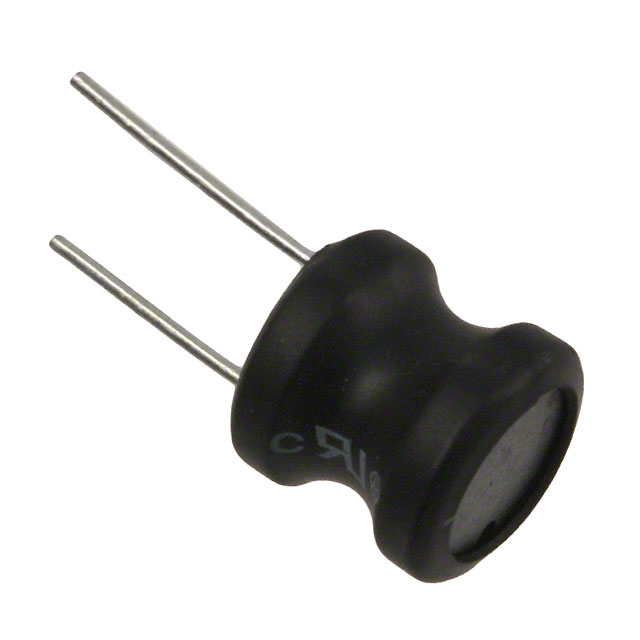

INDUCTOR, RADIAL, RLB SERIES, 3.3 µH, 5.6 A, 8000 µOHM, ± 20%

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current Rating (Amps)	Inductance Frequency - Test	Shielding	Q @ Freq	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Type	DC Resistance (DCR) [Max]	Inductance	Material - Core	Tolerance	Frequency - Self Resonant	Mounting Type	DC Resistance (DCR)	Q @ Freq [custom]	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. RLB1314-3R3ML	0.461 "	11.7 mm	0.512 "	13 mm	5.6 A	1 kHz	Unshielded	7.96 MHz 90	125 °C	-40 C	Radial Vertical Cylinder	Drum Core Wirewound	8 mOhm	3.3 µH	Ferrite	20 %	59 MHz	Through Hole
Bourns Inc. RLB1314-222KL	0.461 "	11.7 mm	0.512 "	13 mm	0.21 A	1 kHz	Unshielded	60 252 kHz	125 °C	-40 C	Radial Vertical Cylinder	Drum Core Wirewound	2.9 Ohm	2.2 mH	Ferrite	10 %	1.1 MHz	Through Hole
Bourns Inc. RLB1314-680KL	0.461 "	11.7 mm	0.512 "	13 mm	1.2 A	1 kHz	Unshielded	2.52 MHz 80	125 °C	-40 C	Radial Vertical Cylinder	Drum Core Wirewound	92 mOhm	68 µH	Ferrite	10 %	6.7 MHz	Through Hole
Bourns Inc. RLB1314-332KL	0.461 "	11.7 mm	0.512 "	13 mm	0.17 A	1 kHz	Unshielded	50 252 kHz	125 °C	-40 C	Radial Vertical Cylinder	Drum Core Wirewound	3.7 Ohm	3300 µH	Ferrite	10 %	900 kHz	Through Hole
Bourns Inc. RLB1314-221KL	0.461 "	11.7 mm	0.512 "	13 mm	0.68 A	1 kHz	Unshielded	40 796 kHz	125 °C	-40 C	Radial Vertical Cylinder	Drum Core Wirewound	250 mOhm	220 µH	Ferrite	10 %	3.4 MHz	Through Hole
Bourns Inc. RLB1314-101KL	0.461 "	11.7 mm	0.512 "	13 mm	1 A	1 kHz	Unshielded	70	125 °C	-40 C	Radial Vertical Cylinder	Drum Core Wirewound	120 mOhm	100 µH	Ferrite	10 %	5.4 MHz	Through Hole

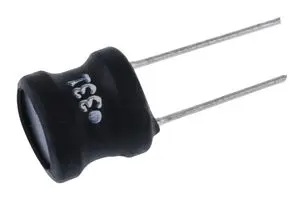

Bourns Inc. RLB1314-331KL	0.461 "	11.7 mm	0.512 "	13 mm	0.55 A	1 kHz	Unshielded	40 796 kHz	125 °C	-40 C	Radial Vertical Cylinder	Drum Core Wirewound		330 µH	Ferrite	10 %	2.7 MHz	Through Hole	420 mOhm
Bourns Inc. RLB1314-150ML	0.461 "	11.7 mm	0.512 "	13 mm	2.6 A	1 kHz	Unshielded	2.52 MHz 120	125 °C	-40 C	Radial Vertical Cylinder	Drum Core Wirewound		15 µH	Ferrite	20 %	19 MHz	Through Hole	19 mOhm
Bourns Inc. RLB1314-470KL	0.461 "	11.7 mm	0.512 "	13 mm	1.5 A	1 kHz	Unshielded		125 °C	-40 C	Radial Vertical Cylinder	Drum Core Wirewound		47 µH	Ferrite	10 %	8.3 MHz	Through Hole	56 mOhm	2.52 MHz	90
Bourns Inc. RLB1314-6R8ML	0.461 "	11.7 mm	0.512 "	13 mm	3.9 A	1 kHz	Unshielded		125 °C	-40 C	Radial Vertical Cylinder	Drum Core Wirewound	12 mOhm	6.8 µH	Ferrite	20 %	34 MHz	Through Hole			80	7.96 MHz
