882-03 Series
Manufacturer: Qualtek
Beta
⌘K

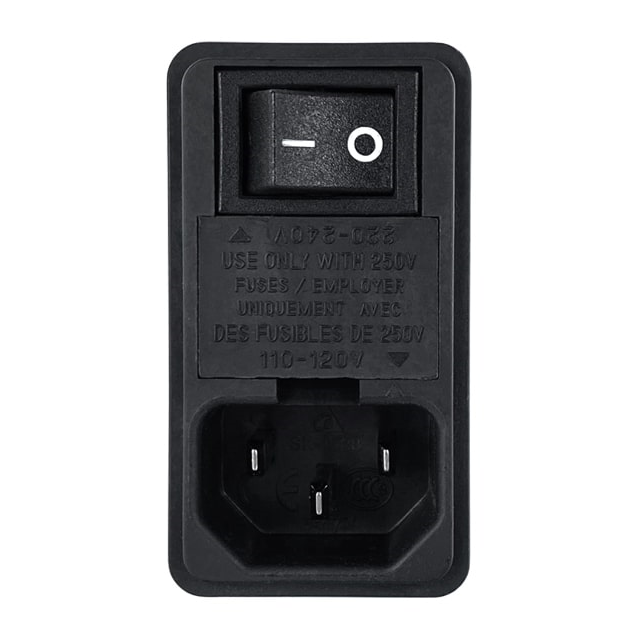

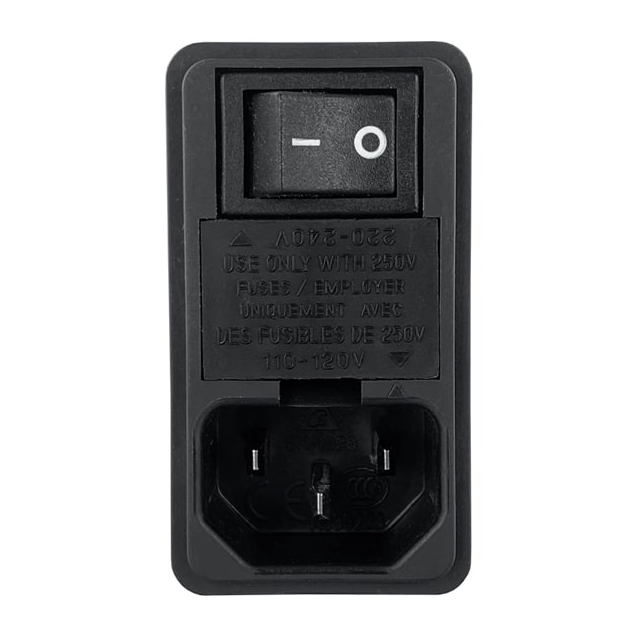

PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Termination | Connector Style | Mounting Type | Fuse Holder, Drawer | Approval Agency | Features | Filter Type | Voltage Rating - Appliance Inlet [Min] | Voltage Rating - Appliance Inlet [Max] | Panel Thickness [Min] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Max] | Panel Cutout Dimensions | Switch Features | Connector Type | Current Rating - Appliance Inlet | Accomodates a Fuse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | Solder Eyelet | IEC 320-C14 | Panel Mount Snap-In | Fuse Holder | CSA UL VDE | Voltage Selector | Filtered (EMI RFI) - Commercial | 115 VAC | 250 VAC | 0.031 " | 0.79 mm | 0.126 in | 3.2 mm | Variable Size | Switch On-Off | Receptacle Male Blades - Module | 3 A | |
 Qualtek | Solder Eyelet | IEC 320-C14 | Panel Mount Snap-In | Twin Fused | CSA UL VDE | Voltage Selector | Filtered (EMI RFI) - Commercial | 115 VAC | 250 VAC | 0.031 " | 0.79 mm | 0.126 in | 3.2 mm | Variable Size | Switch On-Off | Receptacle Male Blades - Module | 3 A |
