382A034 Series

Catalog

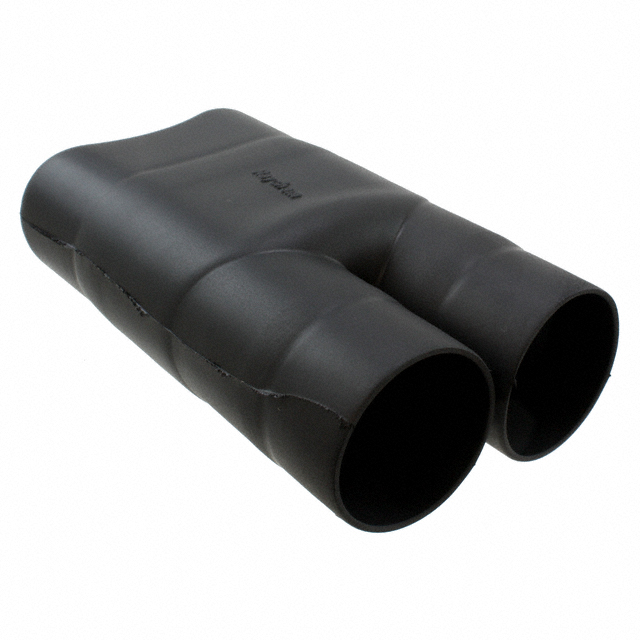

HEATSHRNK BOOT BRKOUT 2:1 Y SZ34

Part	Large Recovered Length	Large Recovered Length	Material	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Color	Small Recovered Length	Small Recovered Length	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Shell Size - Insert	Type	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Features
TE Connectivity Aerospace, Defense and Marine 382A034-3-0	65.51 mm	2.579 "	Polyolefin (PO) Semi-Rigid	26.92 mm	1.06 in	Black	78.69 mm	3.098 "	0.488 "	12.4 mm	34	Boot Transition - Breakout 2:1 (Y)	38.61 mm	1.52 in
TE Connectivity Aerospace, Defense and Marine 382A034-100/180-0	65.53 mm	2.58 "	Polyolefin (PO) Semi-Flexible Halogen Free	26.92 mm	1.06 in	Black	78.74 mm	3.1 in	0.49 "	12.45 mm	34	Boot Transition - Breakout 2:1 (Y)	38.61 mm	1.52 in
TE Connectivity Aerospace, Defense and Marine 382A034-5/42-0	78.74 mm	3.1 in	Elastomer Flexible	26.92 mm	1.06 in	Black	65.53 mm	2.58 in	0.49 "	12.45 mm	34	Boot Transition - Breakout 2:1 (Y)	38.61 mm	1.52 in
TE Connectivity Aerospace, Defense and Marine 382A034-100-0	65.51 mm	2.579 "	Polyolefin (PO) Semi-Flexible	26.92 mm	1.06 in	Black	78.69 mm	3.098 "	0.488 "	12.4 mm	34	Boot Transition - Breakout 2:1 (Y)	38.61 mm	1.52 in
TE Connectivity Aerospace, Defense and Marine 382A034-25/86-0	65.51 mm	2.579 "	Elastomer Semi-Rigid	26.92 mm	1.06 in	Black	78.69 mm	3.098 "	0.488 "	12.4 mm	34	Boot Transition - Breakout 2:1 (Y)	38.61 mm	1.52 in	Adhesive Coating Fluid Resistant
