WS-9 Series

Catalog

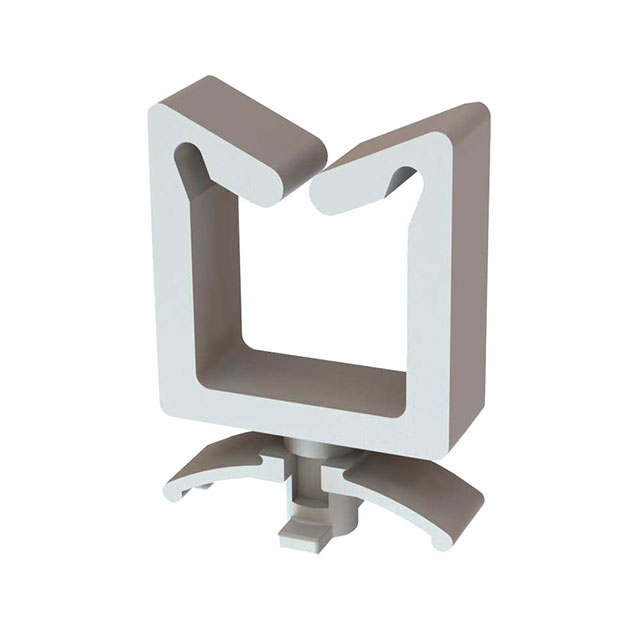

FASTENER, SADDLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 15.3 MM, 5.6 MM

Part	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Type	Type Attributes	Color	Panel Hole Size [y]	Panel Hole Size [x]	Panel Hole Size [x]	Panel Hole Size [y]	Features	Opening Size [z]	Opening Size [x]	Opening Size [x]	Opening Size [z]	Width [y]	Width	Material	Mounting Type	Material Flammability Rating	Height	Height	Length	Length
Essentra Components WS-9-2-01	1.6 mm	0.031 "	0.063 "	0.79 mm	Clip Wire Saddle	Hinged	Natural	0.283 in	0.157 "	4 mm	7.19 mm	Anti-Rotation Pin	9.91 mm	11.18 mm	0.44 in	0.39 "	0.22 in	5.59 mm	Polyamide (PA66) Nylon 6/6	1/4 Turn Push In Winged	UL94 V-2	0.7 in	17.78 mm	0.6 in	15.24 mm
Essentra Components WS-9-3-01	1.6 mm	0.031 "	0.063 "	0.79 mm	Clip Wire Saddle	Hinged	Natural	0.283 in	0.157 "	4 mm	7.19 mm	Anti-Rotation Pin	19.05 mm	11.18 mm	0.44 in	0.75 "	0.22 in	5.59 mm	Polyamide (PA66) Nylon 6/6	1/4 Turn Push In Winged	UL94 V-2	1.06 in	26.92 mm	0.6 in	15.24 mm
