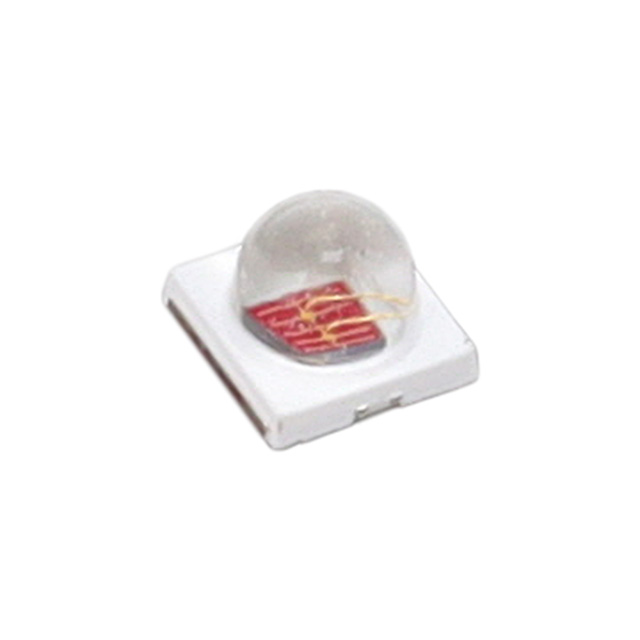

ASM6-SR90 Series
Manufacturer: Broadcom Limited
Catalog
LED ASM6-SXXX-XXXXH 625NM 3SMD
| Part | Thermal Resistance of Package | Viewing Angle | Package / Case | Lumens/Watt @ Current - Test | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Luminous Flux @ Current/Temperature | Voltage - Forward (Vf) (Typ) | Current - Test | Temperature - Test | Wavelength | Wavelength [Max] | Wavelength [Min] | Color | Current - Max [Max] | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 4 °C/W | 90 ° | 3-SMD No Lead | 80 lm/W | 0.136 " | 3.45 mm | 3.45 mm | 0.136 in | Surface Mount | 2.7 mm | 0.106 in | 62 lm | 2.2 V | 350 mA | 25 °C | 625 nm | 635 nm | 617 nm | Red | 700 mA | 3-SMD |
