9966 Series
Manufacturer: Belden Inc.
Beta
⌘K

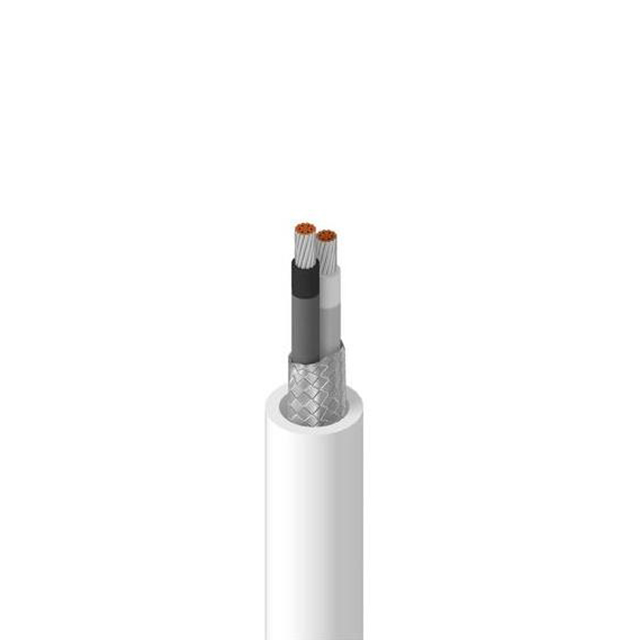

CABLE 2CON 22AWG WHT SHLD
| Part | Shield Material | Shield Coverage | Shield Type | Jacket (Insulation) Material | Number of Conductors | Length | Length | Operating Temperature [Min] | Operating Temperature [Max] | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Conductor Insulation | Conductor Insulation | Conductor Material | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Tinned | 90 % | Braid | Poly-Vinyl Chloride (PVC) | 2 | 152.4 m | 500 ft | -20 ░C | 105 ░C | Communications | 0.02 " | 0.508 mm | White | Multi-Conductor | 34 AWG | 19 | 0.174 in | 4.42 mm | Polyamide (PA) | Nylon | Poly-Vinyl Chloride (PVC) | Copper Tinned | 22 AWG |
