68004 Series

Catalog

BERG IK II .100CC SR-STRAIGHT

Part	Termination	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Type	Fastening Type	Contact Shape	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Material	Insulation Color	Shrouding	Connector Type	Current Rating (Amps)	Mounting Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Voltage Rating	Material Flammability Rating	Number of Positions	Contact Finish - Post
Amphenol ICC (FCI) 68004-125HLF	Solder	0.107 "	2.71 mm	0.525 in	13.34 mm	1	0.1 in	2.54 mm	Male Pin	Push-Pull	Square	0.1 in	2.54 mm	All	Phosphor Bronze	Black	Unshrouded	Header	5 A	Through Hole	0.318 "	8.08 mm	30 Áin	0.76 Ám	Gold or Gold GXT™	110 VDC	UL94 V-0
Amphenol ICC (FCI) 68004-121HLF	Solder	0.107 "	2.71 mm	0.525 in	13.34 mm	1	0.1 in	2.54 mm	Male Pin	Push-Pull	Square	0.1 in	2.54 mm	All	Phosphor Bronze	Black	Unshrouded	Header	5 A	Through Hole	0.318 "	8.08 mm	30 Áin	0.76 Ám	Gold or Gold GXT™	110 VDC	UL94 V-0	21
Amphenol ICC (FCI) 68004-123HLF	Solder	0.107 "	2.71 mm	0.525 in	13.34 mm	1	0.1 in	2.54 mm	Male Pin	Push-Pull	Square	0.1 in	2.54 mm	All	Phosphor Bronze	Black	Unshrouded	Header	5 A	Through Hole	0.318 "	8.08 mm	30 Áin	0.76 Ám	Gold or Gold GXT™	110 VDC	UL94 V-0	23
Amphenol ICC (FCI) 68004-113HLF	Solder	0.107 "	2.71 mm	0.525 in	13.34 mm	1	0.1 in	2.54 mm	Male Pin	Push-Pull	Square	0.1 in	2.54 mm	All	Phosphor Bronze	Black	Unshrouded	Header	5 A	Through Hole	0.318 "	8.08 mm	30 Áin	0.76 Ám	Gold or Gold GXT™	110 VDC	UL94 V-0	13

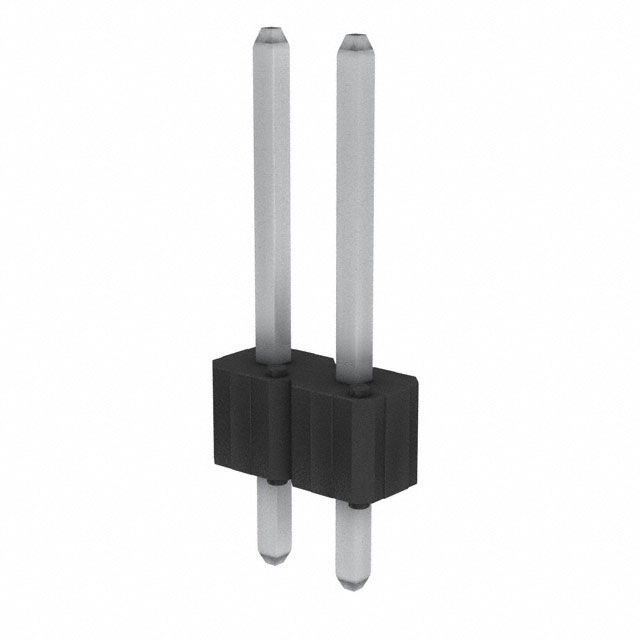

Amphenol ICC (FCI) 68004-402HLF	Solder	0.107 "	2.71 mm	0.525 in	13.34 mm	1	0.1 in	2.54 mm	Male Pin	Push-Pull	Square	0.1 in	2.54 mm	All	Phosphor Bronze	Black	Unshrouded	Header	5 A	Through Hole	0.318 "	8.08 mm	100 çin	2.54 çm		110 VDC	UL94 V-0	2	Tin
Amphenol ICC (FCI) 68004-436H	Solder	0.107 "	2.71 mm	0.525 in	13.34 mm	1	0.1 in	2.54 mm	Male Pin	Push-Pull	Square	0.1 in	2.54 mm	All	Phosphor Bronze	Black	Unshrouded	Header		Through Hole	0.318 "	8.08 mm	100 çin	2.54 çm			UL94 V-0	36
Amphenol ICC (FCI) 68004-136	Solder	0.107 "	2.71 mm	0.525 in	13.34 mm	1	0.1 in	2.54 mm	Male Pin	Push-Pull	Square	0.1 in	2.54 mm	All	Phosphor Bronze	Black	Unshrouded	Header		Through Hole	0.318 "	8.08 mm	30 Áin	0.76 Ám	Gold or Gold GXT™		UL94 V-0	36
Amphenol ICC (FCI) 68004-215HLF	Solder	0.107 "	2.71 mm	0.525 in	13.34 mm	1	0.1 in	2.54 mm	Male Pin	Push-Pull	Square	0.1 in	2.54 mm	All	Phosphor Bronze	Black	Unshrouded	Header	5 A	Through Hole	0.318 "	8.08 mm	15 µin	0.38 µm	Gold or Gold GXT™	110 VDC	UL94 V-0	15
Amphenol ICC (FCI) 68004-226HLF	Solder	0.107 "	2.71 mm	0.525 in	13.34 mm	1	0.1 in	2.54 mm	Male Pin	Push-Pull	Square	0.1 in	2.54 mm	All	Phosphor Bronze	Black	Unshrouded	Header	5 A	Through Hole	0.318 "	8.08 mm	15 µin	0.38 µm	Gold or Gold GXT™	110 VDC	UL94 V-0	26
Amphenol ICC (FCI) 68004-434HLF	Solder	0.107 "	2.71 mm	0.525 in	13.34 mm	1	0.1 in	2.54 mm	Male Pin	Push-Pull	Square	0.1 in	2.54 mm	All	Phosphor Bronze	Black	Unshrouded	Header	5 A	Through Hole	0.318 "	8.08 mm	100 çin	2.54 çm		110 VDC	UL94 V-0	34	Tin
