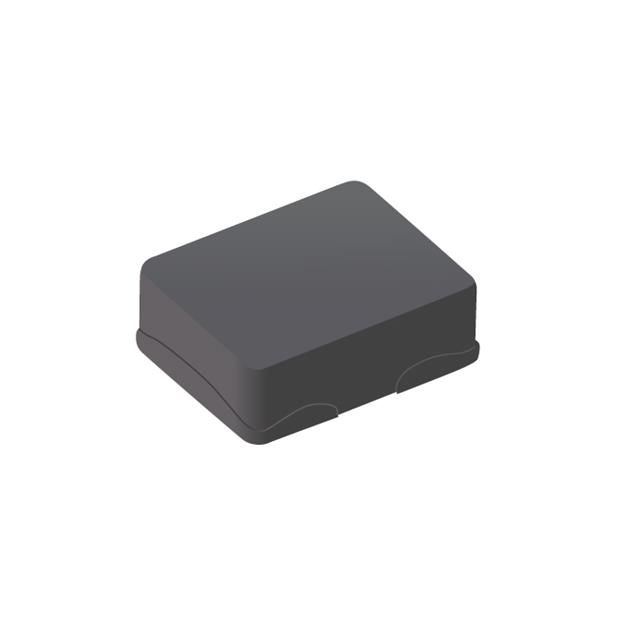

SRP2512TMA Series

Catalog

POWER INDUCTORS - SMD IND,2.5X2X1MM,0.33UH+/-20%,6.8A,SHD AEC-Q200

Part	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Frequency - Self Resonant	Q @ Freq	Supplier Device Package	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Package / Case	Material - Core	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Inductance Frequency - Test	Mounting Type	Current Rating (Amps)	Current - Saturation (Isat)	Ratings	Inductance	DC Resistance (DCR) [Max]
Bourns Inc. SRP2512TMA-R33M	20 %	2.5 mm	0.079 in	0.098 in	2 mm	165 MHz	1 MHz 15	1008	Flat Wire	1.2 mm	0.047 "	2520 Metric	1008	Metal	Shielded	-55 C	150 °C	1 MHz	Surface Mount	6.8 A	7.5 A	AEC-Q200	330 nH	17 mOhm
Bourns Inc. SRP2512TMA-R68M	20 %	2.5 mm	0.079 in	0.098 in	2 mm	90 MHz	1 MHz 15	1008	Flat Wire	1.2 mm	0.047 "	2520 Metric	1008	Metal	Shielded	-55 C	150 °C	1 MHz	Surface Mount	5.3 A	5.5 A	AEC-Q200	0.68 µH	27.6 mOhm
Bourns Inc. SRP2512TMA-1R0M	20 %	2.5 mm	0.079 in	0.098 in	2 mm	63 MHz	1 MHz 15	1008	Flat Wire	1.2 mm	0.047 "	2520 Metric	1008	Metal	Shielded	-55 C	150 °C	1 MHz	Surface Mount	4.5 A	5 A	AEC-Q200	1 µH	39.6 mOhm
