SWH.2S Series

Manufacturer: LEMO

Catalog

CONN ADPT 3P-3P F/M-F/M PNL MNT

Part	Current Rating (Amps)	Orientation (Convert From)	Orientation (Convert To)	Includes	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Shielding	Shell Size - Insert (Convert From)	Number of Positions (Convert From)	Housing Material	Convert To (Adapter End) [custom]	Convert To (Adapter End) [custom]	Fastening Type	Mounting Feature	Convert From (Adapter End)	Housing Color	Features	Ingress Protection	Connector Style	Shell Size - Insert (Convert To)	Number of Positions (Convert To)	Convert To (Adapter End)	Shell Size - Insert (Convert To) [custom]
LEMO SWH.2S.303.CLLPV	15 A	Keyed	Keyed	1 Adapter 1 Nut	Chrome	80 °C	-20 ░C	Panel Mount	Shielded	303	3	Brass	Male Pins	Female Sockets	Push-Pull	Bulkhead - Rear Side Nut	Female Sockets Male Pins	Silver	Mounting Hardware Vacuumtight	IP68 - Dust Tight Waterproof	Standard	303

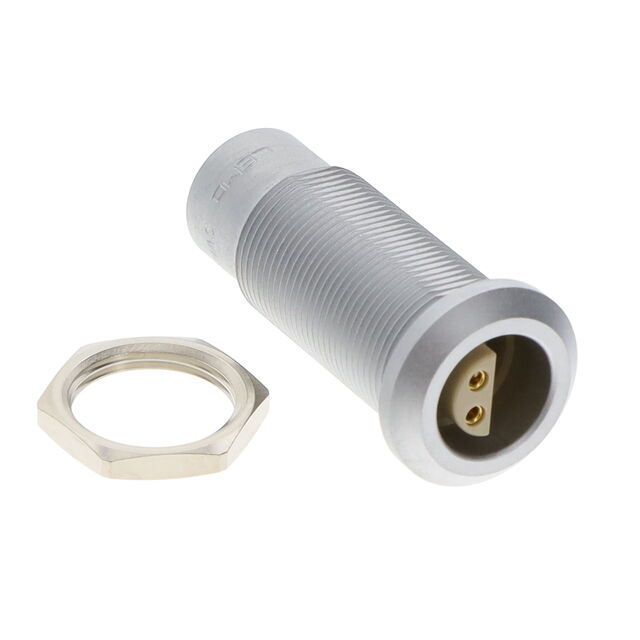

LEMO SWH.2S.304.CLLPV	15 A	Keyed	Keyed	1 Adapter 1 Nut	Chrome	80 °C	-20 ░C	Panel Mount	Shielded	304	4	Brass	Male Pins	Female Sockets	Push-Pull	Bulkhead - Rear Side Nut	Female Sockets Male Pins	Silver	Mounting Hardware Vacuumtight	IP68 - Dust Tight Waterproof	Standard	304	4
LEMO SWH.2S.307.CLLPV	9 A 12 Amps	Keyed	Keyed	1 Adapter 1 Nut	Chrome	80 °C	-20 ░C	Panel Mount	Shielded	307	7	Brass	Male Pins	Female Sockets	Push-Pull	Bulkhead - Rear Side Nut	Female Sockets Male Pins	Silver	Mounting Hardware Vacuumtight	IP68 - Dust Tight Waterproof	Standard	307	7
LEMO SWH.2S.275.CLLPV	12 Amps	Keyed	Keyed	1 Adapter 1 Nut	Chrome	80 °C	-20 ░C	Panel Mount	Shielded	275	1	Brass			Push-Pull	Bulkhead - Rear Side Nut	Female Sockets	Silver	Mounting Hardware Vacuumtight	IP68 - Dust Tight Waterproof	Standard	275	1	Male Pins
LEMO SWH.2S.307.CLMPV	9 A 12 Amps	Keyed	Keyed	1 Adapter 1 Nut	Chrome	80 °C	-20 ░C	Panel Mount	Shielded	307	7	Brass	Male Pins	Female Sockets	Push-Pull	Bulkhead - Rear Side Nut	Female Sockets Male Pins	Silver	Mounting Hardware Vacuumtight	IP68 - Dust Tight Waterproof	Standard	307	7
LEMO SWH.2S.306.CLLPV	12 Amps	Keyed	Keyed	1 Adapter 1 Nut	Chrome	80 °C	-20 ░C	Panel Mount	Shielded	306	6	Brass	Male Pins	Female Sockets	Push-Pull	Bulkhead - Rear Side Nut	Female Sockets Male Pins	Silver	Mounting Hardware Vacuumtight	IP68 - Dust Tight Waterproof	Standard	306	6
LEMO SWH.2S.308.CLLPV	9 A	Keyed	Keyed	1 Adapter 1 Nut	Chrome	80 °C	-20 ░C	Panel Mount	Shielded	308	8	Brass	Male Pins	Female Sockets	Push-Pull	Bulkhead - Rear Side Nut	Female Sockets Male Pins	Silver	Mounting Hardware Vacuumtight	IP68 - Dust Tight Waterproof	Standard		8		308
