RB520 Series

Catalog

DIODE SCHOTTKY 40V 250MA SOD523

Part	Speed	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Current - Reverse Leakage @ Vr	Qualification	Voltage - Forward (Vf) (Max) @ If [Max]	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Technology	Grade	Supplier Device Package	Current - Average Rectified (Io)	Speed	Operating Temperature - Junction	Voltage - Forward (Vf) (Max) @ If	Package / Case
Micro Commercial Components RB520S-40HE3-TP	200 mA 500 ns	-55 °C	125 °C	10 µA	AEC-Q101	550 mV	Surface Mount	40 V	SC-79 SOD-523	Schottky	Automotive	SOD-523	250 mA
Micro Commercial Components RB520S-30L2-TP	200 mA			500 nA			Surface Mount	30 V	0402 (1006 Metric)	Schottky		2-DFN1006	100 mA	Any Speed	125 °C	450 mV

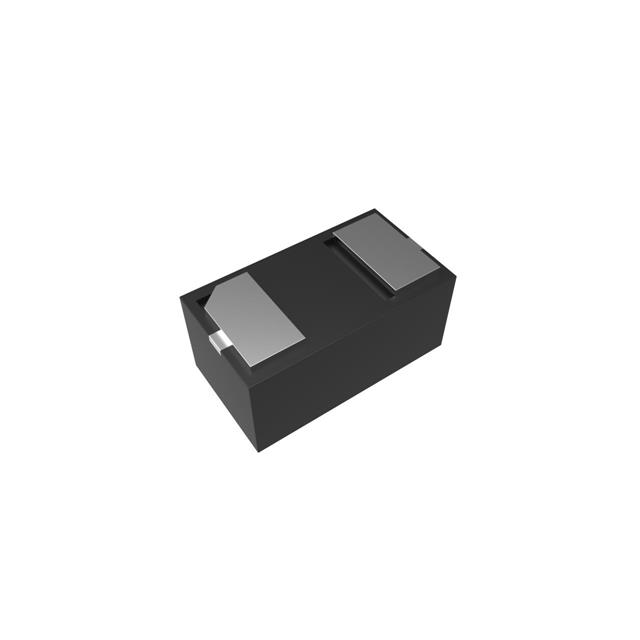

Micro Commercial Components RB520S-30EP-TP	200 mA			20 µA			Surface Mount	30 V	0201	Schottky		0201-B	100 mA	Any Speed	125 °C	850 mV	0603 Metric
Micro Commercial Components RB520S-40-TP	200 mA			10 µA		550 mV	Surface Mount	40 V	SC-79 SOD-523	Schottky		SOD-523	200 mA	Any Speed	125 °C

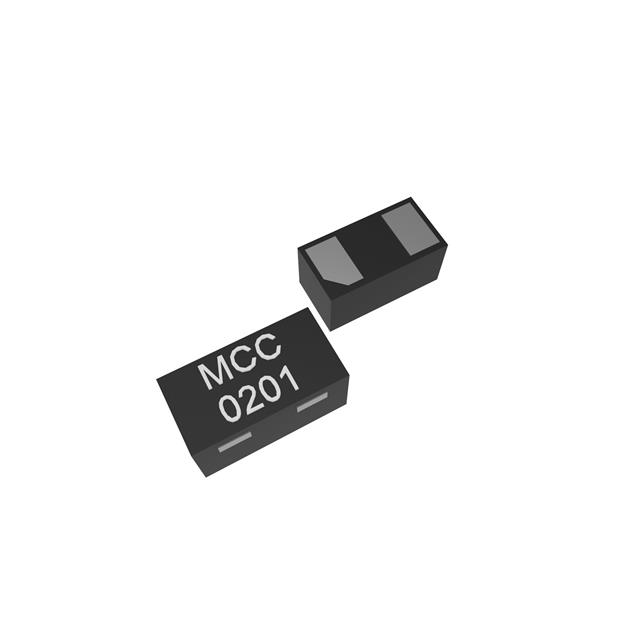

Micro Commercial Components RB520S-30DP-TP	200 mA			20 µA			Surface Mount	30 V	0201	Schottky		0201	100 mA	Any Speed	125 °C	850 mV	0603 Metric
