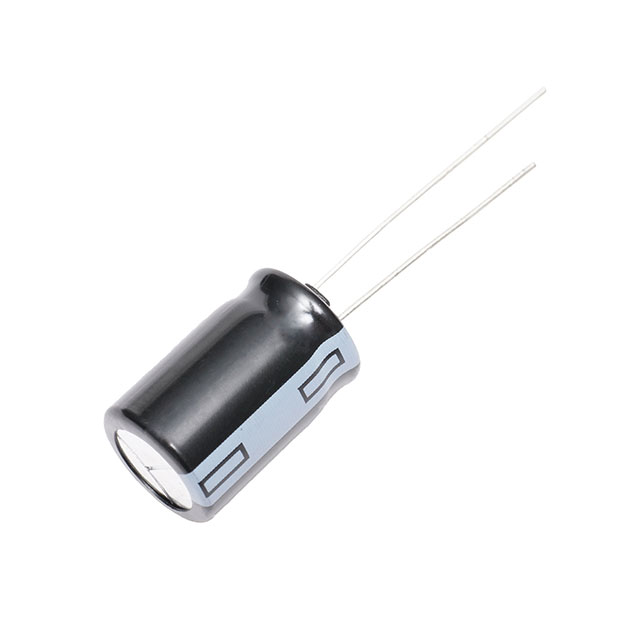

EEU-FP Series

Catalog

CAP ALUM 750UF 20% 35V RADIAL TH

Part	Ripple Current @ Low Frequency	Lead Spacing	Lead Spacing	Tolerance	Lifetime @ Temp.	Ratings	Polarization	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Capacitance	Ripple Current @ High Frequency	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	ESR (Equivalent Series Resistance)	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales EEU-FP1V751B	1.95 A	5 mm	0.197 in	20 %	4000 Hrs	AEC-Q200	Polar	105 ░C	-55 °C	Automotive	750 µF	3 A	35 V	10 mm	0.394 in	52 mOhm	Radial Can	22 mm	0.866 in	Through Hole
Panasonic Industrial Automation Sales EEU-FP1V751	1.95 A	5 mm	0.197 in	20 %	4000 Hrs	AEC-Q200	Polar	105 ░C	-55 °C	Automotive	750 µF	3 A	35 V	10 mm	0.394 in	52 mOhm	Radial Can	22 mm	0.866 in	Through Hole
Panasonic Industrial Automation Sales EEU-FP1E202	2.6 A	5 mm	0.197 in	20 %	5000 Hrs	AEC-Q200	Polar	105 ░C	-55 °C	Automotive	2 mF	4 A	25 VDC	12.5 mm	0.492 in	30 mOhm	Radial Can	27 mm	1.063 in	Through Hole

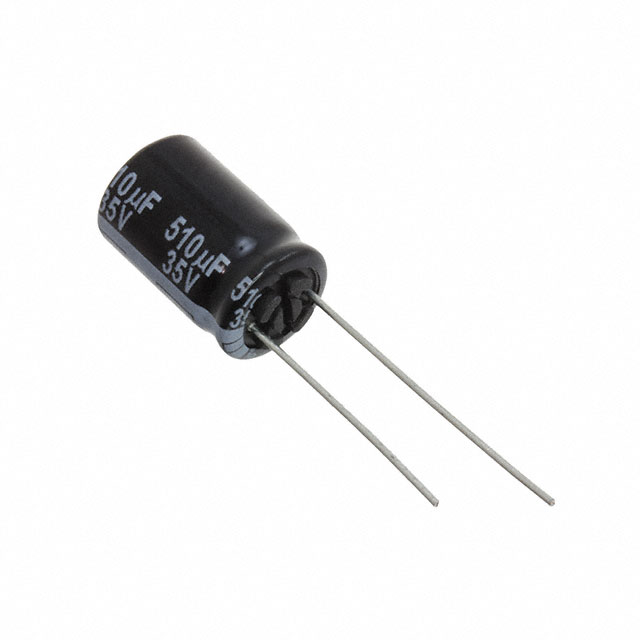

Panasonic Industrial Automation Sales EEU-FP1V511	1.625 A	5 mm	0.197 in	20 %	4000 Hrs	AEC-Q200	Polar	105 ░C	-55 °C	Automotive	510 µF	2.5 A	35 V	10 mm	0.394 in	68 mOhm	Radial Can			Through Hole	0.689 in	17.5 mm
Panasonic Industrial Automation Sales EEU-FP1V102B	2.1125 A	5 mm	0.197 in	20 %	5000 Hrs	AEC-Q200	Polar	105 ░C	-55 °C	Automotive	1000 µF	3.25 A	35 V	12.5 mm	0.492 in	38 mOhm	Radial Can	22 mm	0.866 in	Through Hole
