1300 Series

Headers & Wire Housings RECT CON 60CNT PLG CS W/HZ CBL INLT

Manufacturer: Keystone Electronics

Catalog

Headers & Wire Housings RECT CON 60CNT PLG CS W/HZ CBL INLT

Catalog

Headers & Wire Housings RECT CON 60CNT PLG CS W/HZ CBL INLT

Part	Contact Finish	Pin Size - Above Flange [diameter]	Pin Size - Above Flange	Board Thickness	Board Thickness	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Length - Below Flange [x]	Length - Below Flange [x]	Terminal Type	Terminal Style	Contact Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Insulation	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Above Flange	Length - Above Flange [x]	Mounting Hole Diameter	Mounting Hole Diameter	Length - Above Flange [x]	Length - Overall	Length - Overall	Board Thickness [z]	Board Thickness [z]	Tool Type	For Use With/Related Products	Flange Diameter	Flange Diameter	Pin Size - Above Flange [diameter]	Length - Above Flange [custom]	Length - Above Flange [custom]

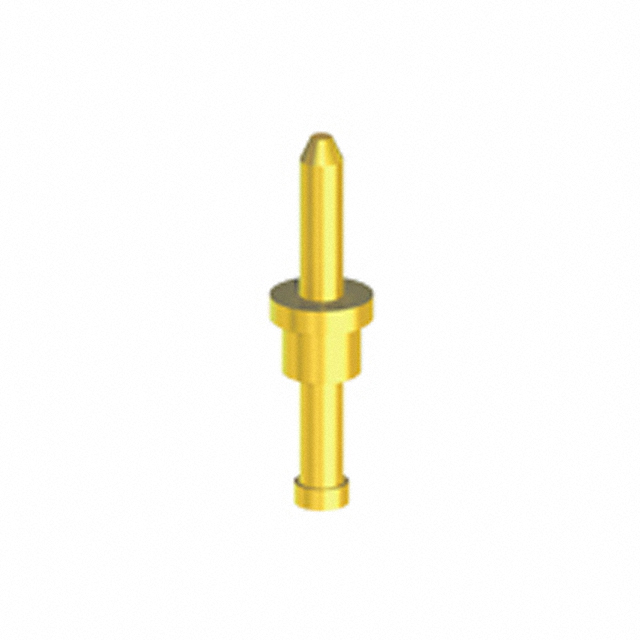

Keystone Electronics 1357-2	Tin	0.04 in	1.02 mm	1.57 mm	0.062 "	200 Áin	5.08 Ám	Through Hole	0.207 "	5.26 mm	PC Pin	Single End	Brass	1.93 mm	0.076 in	0.379 in	9.63 mm	Non-Insulated	Swage	0.094 "	2.39 mm	3.81 mm	0.15 in

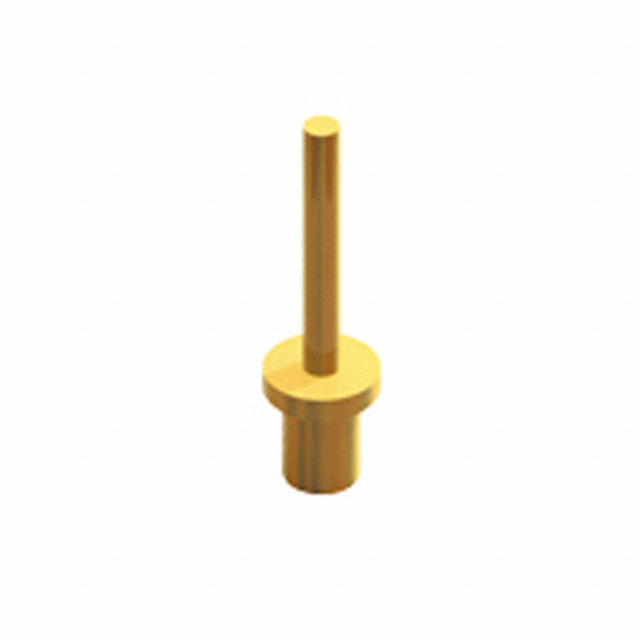

Keystone Electronics 1375-1	Tin	0.03 in	0.76 mm	0.81 mm	0.032 in	200 Áin	5.08 Ám	Through Hole	0.051 "	1.3 mm	PC Pin	Single End	Brass			0.301 in	7.65 mm	Non-Insulated	Swage	0.094 "	2.39 mm		0.23 in	0.067 in	1.7 mm	5.84 mm
Keystone Electronics 1374-3	Gold	0.03 in	0.76 mm			10 Áin	0.25 Ám	Through Hole	0.113 "	2.87 mm	PC Pin	Single End	Brass					Non-Insulated	Swage	0.094 "	2.39 mm		0.23 in	0.067 in	1.7 mm	5.84 mm	9.22 mm	0.363 in	0.093 in	2.36 mm
Keystone Electronics 1356-1	Gold	0.04 in	1.02 mm	0.81 mm	0.032 in	10 Áin	0.25 Ám	Through Hole	0.176 "	4.47 mm	PC Pin	Single End	Brass	1.93 mm	0.076 in	0.348 in	8.84 mm	Non-Insulated	Swage	0.094 "	2.39 mm	3.81 mm	0.15 in

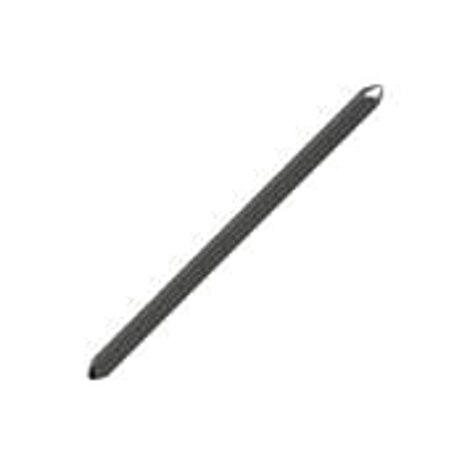

Keystone Electronics 1323																															Insertion Tool	Solderless Terminals 0.093" Dia.
Keystone Electronics 1367-1	Tin	0.02 in		0.81 mm	0.032 in	200 Áin	5.08 Ám	Through Hole	0.051 "	1.3 mm	PC Pin	Single End	Brass	0.89 mm	0.035 in	0.276 "	7.01 mm	Non-Insulated	Swage			5.46 mm	0.215 in										0.05 in	1.27 mm	0.51 mm
Keystone Electronics 1368-1	Gold	0.025 in		0.81 mm	0.032 in	10 Áin	0.25 Ám	Through Hole	0.051 "	1.3 mm	PC Pin	Single End	Brass	1.09 mm	0.043 in	0.201 in	5.11 mm	Non-Insulated	Swage	0.062 in	1.57 mm														0.64 mm	0.125 in	3.18 mm
