LMZ12003EXT Series

3A SIMPLE SWITCHER Power Module with 20V Maximum Input Voltage for Military and Rugged App

Catalog

3A SIMPLE SWITCHER Power Module with 20V Maximum Input Voltage for Military and Rugged App

Part	Utilized IC / Part	Current - Output	Voltage - Input [Min]	Voltage - Input [Max]	Main Purpose	Outputs and Type	Outputs and Type	Frequency - Switching [Max]	Supplied Contents	Regulator Topology	Voltage - Output	Board Type	Voltage - Input (Min) [Min]	Control Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Type	Number of Outputs	Package / Case	Applications	Supplier Device Package	Mounting Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Efficiency

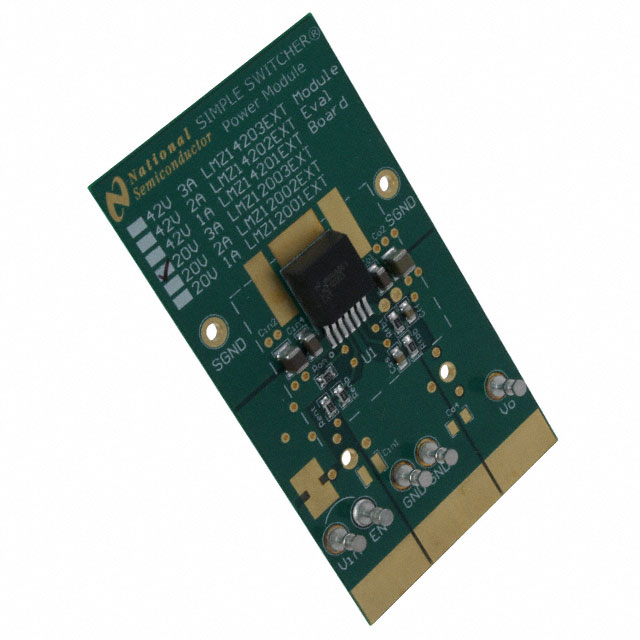

Texas Instruments LMZ12003EXTEVAL/NOPB	LMZ12003EXT	3 A	4.5 V	20 V	DC/DC Step Down	Non-Isolated	1	1 MHz	Board(s)	Buck	1.8 V	Fully Populated

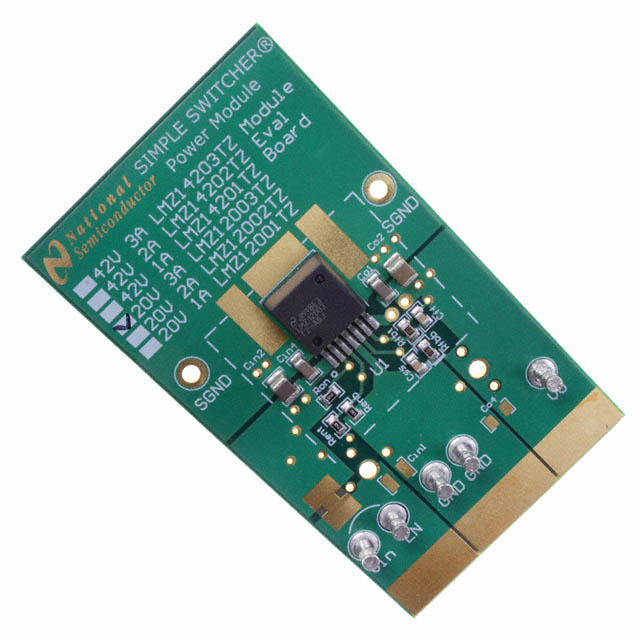

Texas Instruments LMZ12003EVAL/NOPB	LMZ12003	3 A	4.5 V	20 V	DC/DC Step Down	Non-Isolated	1	1 MHz	Board(s)	Buck	1.8 V	Fully Populated
Texas Instruments LMZ12003EXTTZX/NOPB													4.5 V	Active High Enable	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	0.8 V	6 V	Non-Isolated PoL Module	1	TO-PMOD-7 Power Module	ITE (Commercial)	TO-PMOD-7	Surface Mount	OCP OTP OVP SCP UVLO	85 °C	-40 °C	3 A	20 V	92 %
Texas Instruments LMZ12003TZE-ADJ/NOPB													4.5 V	Active High Enable	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	0.8 V	6 V	Non-Isolated PoL Module	1	TO-PMOD-7 Power Module	ITE (Commercial)	TO-PMOD-7	Surface Mount	UVLO	125 °C	-40 °C	3 A	20 V	92 %
Texas Instruments LMZ12003EXTTZE/NOPB													4.5 V	Active High Enable	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	0.8 V	6 V	Non-Isolated PoL Module	1	TO-PMOD-7 Power Module	ITE (Commercial)	TO-PMOD-7	Surface Mount	UVLO	125 °C	-55 °C	3 A	20 V	92 %
Texas Instruments LMZ12003TZ-ADJ/NOPB													4.5 V	Active High Enable	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	0.8 V	6 V	Non-Isolated PoL Module	1	TO-PMOD-7 Power Module	ITE (Commercial)	TO-PMOD-7	Surface Mount	UVLO	125 °C	-40 °C	3 A	20 V	92 %
Texas Instruments LMZ12003TZX-ADJ/NOPB													4.5 V	Active High Enable	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	0.8 V	6 V	Non-Isolated PoL Module	1	TO-PMOD-7 Power Module	ITE (Commercial)	TO-PMOD-7	Surface Mount	OCP OTP OVP SCP UVLO	125 °C	-40 °C	3 A	20 V	92 %

Catalog

3A SIMPLE SWITCHER Power Module with 20V Maximum Input Voltage for Military and Rugged App

Key Features

• Junction Temperature Range –55°C to 125°CIntegrated Shielded InductorSimple PCB LayoutFlexible Start-up Sequencing Using External Soft-Start Capacitor and Precision EnableProtection Against Inrush Currents and Faultssuch as Input UVLO and Output Short CircuitSingle Exposed Pad and Standard Pinout for EasyMounting and ManufacturingFast Transient Response for FPGAs and ASICsLow Output Voltage RipplePin-to-Pin Compatible With Family Devices:LMZ14203EXT/2EXT/1EXT(42-V Maximum 3 A, 2 A, 1 A)LMZ14203/2/1 (42-V Maximum 3 A, 2 A, 1 A)LMZ12003/2/1 (20-V Maximum 3 A, 2 A, 1 A)Fully WEBENCH®Power Designer EnabledElectrical Specifications18-W Maximum Total Power OutputUp to 3-A Output CurrentInput Voltage Range 4.5 V to 20 VOutput Voltage Range 0.8 V to 6 VEfficiency up to 92%Performance BenefitsLow Radiated Emissions and High RadiatedImmunityPasses Vibration Standard MIL-STD-883Method 2007.2 Condition A JESD22–B103BCondition 1Passes Drop Standard MIL-STD-883 Method2002.3 Condition B JESD22–B110 Condition BJunction Temperature Range –55°C to 125°CIntegrated Shielded InductorSimple PCB LayoutFlexible Start-up Sequencing Using External Soft-Start Capacitor and Precision EnableProtection Against Inrush Currents and Faultssuch as Input UVLO and Output Short CircuitSingle Exposed Pad and Standard Pinout for EasyMounting and ManufacturingFast Transient Response for FPGAs and ASICsLow Output Voltage RipplePin-to-Pin Compatible With Family Devices:LMZ14203EXT/2EXT/1EXT(42-V Maximum 3 A, 2 A, 1 A)LMZ14203/2/1 (42-V Maximum 3 A, 2 A, 1 A)LMZ12003/2/1 (20-V Maximum 3 A, 2 A, 1 A)Fully WEBENCH®Power Designer EnabledElectrical Specifications18-W Maximum Total Power OutputUp to 3-A Output CurrentInput Voltage Range 4.5 V to 20 VOutput Voltage Range 0.8 V to 6 VEfficiency up to 92%Performance BenefitsLow Radiated Emissions and High RadiatedImmunityPasses Vibration Standard MIL-STD-883Method 2007.2 Condition A JESD22–B103BCondition 1Passes Drop Standard MIL-STD-883 Method2002.3 Condition B JESD22–B110 Condition B

Description

The LMZ12003EXT SIMPLE SWITCHER®power module is an easy-to-use step-down DC-DC solution capable of driving up to 3-A load with exceptional power conversion efficiency, line and load regulation, and output accuracy. The LMZ12003EXT is available in an innovative package that enhances thermal performance and allows for hand or machine soldering. The LMZ12003EXT can accept an input voltage rail between 4.5 V and 20 V and can deliver an adjustable and highly accurate output voltage as low as 0.8 V. The LMZ12003EXT only requires three external resistors and four external capacitors to complete the power solution. The LMZ12003EXT is a reliable and robust design with the following protection features: thermal shutdown, input undervoltage lockout, output overvoltage protection, short circuit protection, output current limit, and the device allows start-up into a prebiased output. A single resistor adjusts the switching frequency up to 1 MHz. The LMZ12003EXT SIMPLE SWITCHER®power module is an easy-to-use step-down DC-DC solution capable of driving up to 3-A load with exceptional power conversion efficiency, line and load regulation, and output accuracy. The LMZ12003EXT is available in an innovative package that enhances thermal performance and allows for hand or machine soldering. The LMZ12003EXT can accept an input voltage rail between 4.5 V and 20 V and can deliver an adjustable and highly accurate output voltage as low as 0.8 V. The LMZ12003EXT only requires three external resistors and four external capacitors to complete the power solution. The LMZ12003EXT is a reliable and robust design with the following protection features: thermal shutdown, input undervoltage lockout, output overvoltage protection, short circuit protection, output current limit, and the device allows start-up into a prebiased output. A single resistor adjusts the switching frequency up to 1 MHz.
