284510 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

TERM BLOCK PLUG 11POS STR 3.5MM

Part	Termination Style	Contact Material	Wire Strip Length [Min]	Wire Strip Length [Max]	Screw Size	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Material Flammability Rating	Features	Voltage - UL	Number of Positions	Insulation Height	Insulation Height	Number of Levels	Positions Per Level	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - UL	Torque - Screw	Torque - Screw	Type	Contact Mating Finish	Color	Pitch [x]	Pitch [x]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]
TE Connectivity Raychem Cable Protection 1-284510-1	Screw - Rising Cage Clamp	Phosphor Bronze	5 mm	6 mm	M2	2 mm˛	0.05 mm˛	UL94 V-0	Mating Flange	300 V	11	0.437 in	11.1 mm	1	11	Free Hanging (In-Line)	-40 °C	110 °C	11 A	2.7 Lb-In	0.31 Nm	Plug Female Sockets	Tin	Green	3.5 mm	0.138 in	14 AWG	30 AWG

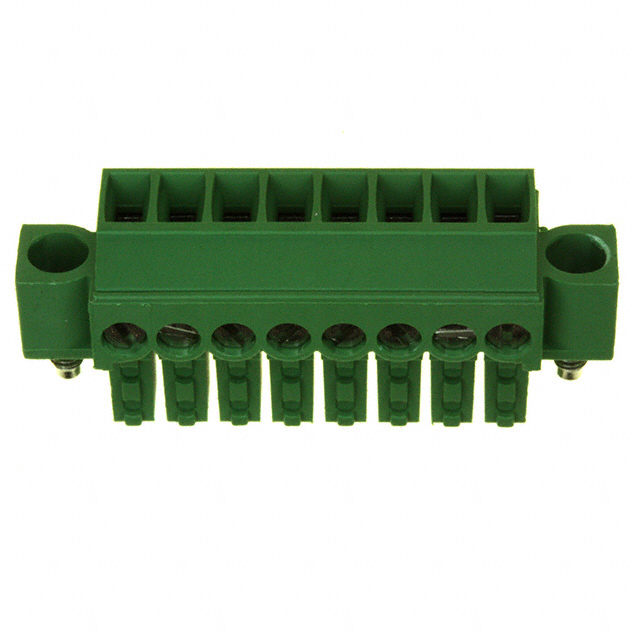

TE Connectivity Raychem Cable Protection 284510-8	Screw - Rising Cage Clamp	Phosphor Bronze	5 mm	6 mm	M2			UL94 V-0	Mating Flange	300 V	8	0.437 in	11.1 mm	1	8	Free Hanging (In-Line)	-40 °C	110 °C	11 A	2.7 Lb-In	0.31 Nm	Plug Female Sockets	Tin	Green	3.5 mm	0.138 in	14 AWG	30 AWG	0.05 mm²	2 mm²
TE Connectivity Raychem Cable Protection 284510-3	Screw - Rising Cage Clamp	Phosphor Bronze	5 mm	6 mm	M2			UL94 V-0	Mating Flange	300 V		0.437 in	11.1 mm	1	3	Free Hanging (In-Line)	-40 °C	110 °C	11 A	2.7 Lb-In	0.31 Nm	Plug Female Sockets	Tin	Green	3.5 mm	0.138 in	14 AWG	30 AWG	0.05 mm²	2 mm²

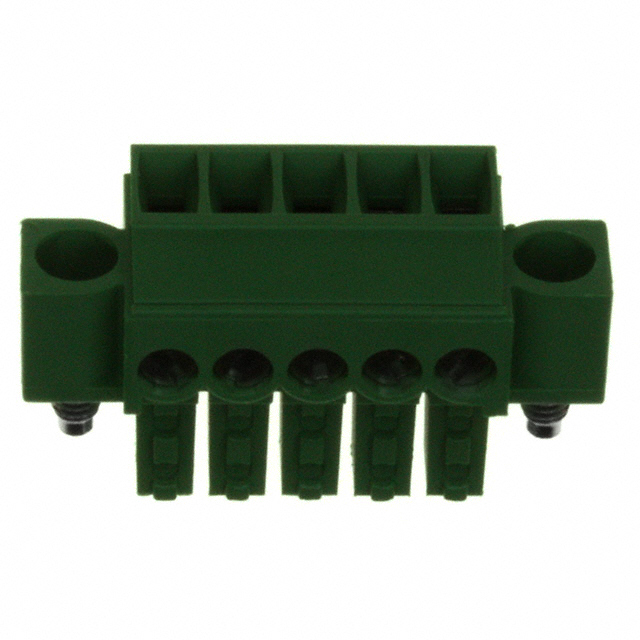

TE Connectivity Raychem Cable Protection 284510-5	Screw - Rising Cage Clamp	Phosphor Bronze	5 mm	6 mm	M2			UL94 V-0	Mating Flange	300 V		0.437 in	11.1 mm	1	5	Free Hanging (In-Line)	-40 °C	110 °C	11 A	2.7 Lb-In	0.31 Nm	Plug Female Sockets	Tin	Green	3.5 mm	0.138 in	14 AWG	30 AWG	0.05 mm²	2 mm²

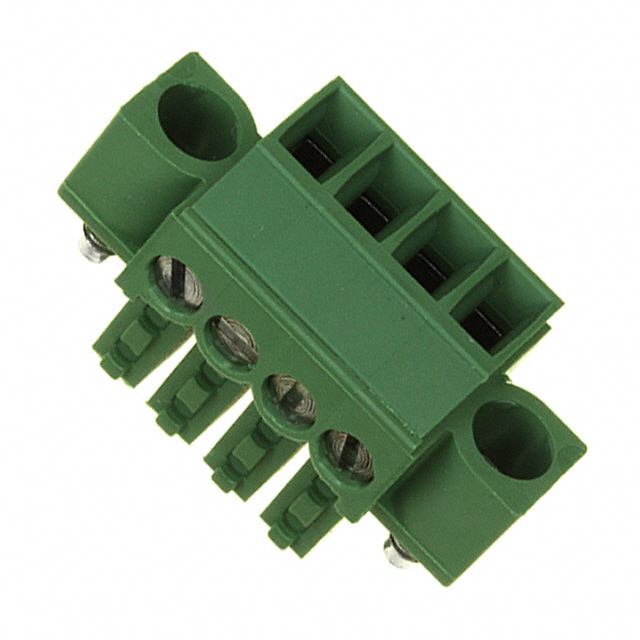

TE Connectivity Raychem Cable Protection 284510-4	Screw - Rising Cage Clamp	Phosphor Bronze	5 mm	6 mm	M2	2 mm˛	0.05 mm˛	UL94 V-0	Mating Flange	300 V	4	0.437 in	11.1 mm	1	4	Free Hanging (In-Line)	-40 °C	110 °C	11 A	2.7 Lb-In	0.31 Nm	Plug Female Sockets	Tin	Green	3.5 mm	0.138 in	14 AWG	30 AWG
