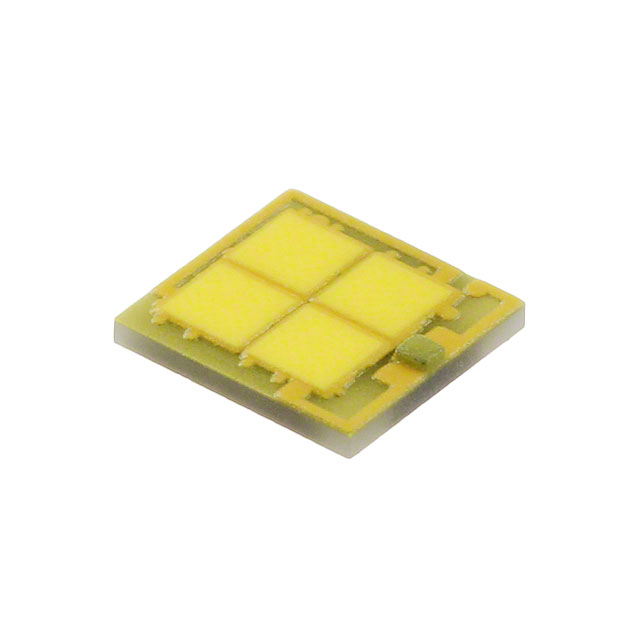

LMZ8 Series
Manufacturer: Lumileds
Beta
⌘K
LED UNI-COLOR WHITE 781LM 3000K CHIP LED 3-PIN SMD T/R
| Part | Thermal Resistance of Package | Mounting Type | Height - Seated (Max) [Max] | Height - Seated (Max) | Viewing Angle | Current - Max [Max] | Package / Case | Color | Flux @ 85°C, Current - Test | Lumens/Watt @ Current - Test | Current - Test | CCT (K) | Voltage - Forward (Vf) (Typ) | CRI (Color Rendering Index) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumileds | 1.25 °C/W | Surface Mount | 0.033 in | 0.84 mm | 120 ° | 4.8 A | 1716 (4240 Metric) | Warm White | 781 lm | 100 lm/W | 2.8 A | 3000 K | 2.8 V | 80 |
Lumileds | 1.25 °C/W | Surface Mount | 0.033 in | 0.84 mm | 120 ° | 4.8 A | 1716 (4240 Metric) | Warm White | 760 lm | 97 lm/W | 2.8 A | 2700 K | 2.8 V | 80 |
