M2018SA Series

Catalog

SWITCH TOGGLE SPDT 0.4VA 28V

Part	Actuator Material	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Actuator Type	Actuator Length [x]	Switch Function	Voltage Rating - DC	Termination Style	Voltage Rating - AC	Bushing Thread	Illumination	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Features	Circuit
NKK Switches M2018SA1G01	Brass Chrome Plated	50000 Cycles	85 °C	-30 ░C	Panel Mount	Standard Round	12.27 mm	Mom-Off-Mom	28 V	Solder Lug	28 V	1/4-40	Non-Illuminated	0.4 VA	6.5 mm	Epoxy Sealed Terminals	SPDT
NKK Switches M2018SA2W13	Brass Chrome Plated	25000 Steps	85 °C	-30 ░C	Through Hole	Standard Round	12.28 mm	Mom-Off-Mom	30 V	PC Pin	125 V	Unthreaded	Non-Illuminated	3 A 6 A	6.5 mm	Epoxy Sealed Terminals	SPDT
NKK Switches M2018SA1G01-BA	Brass Chrome Plated	50000 Cycles	85 °C	-30 ░C	Panel Mount	Standard Round	12.27 mm	Mom-Off-Mom	28 V	Solder Lug	28 V	1/4-40	Non-Illuminated	0.4 VA	6.5 mm	Black Cap	SPDT

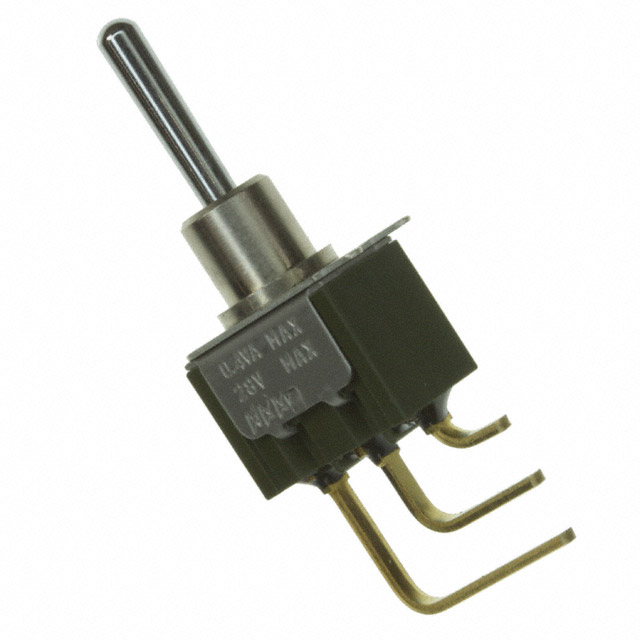

NKK Switches M2018SA2G40	Brass Chrome Plated	50000 Cycles	85 °C	-30 ░C	Right Angle Through Hole Vertical	Standard Round	12.28 mm	Mom-Off-Mom	28 V	PC Pin	28 V	Unthreaded	Non-Illuminated	0.4 VA	6.5 mm	Epoxy Sealed Terminals	SPDT
NKK Switches M2018SA2A13/CUL
