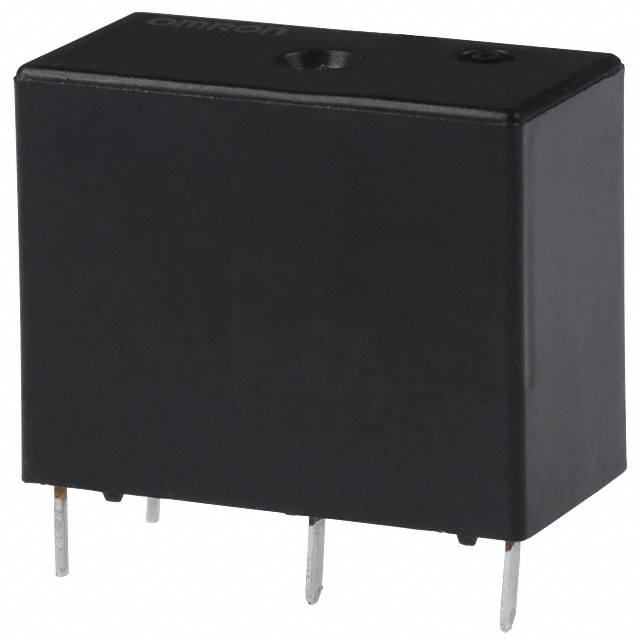

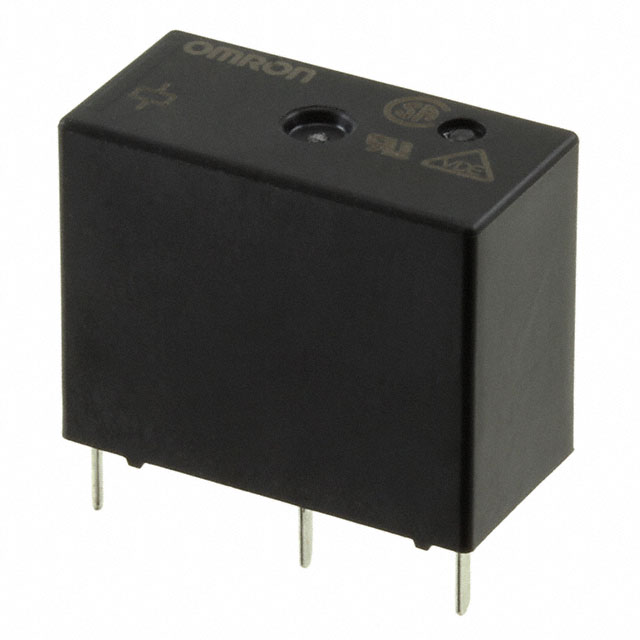

G5Q-1-E Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPDT 10A 12V
| Part | Must Operate Voltage | Coil Type | Coil Insulation | Contact Form | Must Release Voltage | Relay Type | Termination Style | Coil Voltage | Operate Time | Release Time | Load - Max Switching | Coil Resistance | Seal Rating | Coil Current | Approval Agency | Mounting Type | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Rating (Current) | Switching Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 9 VDC | Non Latching | Class F | SPDT (1 Form C) | 0.6 VDC | General Purpose | PC Pin | 12 VDC | 10 ms | 5 ms | 300 W 2770 VA | 360 Ohms | Sealed - Flux Protection | 33.3 mA | CQC CSA UR VDE | Through Hole | Silver Alloy | 85 °C | -40 °C | 10 A | 30 VDC 277 VAC |
 Omron Electronics Inc-EMC Div | 18 VDC | Non Latching | Class F | SPDT (1 Form C) | 1.2 VDC | General Purpose | PC Pin | 24 VDC | 10 ms | 5 ms | 300 W 2770 VA | 1440 Ohms | Sealed - Flux Protection | 16.7 mA | CQC CSA UR VDE | Through Hole | Silver Alloy | 85 °C | -40 °C | 10 A | 30 VDC 277 VAC |
