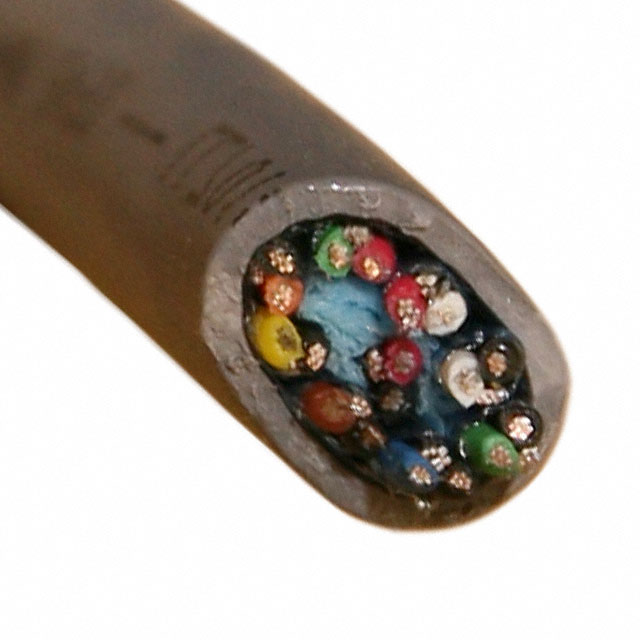

6014C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 18COND 22AWG 1000'
| Part | Shield Material | Shield Coverage | Wire Gauge | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Conductor Insulation | Number of Conductors | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Usage | Shield Type | Ratings | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | 22 AWG | -20 ░C | 60 °C | Copper Tinned | Polypropylene (PP) | 18 | 304.8 m | 1000 ft | 0.436 in | 11.07 mm | Multi-Pair | 300 VDC | 1.219 mm | 0.048 in | Drain Wire | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Slate | Communication Control | Foil | |||
ALPHA WIRE | Aluminum | 100 % | 22 AWG | Copper Tinned | Polypropylene (PP) | 18 | 0.436 in | 11.07 mm | Multi-Pair | 300 VDC | 1.219 mm | 0.048 in | Drain Wire | Poly-Vinyl Chloride (PVC) | 28 AWG | 7 | Slate | Foil | UL Style 2493 | |||||||
ALPHA WIRE | Aluminum | 100 % | 22 AWG | -20 ░C | 60 °C | Copper Tinned | Polypropylene (PP) | 18 | 152.4 m | 500 ft | 0.436 in | 11.07 mm | Multi-Pair | 300 VDC | 1.219 mm | 0.048 in | Drain Wire | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Slate | Communication Control | Foil | |||
ALPHA WIRE | Aluminum | 100 % | 22 AWG | -20 ░C | 60 °C | Copper Tinned | Polypropylene (PP) | 18 | 0.436 in | 11.07 mm | Multi-Pair | 300 VDC | 1.219 mm | 0.048 in | Drain Wire | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Slate | Communication Control | Foil | 100 ft | 30.5 m |
