9424-9513 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

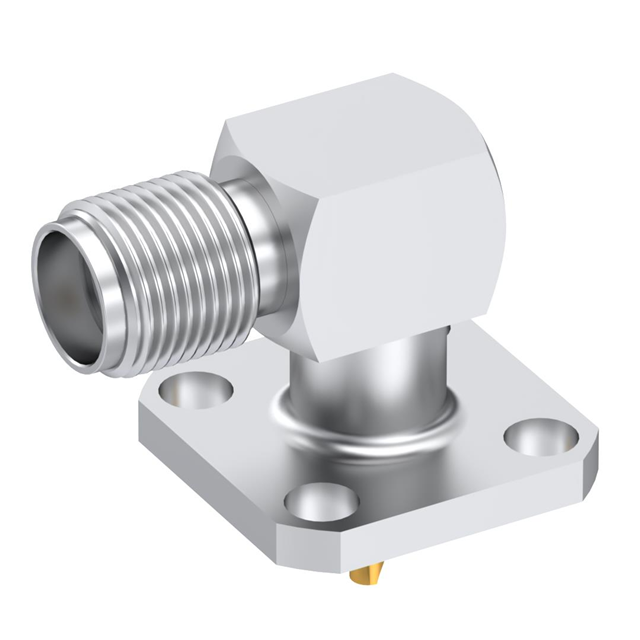

SMA / RIGHT ANGLE JACK RECEPTACL
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Dielectric Material | Body Material | Mating Cycles | Fastening Type | Mounting Type | Impedance | Center Contact Material | Number of Ports | Features | Mounting Feature | Contact Termination | Connector Type | Connector Style | Frequency - Max [Max] | Housing Color | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | 500 | Threaded | Panel Mount Right Angle | 50 Ohms | Beryllium Copper | 1 | Extended Insulation | Flange | Solder Cup | Female Socket Jack | SMA | 18 GHz | Silver | Solder |
