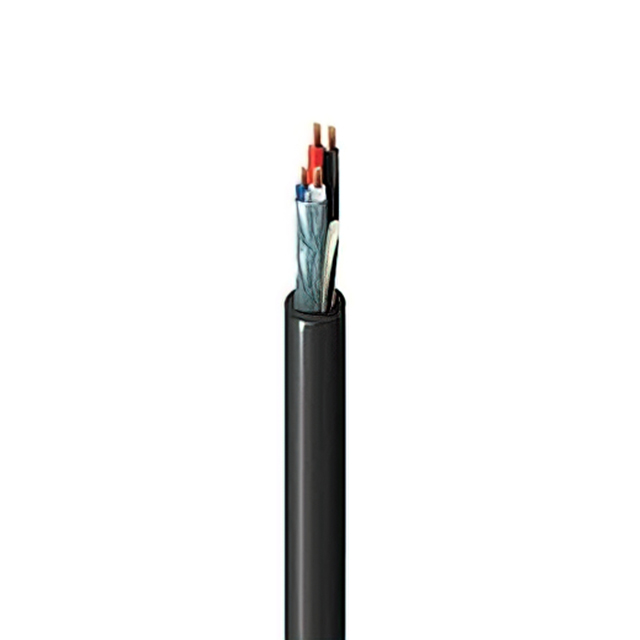

1502SB Series
Manufacturer: Belden Inc.
Beta
⌘K
2#18 PP + 2FS #22 FHDPE
| Part | Shield Material | Shield Coverage | Jacket Color | Length | Length | Cable Type | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Features | Operating Temperature [Max] | Operating Temperature [Min] | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Wire Gauge | Shield Type | Jacket (Insulation) Material | Conductor Insulation | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Polyester | 100 % | Black | 304.8 m | 1000 ft | Multi-Pair | 4 | 6.48 mm | 0.255 in | Copper Tinned | Control Marine | 30 AWG | 7 16 | Drain Wire Flame Retardant Rip Cord UV Resistant | 75 ░C | -30 ░C | 300 VDC | 1.143 mm | 0.045 in | 18 AWG 22 AWG | Foil | Low Smoke Zero Halogen (LSZH) | Foam Polyethylene (FPE) Polypropylene (PP) | UL Style CMG |
