G4A-1A Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

RELAY GEN PURPOSE SPST 20A 5V

Part	Coil Type	Coil Resistance	Contact Material	Coil Current	Must Release Voltage	Approval Agency	Termination Style	Contact Form	Contact Rating (Current)	Release Time	Relay Type	Mounting Type	Load - Max Switching	Coil Voltage	Switching Voltage	Must Operate Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Seal Rating	Operate Time	Termination Style

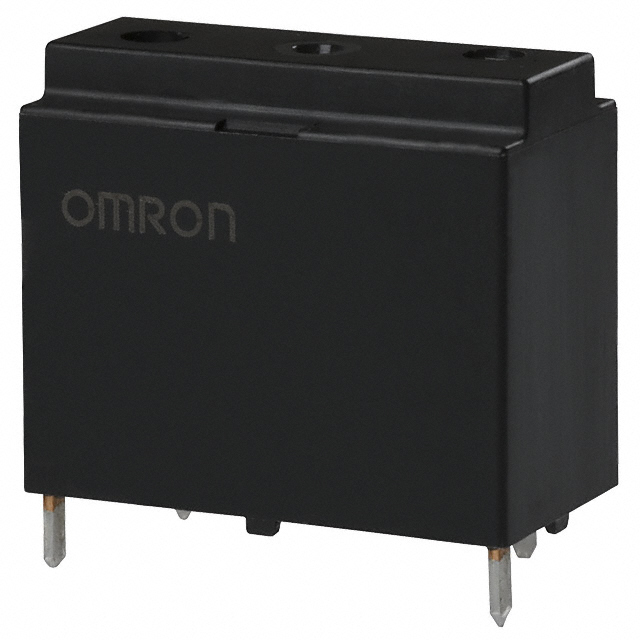

Omron Electronics Inc-EMC Div G4A-1A-PE DC5	Non Latching	27.8 Ohms	Cadmium Free Silver Alloy	180 mA	0.5 VDC	CQC CSA UR VDE	PC Pin	SPST-NO (1 Form A)	20 A	10 ms	General Purpose	Through Hole	5000 VA	5 VDC	250 VAC	3.5 VDC	-20 C	60 °C	Sealed - Flux Protection	20 ms
Omron Electronics Inc-EMC Div G4A-1A-PE-T130 DC12	Non Latching	160 Ohms	Cadmium Free Silver Alloy	75 mA	1.2 VDC	CQC CSA UR VDE	PC Pin	SPST-NO (1 Form A)	20 A	10 ms	General Purpose	Through Hole	5000 VA	12 VDC	250 VAC	8.4 VDC	-20 C	60 °C	Sealed - Flux Protection	20 ms
Omron Electronics Inc-EMC Div G4A-1A-E-CF DC12	Non Latching	160 Ohms	Cadmium Free Silver Alloy	75 mA	1.2 VDC	CQC CSA UR VDE	PC Pin Quick Connect	SPST-NO (1 Form A)	20 A	10 ms	General Purpose	Through Hole	5000 VA	12 VDC	250 VAC	8.4 VDC	-20 C	60 °C	Sealed - Flux Protection	20 ms	0.25 in
Omron Electronics Inc-EMC Div G4A-1A-E DC5	Non Latching	27.8 Ohms	Cadmium Free Silver Alloy	180 mA	0.5 VDC	CQC CSA UR VDE	PC Pin Quick Connect	SPST-NO (1 Form A)	20 A	10 ms	General Purpose	Through Hole	5000 VA	5 VDC	250 VAC	3.5 VDC	-20 C	60 °C	Sealed - Flux Protection	20 ms	0.25 in
Omron Electronics Inc-EMC Div G4A-1A-E DC24	Non Latching	640 Ohms	Cadmium Free Silver Alloy	37.5 mA	2.4 VDC	CQC CSA UR VDE	PC Pin Quick Connect	SPST-NO (1 Form A)	20 A	10 ms	General Purpose	Through Hole	5000 VA	24 VDC	250 VAC	16.8 VDC	-20 C	60 °C	Sealed - Flux Protection	20 ms	0.25 in
Omron Electronics Inc-EMC Div G4A-1A-PE DC24	Non Latching	640 Ohms	Cadmium Free Silver Alloy	37.5 mA	2.4 VDC	CQC CSA UR VDE	PC Pin	SPST-NO (1 Form A)	20 A	10 ms	General Purpose	Through Hole	5000 VA	24 VDC	250 VAC	16.8 VDC	-20 C	60 °C	Sealed - Flux Protection	20 ms

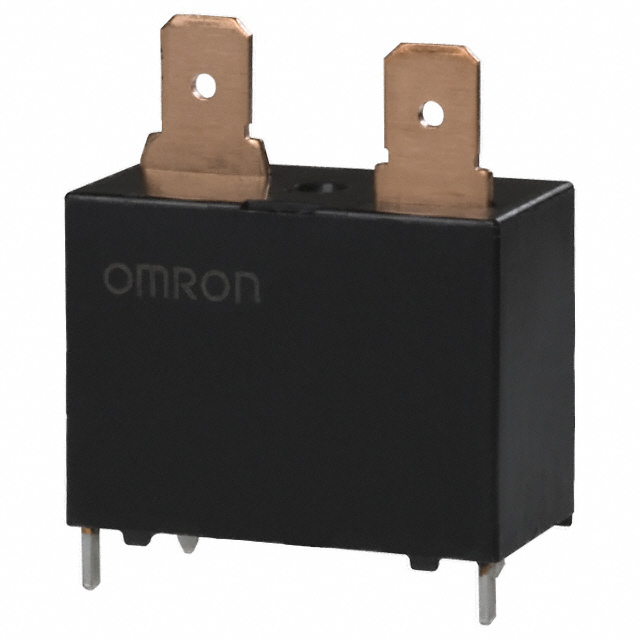

Omron Electronics Inc-EMC Div G4A-1A-E DC12	Non Latching	160 Ohms	Cadmium Free Silver Alloy	75 mA	1.2 VDC	CQC CSA UR VDE	PC Pin Quick Connect	SPST-NO (1 Form A)	20 A	10 ms	General Purpose	Through Hole	5000 VA	12 VDC	250 VAC	8.4 VDC	-20 C	60 °C	Sealed - Flux Protection	20 ms	0.25 in
Omron Electronics Inc-EMC Div G4A-1A-PE DC12	Non Latching	160 Ohms	Cadmium Free Silver Alloy	75 mA	1.2 VDC	CQC CSA UR VDE	PC Pin	SPST-NO (1 Form A)	20 A	10 ms	General Purpose	Through Hole	5000 VA	12 VDC	250 VAC	8.4 VDC	-20 C	60 °C	Sealed - Flux Protection	20 ms
