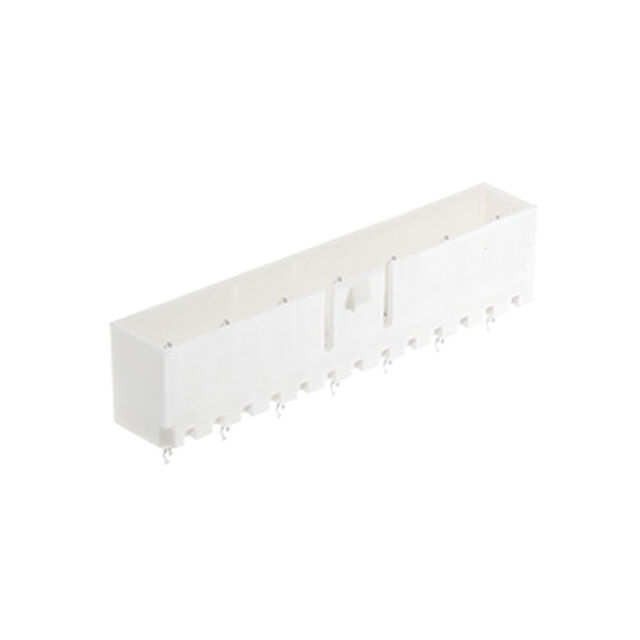

053265 Series
Manufacturer: Molex
Beta
⌘K
CONN HEADER VERT 7POS 3.5MM
| Part | Voltage Rating | Contact Material | Contact Finish - Post | Number of Positions | Termination | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Connector Type | Number of Rows | Fastening Type | Material Flammability Rating | Contact Shape | Number of Positions Loaded | Mounting Type | Insulation Height | Insulation Height | Insulation Material | Contact Type | Style | Shrouding | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | 250 VDC | Brass | Tin | 7 | Press-Fit Solder | Varies by Wire Gauge | 0.138 in | 3.5 mm | Header | 1 | Locking Ramp | UL94 V-0 | Square | 4 | Through Hole | 10.5 mm | 0.413 in | Polybutylene Terephthalate (PBTP) | Male Pin | Board to Cable/Wire | Shrouded - 4 Wall | -40 °C | 105 ░C | 3.5 mm | 0.138 in |
 Molex | 250 VDC | Brass | Tin | Press-Fit Solder | Varies by Wire Gauge | 0.138 in | 3.5 mm | Header | 1 | Locking Ramp | UL94 V-0 | Square | 3 | Through Hole | 10.5 mm | 0.413 in | Polybutylene Terephthalate (PBTP) | Male Pin | Board to Cable/Wire | Shrouded - 4 Wall | -40 °C | 105 ░C | 3.5 mm | 0.138 in | |
Molex | 250 VDC | Brass | Tin | 13 | Press-Fit Solder | Varies by Wire Gauge | 0.138 in | 3.5 mm | Header | 1 | Locking Ramp | UL94 V-0 | Square | 7 | Through Hole | 10.5 mm | 0.413 in | Polybutylene Terephthalate (PBTP) | Male Pin | Board to Cable/Wire | Shrouded - 4 Wall | -40 °C | 105 ░C | 3.5 mm | 0.138 in |
