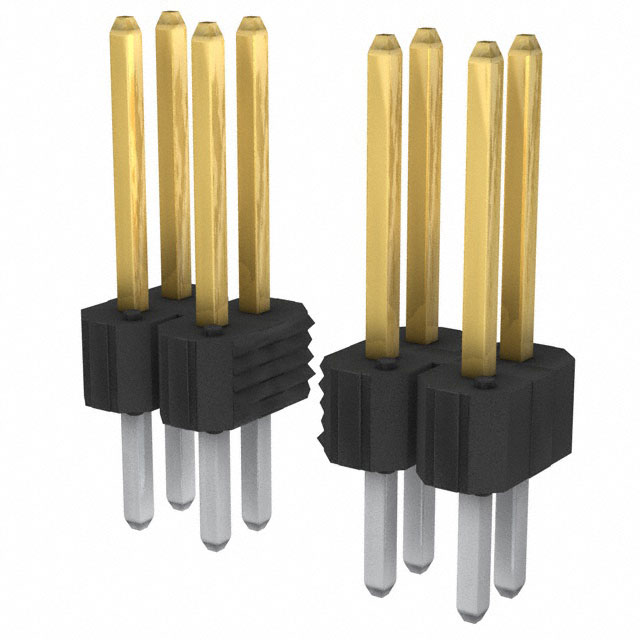

93216 Series

Catalog

CONN HEADER VERT 22POS 2.54MM

Part	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Fastening Type	Number of Positions Loaded	Number of Positions	Number of Rows	Contact Type	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Connector Type	Contact Finish - Post	Contact Material	Termination	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Mounting Type	Shrouding	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Finish - Mating
Amphenol ICC (FCI) 93216-422HLF	Black	2.54 çm	100 çin	Square	Push-Pull	All	22 positions	2	Male Pin	0.1 in	2.54 mm	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Tin	Phosphor Bronze	Solder	UL94 V-0	3.94 mm	0.155 "	14.55 mm	0.573 in	Through Hole	Unshrouded	0.318 "	8.08 mm
Amphenol ICC (FCI) 93216-456HLF	Black	2.54 çm	100 çin	Square	Push-Pull	All	56	2	Male Pin	0.1 in	2.54 mm	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Tin	Phosphor Bronze	Solder	UL94 V-0	3.94 mm	0.155 "	14.55 mm	0.573 in	Through Hole	Unshrouded	0.318 "	8.08 mm
Amphenol ICC (FCI) 93216-172H	Black	0.76 Ám	30 Áin	Square	Push-Pull	All	72	2	Male Pin	0.1 in	2.54 mm	2.54 mm	0.1 in	0.1 in	2.54 mm	Header		Phosphor Bronze	Solder	UL94 V-0	3.94 mm	0.155 "	14.55 mm	0.573 in	Through Hole	Unshrouded	0.318 "	8.08 mm	Gold or Gold GXT™
Amphenol ICC (FCI) 93216-450HLF	Black	2.54 çm	100 çin	Square	Push-Pull	All	50	2	Male Pin	0.1 in	2.54 mm	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Tin	Phosphor Bronze	Solder	UL94 V-0	3.94 mm	0.155 "	14.55 mm	0.573 in	Through Hole	Unshrouded	0.318 "	8.08 mm
Amphenol ICC (FCI) 93216-412HLF	Black	2.54 çm	100 çin	Square	Push-Pull	All	12	2	Male Pin	0.1 in	2.54 mm	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Tin	Phosphor Bronze	Solder	UL94 V-0	3.94 mm	0.155 "	14.55 mm	0.573 in	Through Hole	Unshrouded	0.318 "	8.08 mm
Amphenol ICC (FCI) 93216-426HLF	Black	2.54 çm	100 çin	Square	Push-Pull	All	26	2	Male Pin	0.1 in	2.54 mm	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Tin	Phosphor Bronze	Solder	UL94 V-0	3.94 mm	0.155 "	14.55 mm	0.573 in	Through Hole	Unshrouded	0.318 "	8.08 mm
Amphenol ICC (FCI) 93216-150HLF	Black	0.76 Ám	30 Áin	Square	Push-Pull	All	50	2	Male Pin	0.1 in	2.54 mm	2.54 mm	0.1 in	0.1 in	2.54 mm	Header		Phosphor Bronze	Solder	UL94 V-0	3.94 mm	0.155 "	14.55 mm	0.573 in	Through Hole	Unshrouded	0.318 "	8.08 mm	Gold or Gold GXT™
