R3G280 Series

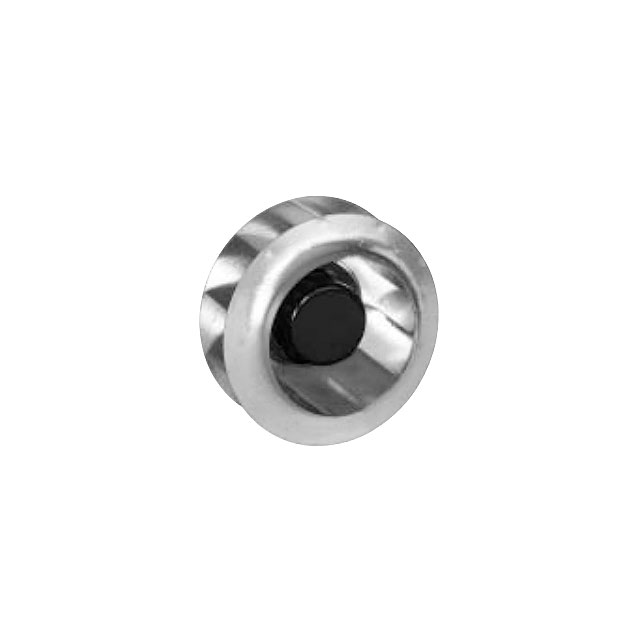

Blowers & Centrifugal Fans EC Backward-Curved Motorized Impeller, 280mm, 48VAC
Manufacturer: ebm-papst Inc.
Catalog
Blowers & Centrifugal Fans EC Backward-Curved Motorized Impeller, 280mm, 48VAC
Beta
⌘K
Blowers & Centrifugal Fans EC Backward-Curved Motorized Impeller, 280mm, 48VAC
Blowers & Centrifugal Fans EC Backward-Curved Motorized Impeller, 280mm, 48VAC
Blowers & Centrifugal Fans EC Backward-Curved Motorized Impeller, 280mm, 48VAC
| Part | Size / Dimension | Size / Dimension [diameter] | Fan Type | Current Rating (Amps) | Material - Blade | Material - Frame | Voltage Range [Max] | Voltage Range [Min] | RPM | Ingress Protection | Voltage - Rated | Width [y] | Bearing Type | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Approval Agency | Air Flow | Air Flow | Features | Power (Watts) | Static Pressure | Static Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Round | 280 mm | Motorized Impellers | ||||||||||||||||||||||
 ebm-papst Inc. | Round | 281 mm | Motorized Impellers | 2.8 A | Steel | Aluminum | 277 VAC | 200 VAC | 2600 RPM | IP54 - Dust Protected Water Resistant | 230 VAC | 173.7 mm | Ball | 40 °C | -25 °C | -25 °C | 40 °C | 3 Wire Leads with Ferrules 5 Wire Leads with Ferrules | CCC CE CSA EAC UL VDE | 26.55 m³/min | 948.3 CFM | Alarm PWM Control Thermal Overload Protector (TOP) | 455 W | ||
ebm-papst Inc. | Round | 281 mm | Motorized Impellers | 2.85 A | Steel | Aluminum | 57 VDC | 36 VDC | 2000 RPM | IP42 | 48 VDC | 121 mm | Ball | 60 °C | -25 °C | 4 Wire Leads | CCC CE CSA EAC UL | 20.94 m³/min | 748 CFM | PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP) | 135 W | 0.542 in H2O | 135 Pa |
