AB-FA024 Series

Catalog

LED MOD AB-FA UVA LNR STRP

Part	Viewing Angle	Current - Max [Max]	Wavelength	Wavelength [Min]	Wavelength [Max]	Configuration	Voltage - Forward (Vf) (Typ)	Lens Type	Color	Current - Test	Type	Temperature - Test	Size / Dimension [x]	Size / Dimension [y]	Features	Height [z]	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Size / Dimension

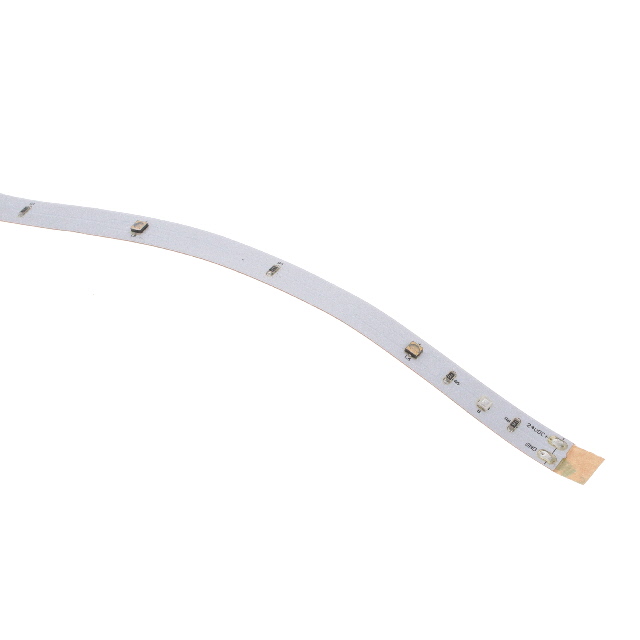

American Bright Optoelectronics Corporation AB-FA024UC-19700-XA2	120 °	625 mA	275 nm	272 nm	278 nm	Linear Light Strip Flexible	24 V	Flat	UltraViolet	125 mA	LED Module	25 °C	5000 mm	10 mm	IP20

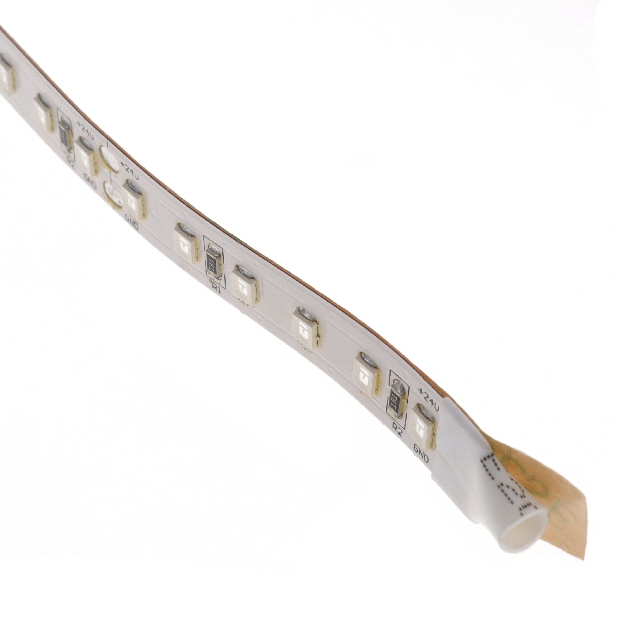

American Bright Optoelectronics Corporation AB-FA024BL-19700-XA1	120 °		470 nm			Linear Light Strip Flexible	24 V	Flat	Blue	330 mA	LED Module	25 °C	5000 mm	8 mm	IP20	1.6 mm	144 lm	19 lm/W	50.00mm L per Segment

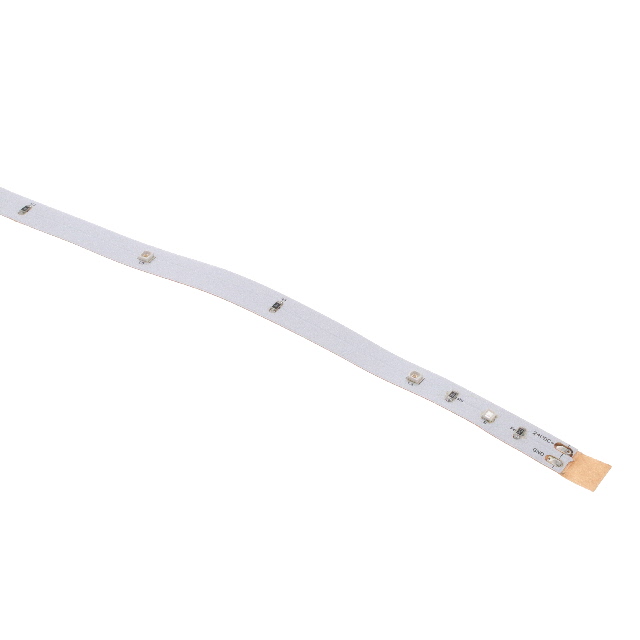

American Bright Optoelectronics Corporation AB-FA024UC-19700-XA1	125 °	525 mA	275 nm	272 nm	278 nm	Linear Light Strip Flexible	24 V	Flat	UltraViolet	105 mA	LED Module	25 °C	5000 mm	10 mm	IP20
