RS60RB Series

Manufacturer: OptiFuse

Catalog

PTC RESET FUSE 60V 750MA RADIAL

Part	Approval Agency	Current - Hold (Ih) (Max) [Max]	Lead Spacing	Lead Spacing	Package / Case	Type	Time to Trip	Current - Max [Max]	Voltage - Max [Max]	Resistance - Initial (Ri) (Min) [Min]	Mounting Type	Current - Trip (It)	Resistance - Post Trip (R1) (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [custom]	Size / Dimension [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [z]	Size / Dimension [z]

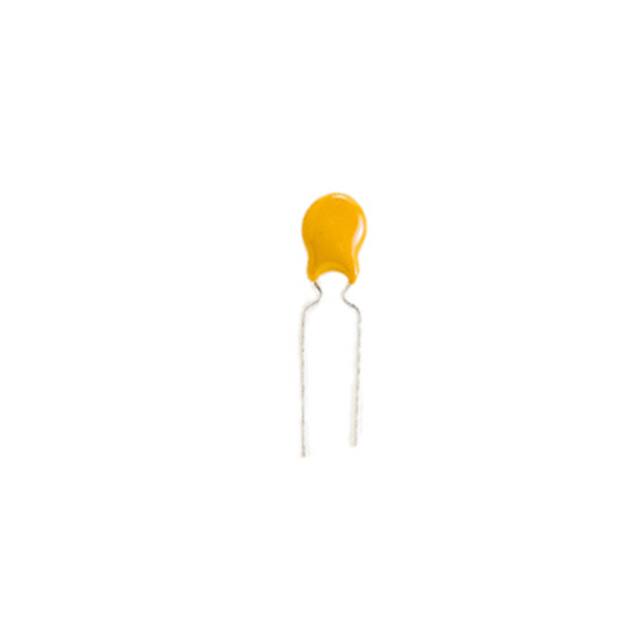

OptiFuse RS60RB-075	cUL TUV UL	750 mA	0.201 in	5.1 mm	Disc Radial	Polymeric	6.3 s	40 A	60 V	250 mOhms	Through Hole	1.5 A	600 mOhms	0.409 in	10.4 mm	0.122 in	3.1 mm	85 °C	-40 C	0.598 in	15.2 mm
OptiFuse RS60RB-050	cUL TUV UL	500 mA	0.201 in	5.1 mm	Disc Radial	Polymeric	4 s	40 A	60 V		Through Hole	1 A	1.17 Ohms	0.311 in	7.9 mm			85 °C	-40 C			0.539 in	13.7 mm	0.122 in	3.1 mm
OptiFuse RS60RB-025	cUL TUV UL	250 mA	0.201 in	5.1 mm	Disc Radial	Polymeric	2.5 s	40 A	60 V	1.25 Ohms	Through Hole	500 mA	3 Ohms					85 °C	-40 C	0.5 in	12.7 mm
