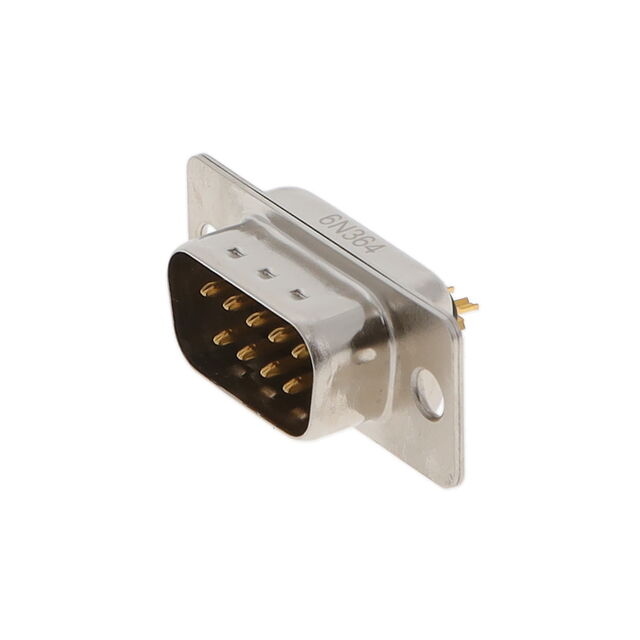

DE-9PF Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN D-SUB PLUG 9POS SLDR CUP
| Part | Contact Material | Dielectric Material | Contact Form | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Color | Connector Type | Number of Rows [custom] | Connector Style | Contact Type | Number of Positions | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish | Material Flammability Rating | Mounting Type | Current Rating (Amps) | Shell Material, Finish | Features | Flange Feature | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | Stamped | -55 C | 105 ░C | 20 AWG | Black | Plug Male Pins | 2 | D-Sub | Signal | 9 | 1 | DE E | Gold | UL94 V-0 | Free Hanging (In-Line) | 5 A | Nickel Plated Steel | Grounding Indents Shielded | Housing/Shell (Unthreaded) | |
 JAE Electronics | Copper Alloy | Polybutylene Terephthalate (PBT) | -55 C | 105 ░C | Plug Male Pins | 2 | D-Sub | Signal | 9 | 1 | DE E | Gold | UL94 V-0 | Through Hole | 5 A | Nickel Plated Steel | Grounding Indents | Housing/Shell (Unthreaded) | Solder |
