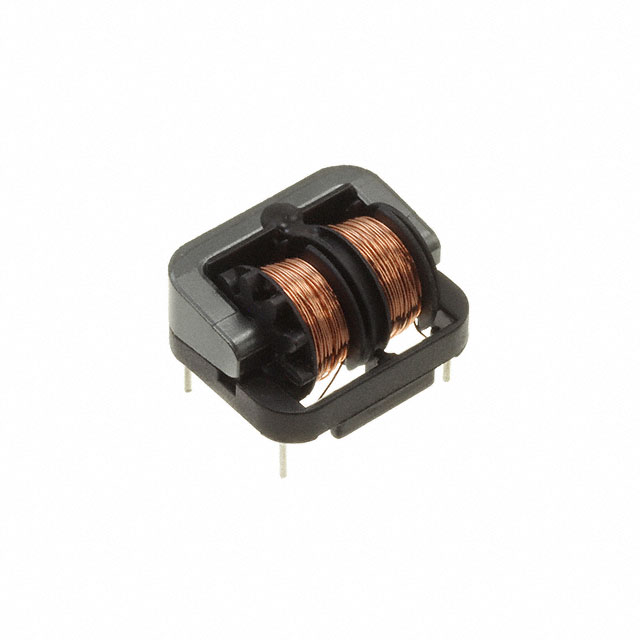

SSR10H Series
Manufacturer: KEMET
Beta
⌘K
COMMON MODE FILTER, 14MH, 1.4A ROHS COMPLIANT: YES
| Part | Number of Lines | DC Resistance (DCR) (Max) [Max] | Current Rating (Max) [Max] | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Filter Type | Mounting Type | Package / Case | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Inductance @ Frequency | Height (Max) [z] | Height (Max) [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 2 | 400 mOhm | 1.4 A | 250 V | 120 °C | -25 °C | Power Line | Through Hole | Vertical 4 PC Pin | 18 mm | 0.866 " | 0.709 in | 22 mm | 10 kHz 14 mH | 0.531 in | 13.5 mm |
 KEMET | 2 | 900 mOhm | 700 mA | 250 V | 120 °C | -25 °C | Through Hole | Vertical 4 PC Pin | 16 mm | 0.866 " | 0.63 " | 22 mm | 33 mH | 0.531 in | 13.5 mm | |
KEMET | 2 | 370 mOhm | 1.1 A | 250 V | 120 °C | -25 °C | Through Hole | Vertical 4 PC Pin | 16 mm | 0.866 " | 0.63 " | 22 mm | 10 kHz 14 mH | 0.531 in | 13.5 mm | |
KEMET | 2 | 60 mOhm | 3 A | 250 V | 120 °C | -25 °C | Through Hole | Vertical 4 PC Pin | 16 mm | 0.866 " | 0.63 " | 22 mm | 1.6 mH | 0.531 in | 13.5 mm | |
 KEMET | 2 | 270 mOhm | 1.3 A | 250 V | 120 °C | -25 °C | Through Hole | Vertical 4 PC Pin | 16 mm | 0.866 " | 0.63 " | 22 mm | 9.7 mH | 0.531 in | 13.5 mm |
