98464 Series

Catalog

CONN HEADER R/A 22POS 2MM

Part	Features	Insulation Height	Insulation Height	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Number of Positions	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Insulation Material	Connector Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Mating	Style	Contact Shape	Number of Rows	Termination	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Mounting Type	Contact Material	Contact Type	Shrouding	Number of Positions Loaded	Insulation Color	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol ICC (FCI) 98464-F61-22ULF	Keying Slot	0.24 in	6.1 mm	Tin	2.5 mm	0.098 in	Flash	22 positions	UL94 V-0	0.079 in	2 mm	Latch Holder	Thermoplastic	Header	0.079 in	2 mm	Gold	Board to Board Cable	Square	2	Solder	2 A	2 çm	78.7 çin	4 mm	0.157 in	Through Hole Right Angle	Copper Alloy	Male Pin	Shrouded - 4 Wall	All	Cream	200 V
Amphenol ICC (FCI) 98464-F61-18LF	Keying Slot	0.24 in	6.1 mm	Tin	2.5 mm	0.098 in	Flash	18	UL94 V-0	0.079 in	2 mm	Latch Holder	Thermoplastic	Header	0.079 in	2 mm	Gold	Board to Board Cable	Square	2	Solder	2 A	2 çm	78.7 çin	4 mm	0.157 in	Through Hole Right Angle	Copper Alloy	Male Pin	Shrouded - 4 Wall	All	Cream	200 V
Amphenol ICC (FCI) 98464-G61-42LF	Keying Slot	0.24 in	6.1 mm	Tin	2.5 mm	0.098 in		42	UL94 V-0	0.079 in	2 mm	Latch Holder	Thermoplastic	Header	0.079 in	2 mm	Gold GXT™	Board to Board Cable	Square	2	Solder	2 A	2 çm	78.7 çin	4 mm	0.157 in	Through Hole Right Angle	Copper Alloy	Male Pin	Shrouded - 4 Wall	All	Cream	200 V	30 Áin	0.76 Ám
Amphenol ICC (FCI) 98464-G61-28ULF	Keying Slot	0.24 in	6.1 mm	Tin	2.5 mm	0.098 in		28	UL94 V-0	0.079 in	2 mm	Latch Holder	Thermoplastic	Header	0.079 in	2 mm	Gold GXT™	Board to Board Cable	Square	2	Solder	2 A	2 çm	78.7 çin	4 mm	0.157 in	Through Hole Right Angle	Copper Alloy	Male Pin	Shrouded - 4 Wall	All	Cream	200 V	30 Áin	0.76 Ám
Amphenol ICC (FCI) 98464-F61-04LF	Keying Slot	0.24 in	6.1 mm	Tin	2.5 mm	0.098 in	Flash	4	UL94 V-0	0.079 in	2 mm	Latch Holder	Thermoplastic	Header	0.079 in	2 mm	Gold	Board to Board Cable	Square	2	Solder	2 A	2 çm	78.7 çin	4 mm	0.157 in	Through Hole Right Angle	Copper Alloy	Male Pin	Shrouded - 4 Wall	All	Cream	200 V
Amphenol ICC (FCI) 98464-G61-30ULF	Keying Slot	0.24 in	6.1 mm	Tin	2.5 mm	0.098 in		30	UL94 V-0	0.079 in	2 mm	Latch Holder	Thermoplastic	Header	0.079 in	2 mm	Gold GXT™	Board to Board Cable	Square	2	Solder	2 A	2 çm	78.7 çin	4 mm	0.157 in	Through Hole Right Angle	Copper Alloy	Male Pin	Shrouded - 4 Wall	All	Cream	200 V	30 Áin	0.76 Ám

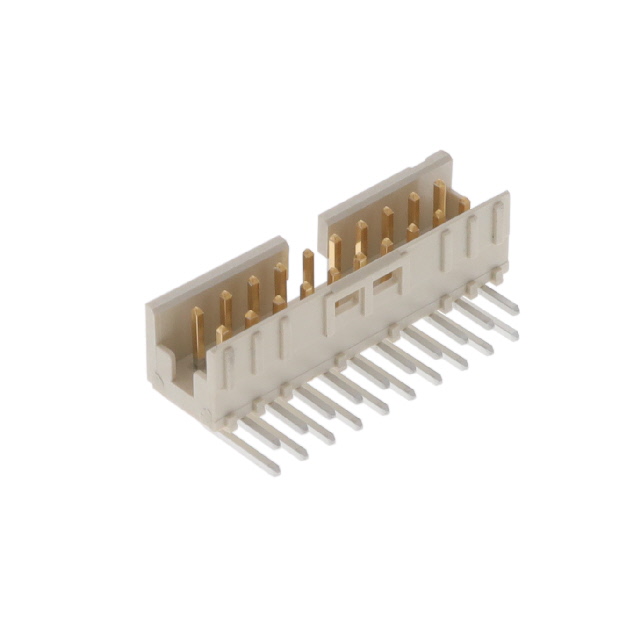

Amphenol ICC (FCI) 98464-S61-20ULF	Keying Slot	0.24 in	6.1 mm	Tin	2.5 mm	0.098 in		20	UL94 V-0	0.079 in	2 mm	Latch Holder	Thermoplastic	Header	0.079 in	2 mm	Gold GXT™	Board to Board Cable	Square	2	Solder	2 A	2 çm	78.7 çin	4 mm	0.157 in	Through Hole Right Angle	Copper Alloy	Male Pin	Shrouded - 4 Wall	All	Cream	200 V	15 µin	0.38 µm
Amphenol ICC (FCI) 98464-G61-06ULF	Keying Slot	0.24 in	6.1 mm	Tin	2.5 mm	0.098 in		6	UL94 V-0	0.079 in	2 mm	Latch Holder	Thermoplastic	Header	0.079 in	2 mm	Gold GXT™	Board to Board Cable	Square	2	Solder	2 A	2 çm	78.7 çin	4 mm	0.157 in	Through Hole Right Angle	Copper Alloy	Male Pin	Shrouded - 4 Wall	All	Cream	200 V	30 Áin	0.76 Ám
Amphenol ICC (FCI) 98464-S61-06ULF	Polarizing Key	0.24 in	6.1 mm	Tin	2.5 mm	0.098 in		6	UL94 V-0	0.079 in	2 mm	Push-Pull	Thermoplastic	Header	0.079 in	2 mm	Gold GXT™	Board to Cable/Wire	Square	2	Solder	2 A	2 çm	78.7 çin	4 mm	0.157 in	Through Hole Right Angle	Copper Alloy	Male Pin	Shrouded - 4 Wall	All	Cream	200 VAC	15 µin	0.38 µm	-55 °C	125 °C
Amphenol ICC (FCI) 98464-S61-22LF	Keying Slot	0.24 in	6.1 mm	Tin	2.5 mm	0.098 in		22 positions	UL94 V-0	0.079 in	2 mm	Latch Holder	Thermoplastic	Header	0.079 in	2 mm	Gold GXT™	Board to Board Cable	Square	2	Solder	2 A	2 çm	78.7 çin	4 mm	0.157 in	Through Hole Right Angle	Copper Alloy	Male Pin	Shrouded - 4 Wall	All	Cream	200 V	15 µin	0.38 µm
