3620-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

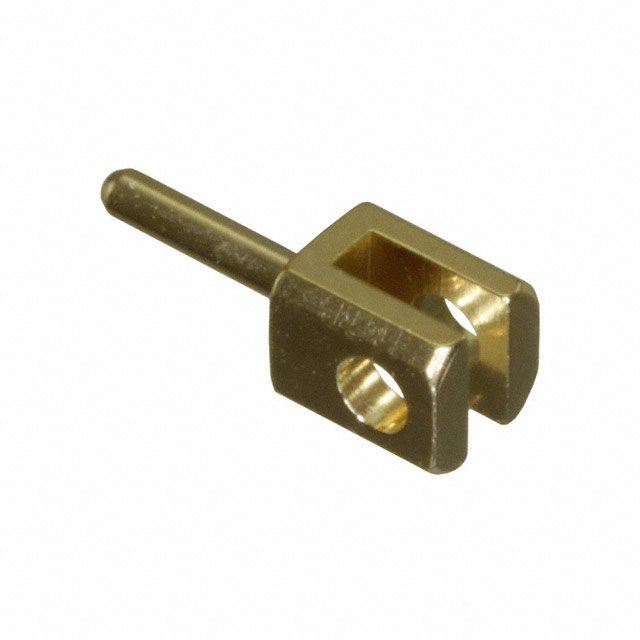

CONN PC PIN CIRC
| Part | Contact Finish Thickness | Contact Finish Thickness | Insulation | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Board Thickness | Board Thickness | Contact Finish | Contact Material | Termination | Length - Above Flange [x] | Length - Above Flange [x] | Terminal Type | Length - Overall [x] | Length - Overall [x] | Terminal Style | Mounting Type | Pin Size - Above Flange |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 200 Áin | 5.08 Ám | Non-Insulated | 10.16 mm | 0.4 in | 1.57 mm | 0.062 " | Tin | Brass Alloy | Rivet | 0.2 in | 5.08 mm | PC Pin | 0.356 in | 9.04 mm | Single End | Board Edge | |
Mill-Max Manufacturing Corp. | 20 µin | 0.51 µm | Non-Insulated | 0.04 in | 0.79 mm | 0.031 in | Gold | Brass Alloy | Rivet | 0.2 in | 5.08 mm | PC Pin | 0.356 in | 9.04 mm | Single End | Board Edge | 1.02 mm | |
 Mill-Max Manufacturing Corp. | 10 Áin | 0.25 Ám | Non-Insulated | 0.04 in | 0.79 mm | 0.031 in | Gold | Brass Alloy | Rivet | 0.2 in | 5.08 mm | PC Pin | 0.356 in | 9.04 mm | Single End | Board Edge | 1.02 mm |
