BD87522FJ-LB Series

EMARMOUR™, Excellent EMI Immunity Input/Output Rail-to-Rail High Output Drive CMOS Operational Amplifier

Catalog

EMARMOUR™, Excellent EMI Immunity Input/Output Rail-to-Rail High Output Drive CMOS Operational Amplifier

Part	Current - Output / Channel	Voltage - Input Offset	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Current - Supply	Package / Case	Package / Case [y]	Package / Case [x]	Voltage - Supply Span (Min) [Min]	Gain Bandwidth Product	Amplifier Type	Slew Rate	Current - Input Bias	Supplier Device Package	Voltage - Supply Span (Max) [Max]	Number of Circuits	Mounting Type

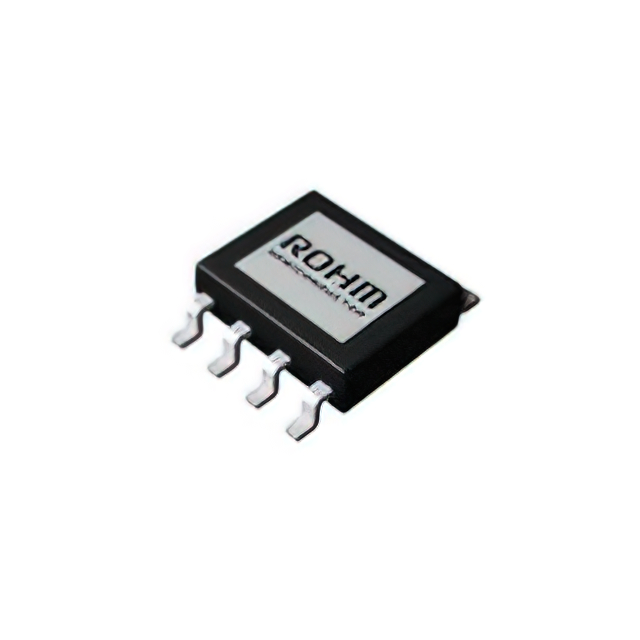

Rohm Semiconductor BD87522FJ-LBE2	16.5 mA	100 çV	125 °C	-40 °C	Push-Pull Rail-to-Rail	1.975 mA	8-SOIC	3.9 mm	0.154 in	4 V	2.3 MHz	Standard	2.4 V/µs	1 pA	8-SOP-J	15 V	2	Surface Mount

Catalog

EMARMOUR™, Excellent EMI Immunity Input/Output Rail-to-Rail High Output Drive CMOS Operational Amplifier

Key Features

• EMARMOURTMSeries, Rail-to-Rail Input/Output, Wide Operating Supply Voltage Range, High Slew Rate, High Output Drive

Description

This is the product guarantees long time support in industrial market. And it is suitable for usage of industrial applications. BD87522FJ-LB is Rail-to-Rail Input/Output CMOS operational amplifier. An operating voltage range is wide with 4V to 15V. This operational amplifier is the most suitable for industrial requirements such as sensor amplifier, battery-powered equipment and so on because it has features of high output drive. Furthermore, they have the advantage of EMI tolerance. It makes easier replacing with conventional products or simpler designing EMI.
