TPS7A8701 Series

Catalog

500-MA, LOW-NOISE, HIGH-PSRR, DUAL-CHANNEL ADJUSTABLE ULTRA-LOW-DROPOUT VOLTAGE REGULATOR

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Dropout (Max) [Max]	Supplier Device Package	Package / Case	Voltage - Output (Max) [Max]	Output Type	PSRR	Number of Regulators	Voltage - Output (Min/Fixed)	Current - Output	Output Configuration	Mounting Type	Current - Supply (Max) [Max]	Voltage - Input (Max) [Max]	Control Features	Supplied Contents	Board Type	Regulator Type	Voltage - Input [Min]	Voltage - Input [Max]	Contents	Channels per IC	Utilized IC / Part	Voltage - Output [Min]	Voltage - Output [Max]
Texas Instruments TPS7A8701RTJT	125 ¯C 125 °C	-40 °C -40 C	0.1 V	20-QFN (4x4)	20-WFQFN Exposed Pad	5.2 V	Adjustable	40 dB	2	0.8 V	500 mA	Positive	Surface Mount	4 mA	6.5 V	Enable
Texas Instruments TPS7A8701RTJR	125 °C	-40 C	0.1 V	20-QFN (4x4)	20-WFQFN Exposed Pad	5.2 V	Adjustable	40 dB	2	0.8 V	500 mA	Positive	Surface Mount	4 mA	6.5 V	Enable

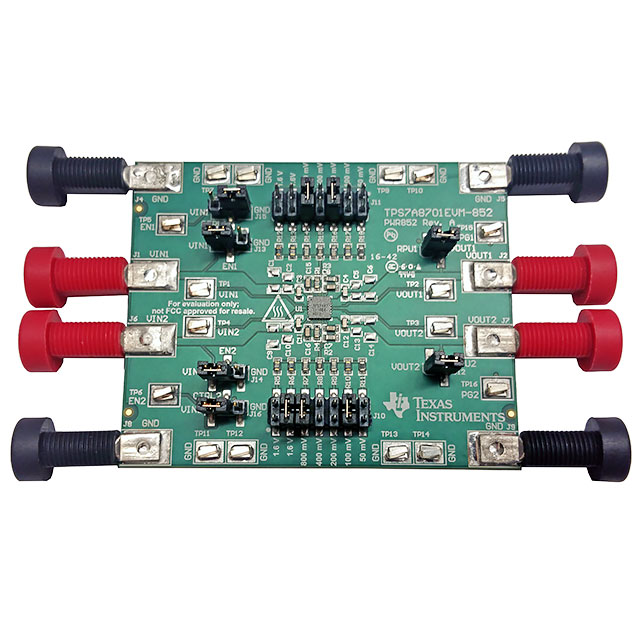

Texas Instruments TPS7A8701EVM-852											500 mA						Board(s)	Fully Populated	Positive Adjustable	1.4 V	6.5 V	Board(s)	2 - Dual	TPS7A87	0.8 V	5.2 V
