5ESH9 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 24V

Part	Actuator Material	Mechanical Life	Switch Travel	Actuator Height off PCB, Vertical [z]	Switch Function	Outline [x]	Outline [y]	Circuit	Termination Style	Illumination	Operating Force	Mounting Type	Actuator Orientation	Ingress Protection	Contact Rating @ Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Features	Actuator Type

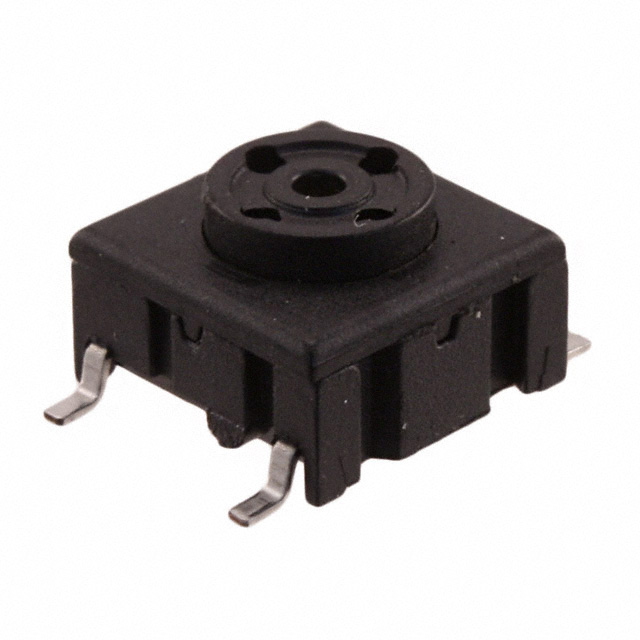

MEC Switches 5ESH935	Polyphenylene Sulfide (PPS)	10000000 Cycles	1 mm	6.4 mm	Off-Mom	10.1 mm	10.1 mm	SPST-NO	Gull Wing	Non-Illuminated	350 gf	Surface Mount	Top Actuated	IP67 - Dust Tight Waterproof	0.05 A 24 VDC	160 °C	-40 C	Sealed - Flux Protection	Plunger for Cap

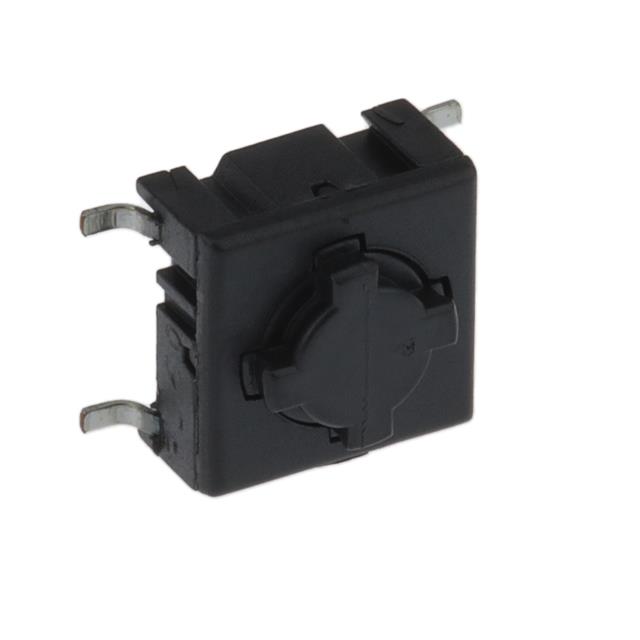

MEC Switches 5ESH965	Polyphenylene Sulfide (PPS)	10000000 Cycles	1 mm	6.4 mm	Off-Mom	10.1 mm	10.1 mm	SPST-NO	Gull Wing	Non-Illuminated	650 gf	Surface Mount	Top Actuated	IP67 - Dust Tight Waterproof	0.05 A 24 VDC	160 °C	-40 C	Sealed - Flux Protection	Plunger for Cap

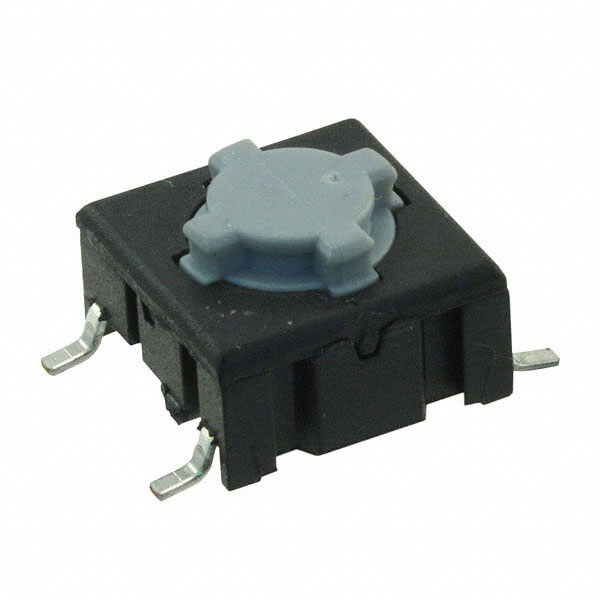

MEC Switches 5ESH920	Polyphenylene Sulfide (PPS)	10000000 Cycles	1 mm	6.4 mm	Off-Mom	10.1 mm	10.1 mm	SPST-NO	Gull Wing	Non-Illuminated	0.2 kgf	Surface Mount	Top Actuated	IP67 - Dust Tight Waterproof	0.05 A 24 VDC	160 °C	-40 C	Sealed - Flux Protection	Plunger for Cap

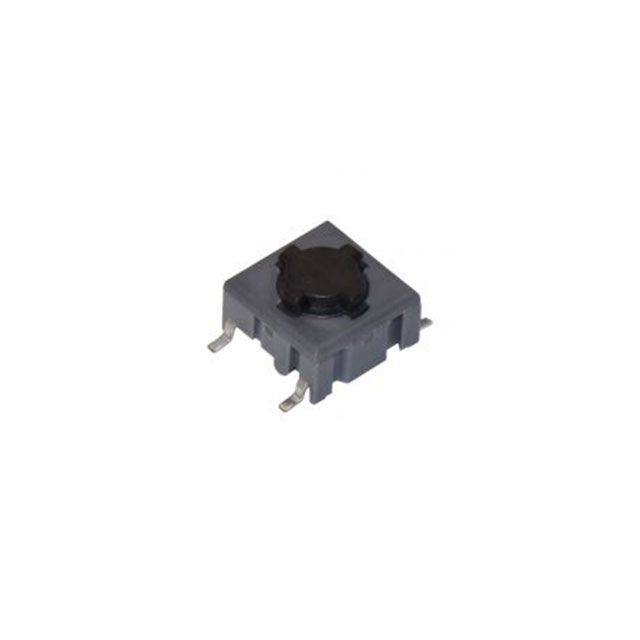

MEC Switches 5ESH935NCNO	Polyphenylene Sulfide (PPS)	1000000 Cycles	1 mm	6.4 mm	On-Mom	10.1 mm	10.1 mm	SPDT	Gull Wing	Non-Illuminated	350 gf	Surface Mount	Top Actuated	IP67 - Dust Tight Waterproof	0.05 A 24 VDC	160 °C	-40 C	Sealed - Flux Protection	Plunger for Cap
