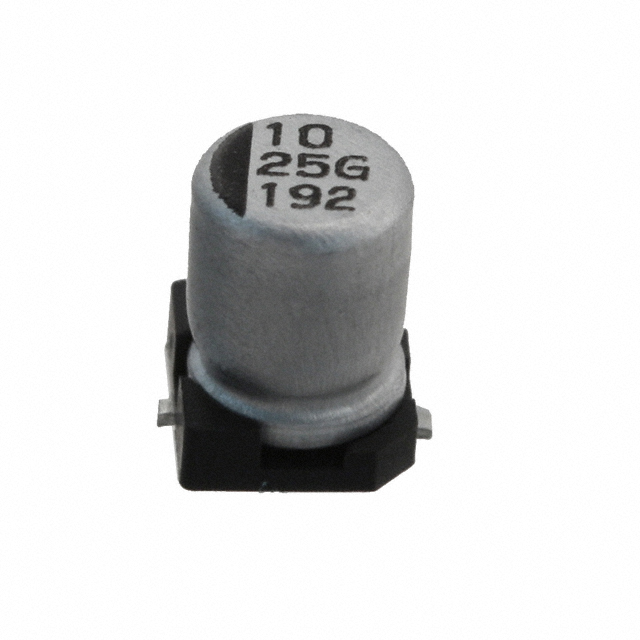

EDK106M Series

Manufacturer: KEMET

Catalog

SMD ALUMINUM ELECTROLYTIC CAPACITOR, RADIAL CAN - SMD, 10 ΜF, 50 V, 2000 HOURS @ 85°C, POLAR

Part	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Lifetime @ Temp.	Ripple Current @ High Frequency	Capacitance	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ripple Current @ Low Frequency	Tolerance	Voltage - Rated	Applications	Ratings	Surface Mount Land Size [y]	Surface Mount Land Size [x]
KEMET EDK106M050A9DAA	Surface Mount	Radial Can - SMD	85 °C	-40 C	2000 Hrs	33.75 mA	10 µF	0.209 in 5.3 mm	0.209 in 5.3 mm	Polar	0.197 in	5 mm	0.222 in	5.65 mm	27 mA	20 %	50 VDC	General Purpose
KEMET EDK106M100S9HAA	Surface Mount	Radial Can - SMD	85 °C	-40 C	2000 Hrs	62.5 mA	10 µF	6.6 mm	6.6 mm	Polar	0.248 "	6.3 mm	0.315 in	8 mm	50 mA	20 %	100 V	Automotive	AEC-Q200	0.26 in	0.26 in
KEMET EDK106M050S9DAA	Surface Mount	Radial Can - SMD	85 °C	-40 C	2000 Hrs	33.75 mA	10 µF	0.209 in 5.3 mm	0.209 in 5.3 mm	Polar	0.197 in	5 mm	0.222 in	5.65 mm	27 mA	20 %	50 VDC	Automotive	AEC-Q200
KEMET EDK106M050A9GAA	Surface Mount	Radial Can - SMD	85 °C	-40 C	2000 Hrs	43.75 mA	10 µF	7.8 mm	6.6 mm	Polar	0.248 "	6.3 mm	0.222 in	5.64 mm	35 mA	20 %	50 VDC	General Purpose		0.307 in	0.26 in
KEMET EDK106M035A9DAA	Surface Mount	Radial Can - SMD	85 °C	-40 C	2000 Hrs	37.5 mA	10 µF	6.5 mm	5.3 mm	Polar	0.197 in	5 mm	0.222 in	5.64 mm	30 mA	20 %	35 V	General Purpose		0.256 in	0.209 in
KEMET EDK106M035S9DAA	Surface Mount	Radial Can - SMD	85 °C	-40 C	2000 Hrs	37.5 mA	10 µF	0.209 in 5.3 mm	0.209 in 5.3 mm	Polar	0.197 in	5 mm	0.222 in	5.65 mm	30 mA	20 %	35 V	Automotive	AEC-Q200
KEMET EDK106M025S9DAA	Surface Mount	Radial Can - SMD	85 °C	-40 C	2000 Hrs	35 mA	10 µF	0.209 in 5.3 mm	0.209 in 5.3 mm	Polar	0.197 in	5 mm	0.222 in	5.65 mm	28 mA	20 %	25 VDC	Automotive	AEC-Q200
KEMET EDK106M100A9MAA	Surface Mount	Radial Can - SMD	85 °C	-40 C	2000 Hrs	68.75 mA	10 µF	8.3 mm	8.3 mm	Polar	0.315 in	8 mm	0.413 "	10.5 mm		20 %	100 V	General Purpose		0.327 in	0.327 in
KEMET EDK106M025A9BAA	Surface Mount	Radial Can - SMD	85 °C	-40 C	2000 Hrs	30 mA	10 µF			Polar	0.157 in	4 mm	0.217 "	5.5 mm	24 mA	20 %	25 VDC	General Purpose
