ERA.2E Series

Manufacturer: LEMO

Catalog

CONN CIRC RCPT 4P GOLD SLDR CUP

Part	Contact Material	Insert Material	Connector Type	Shell Size - Insert	Mounting Type	Number of Positions	Current Rating (Amps)	Color	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Orientation	Primary Material	Shell Finish	Ingress Protection	Shielding	Shell Material	Material Flammability Rating	Fastening Type	Contact Finish - Mating	Shell Size - Insert [custom]
LEMO ERA.2E.304.CLL	Brass Bronze	Polyetheretherketone (PEEK)	Receptacle Female Sockets and Male Pins	304	Panel Mount	4	10 A	Silver	200 °C	-55 C	Bulkhead - Rear Side Nut	Keyed	Metal	Chrome	IP66 IP68	Shielded	Brass	UL94 V-0	Push-Pull	Gold
LEMO ERA.2E.305.CLL	Brass Bronze	Polyetheretherketone (PEEK)	Receptacle Female Sockets and Male Pins	305	Panel Mount	5	13 A	Silver	200 °C	-55 C	Bulkhead - Rear Side Nut	Keyed	Metal	Chrome	IP66 IP68	Shielded	Brass	UL94 V-0	Push-Pull	Gold
LEMO ERA.2E.303.CLL	Brass Bronze	Polyetheretherketone (PEEK)	Receptacle Female Sockets and Male Pins	303	Panel Mount		15 A	Silver	200 °C	-55 C	Bulkhead - Rear Side Nut	Keyed	Metal	Chrome	IP66 IP68	Shielded	Brass	UL94 V-0	Push-Pull	Gold
LEMO ERA.2E.307.CLL	Brass Bronze	Polyetheretherketone (PEEK)	Receptacle Female Sockets and Male Pins		Panel Mount	7	9 A 12 Amps	Silver	200 °C	-55 C	Bulkhead - Rear Side Nut	Keyed	Metal	Chrome	IP66 IP68	Shielded	Brass	UL94 V-0	Push-Pull	Gold	307

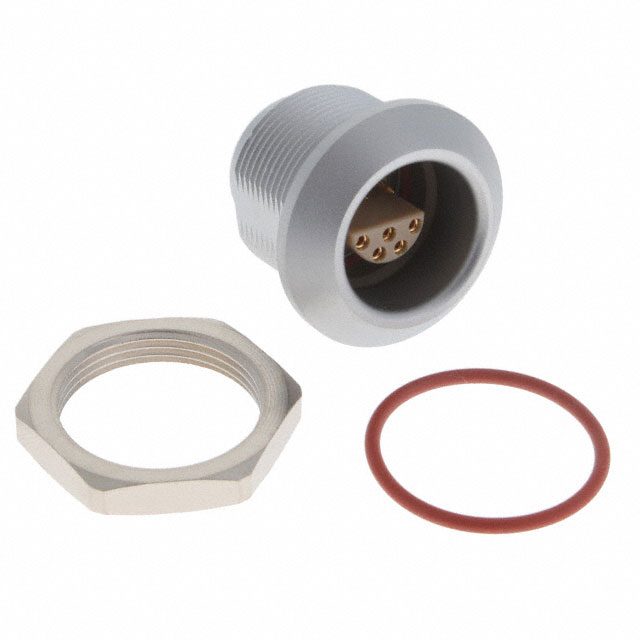

LEMO ERA.2E.310.CLL	Brass Bronze	Polyetheretherketone (PEEK)	Receptacle Female Sockets and Male Pins	310	Panel Mount	10	7 A	Silver	200 °C	-55 C	Bulkhead - Rear Side Nut	Keyed	Metal	Chrome	IP66 IP68	Shielded	Brass	UL94 V-0	Push-Pull	Gold
LEMO ERA.2E.308.CLL	Brass Bronze	Polyetheretherketone (PEEK)	Receptacle Female Sockets and Male Pins	308	Panel Mount	8	9 A	Silver	200 °C	-55 C	Bulkhead - Rear Side Nut	Keyed	Metal	Chrome	IP66 IP68	Shielded	Brass	UL94 V-0	Push-Pull	Gold
LEMO ERA.2E.140.CTA	Brass	Polytetrafluoroethylene (PTFE)	Receptacle Male Pins	140	Panel Mount	1	40 A	Silver	200 °C	-55 C	Bulkhead - Rear Side Nut	Keyed	Metal	Chrome	IP66 IP68	Shielded	Brass		Push-Pull	Gold
LEMO ERA.2E.140.CTL	Bronze	Polytetrafluoroethylene (PTFE)	Receptacle Female Sockets	140	Panel Mount	1	40 A	Silver	200 °C	-55 C	Bulkhead - Rear Side Nut	Keyed	Metal	Chrome	IP66 IP68	Shielded	Brass		Push-Pull	Gold
LEMO ERA.2E.702.CJL	Brass Bronze	Polyetheretherketone (PEEK)	Receptacle Female Sockets and Male Pins	702	Panel Mount		15 A	Silver	200 °C	-55 C	Bulkhead - Rear Side Nut	Keyed	Metal	Chrome	IP66 IP68	Shielded	Brass	UL94 V-0	Push-Pull	Gold
LEMO ERA.2E.302.CLL	Brass Bronze	Polyetheretherketone (PEEK)	Receptacle Female Sockets and Male Pins	302	Panel Mount	2	20 A	Silver	200 °C	-55 C	Bulkhead - Rear Side Nut	Keyed	Metal	Chrome	IP66 IP68	Shielded	Brass	UL94 V-0	Push-Pull	Gold
