84982 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

FFC / FPC BOARD CONNECTOR, 1 MM, 7 CONTACTS, RECEPTACLE, FPC SERIES, SURFACE MOUNT

Part	Housing Color	Connector/Contact Type	Number of Positions	Flat Flex Type	Pitch	Pitch	Height Above Board [z]	Height Above Board [z]	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Voltage Rating	Termination	FFC, FCB Thickness	Contact Material	Cable End Type	Mounting Type

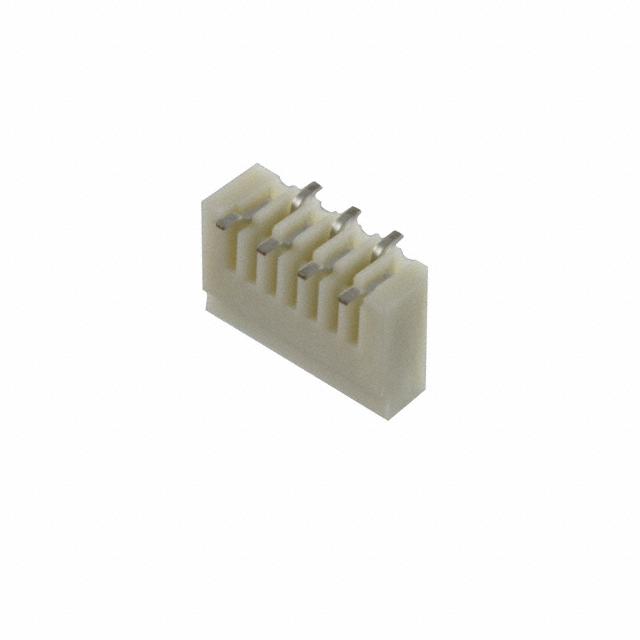

TE Connectivity AMP Connectors 84982-7	Beige	Contacts Vertical - 1 Sided	7	FFC FPC	1 mm	0.039 in	0.22 in	5.59 mm	Tin	85 °C	-20 ░C	Glass Filled Nylon Polyamide (PA)	125 VDC	Solder	0.3 mm	Phosphor Bronze	Straight	Surface Mount

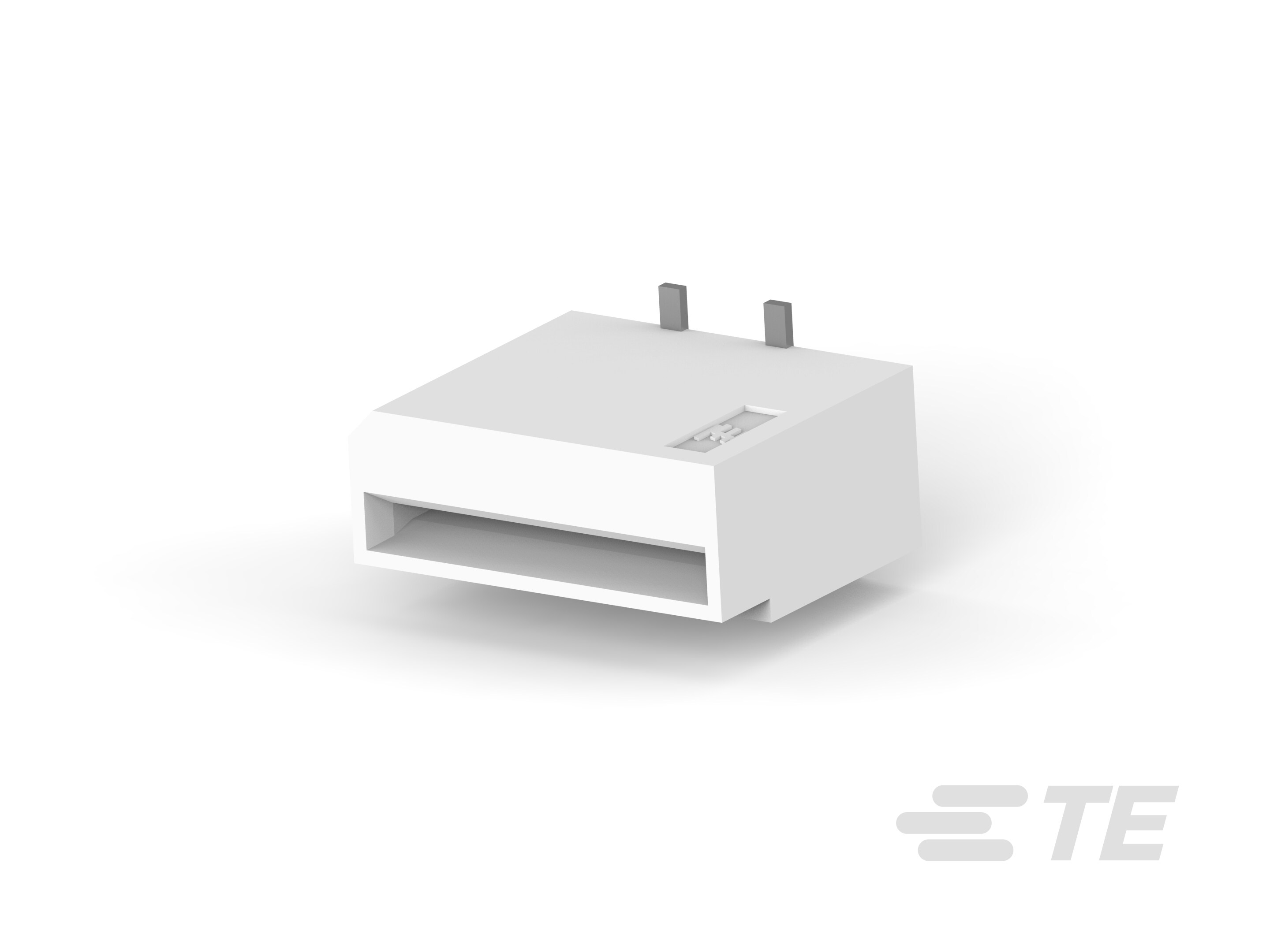

TE Connectivity AMP Connectors 84982-5	Beige	Contacts Vertical - 1 Sided	5	FFC FPC	1 mm	0.039 in	0.22 in	5.59 mm	Tin	85 °C	-20 ░C	Glass Filled Nylon Polyamide (PA)	125 VDC	Solder	0.3 mm	Phosphor Bronze	Straight	Surface Mount

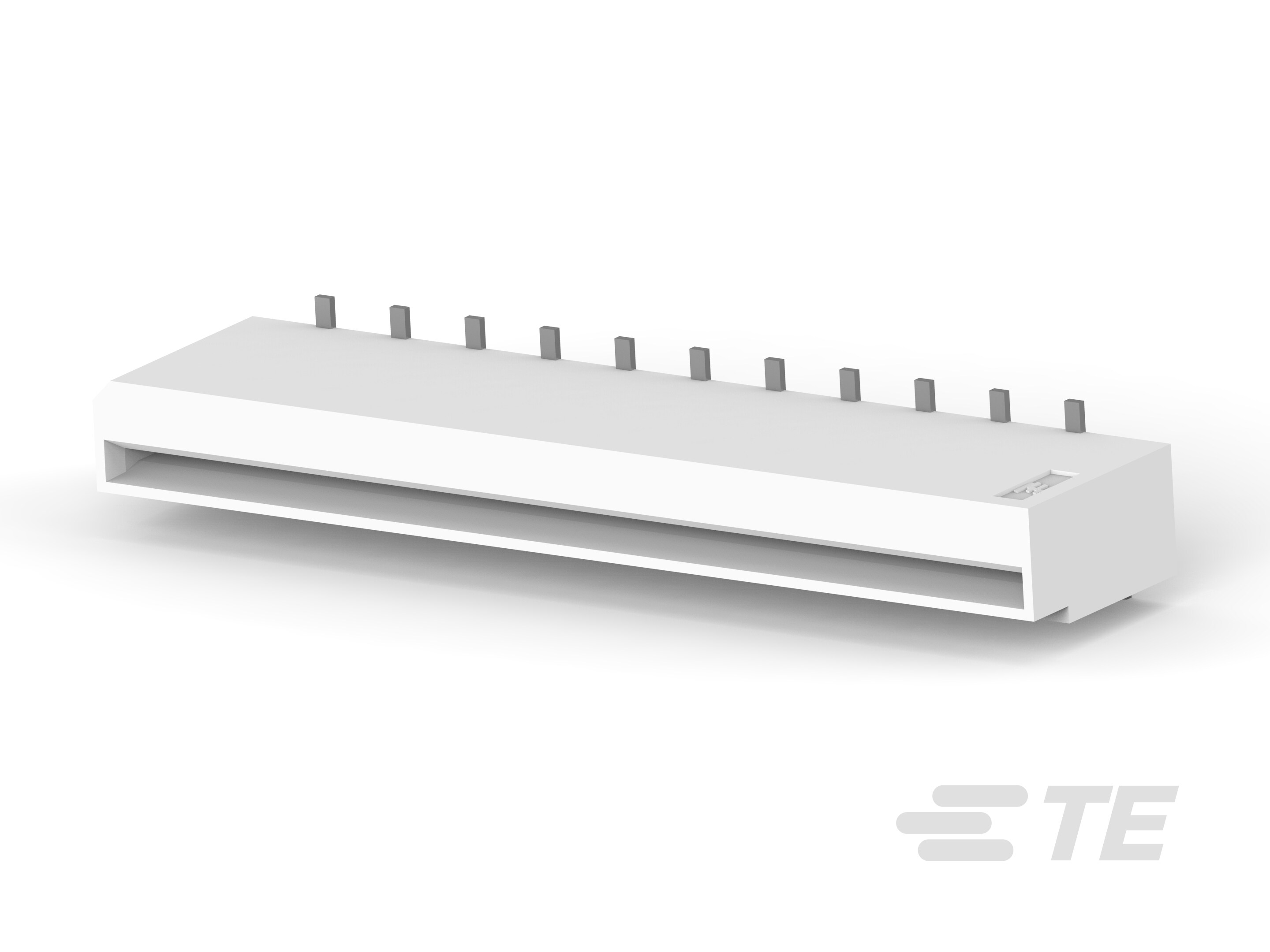

TE Connectivity AMP Connectors 2-84982-3	Beige	Contacts Vertical - 1 Sided	23	FFC FPC	1 mm	0.039 in	0.22 in	5.59 mm	Tin	85 °C	-20 ░C	Glass Filled Nylon Polyamide (PA)	125 VDC	Solder	0.3 mm	Phosphor Bronze	Straight	Surface Mount

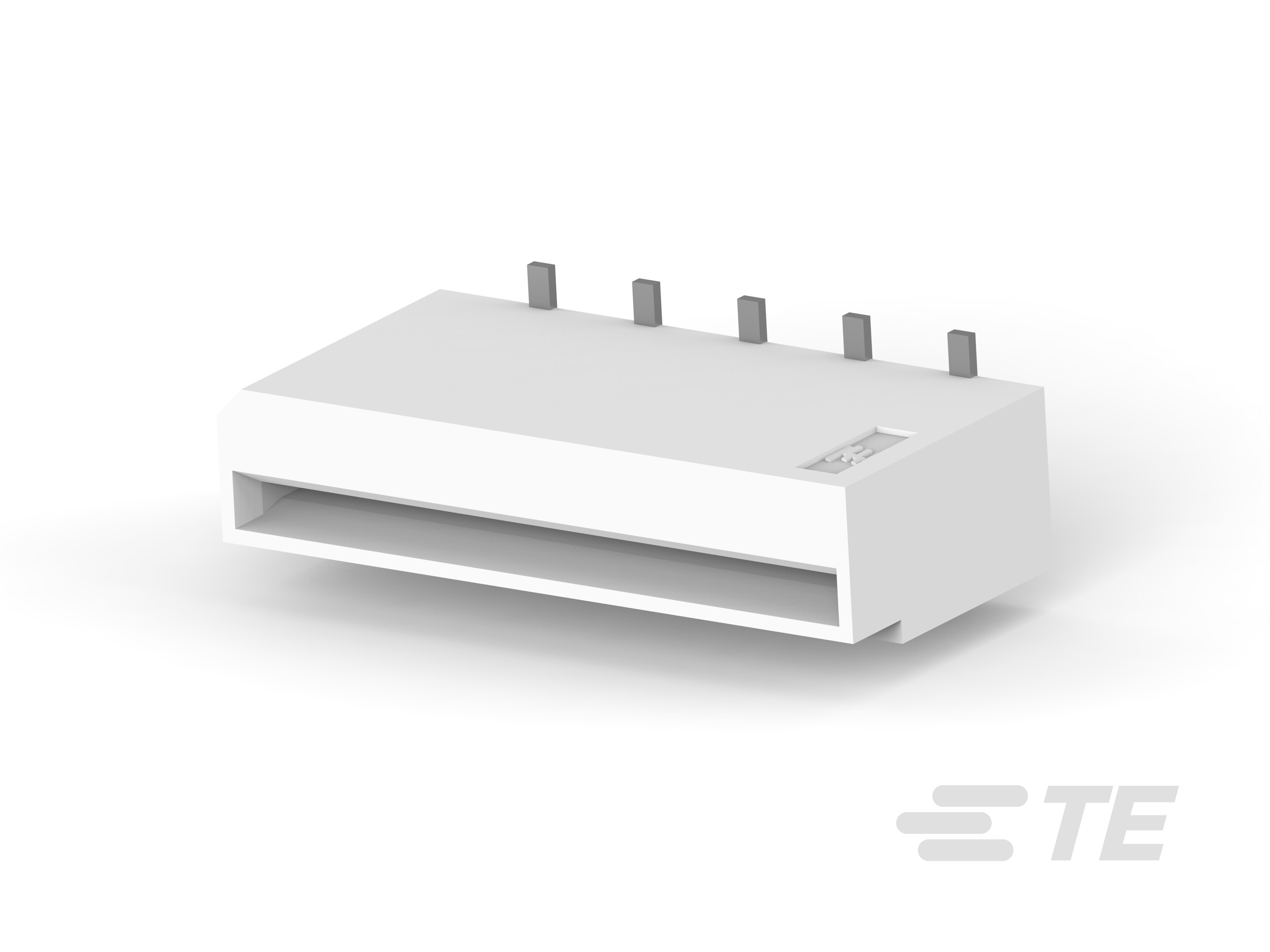

TE Connectivity AMP Connectors 1-84982-0	Beige	Contacts Vertical - 1 Sided	10	FFC FPC	1 mm	0.039 in	0.22 in	5.59 mm	Tin	85 °C	-20 ░C	Glass Filled Nylon Polyamide (PA)	125 VDC	Solder	0.3 mm	Phosphor Bronze	Straight	Surface Mount

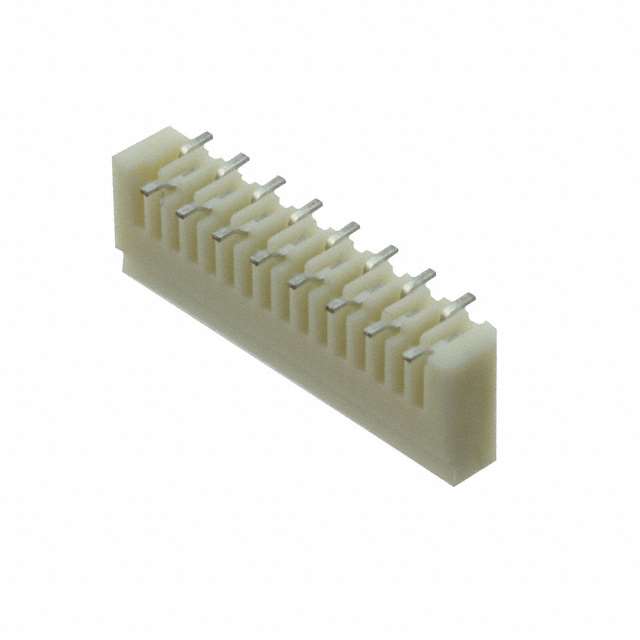

TE Connectivity AMP Connectors 1-84982-6	Beige	Contacts Vertical - 1 Sided	16	FFC FPC	1 mm	0.039 in	0.22 in	5.59 mm	Tin	85 °C	-20 ░C	Glass Filled Nylon Polyamide (PA)	125 VDC	Solder	0.3 mm	Phosphor Bronze	Straight	Surface Mount
TE Connectivity AMP Connectors 1-84982-4	Beige	Contacts Vertical - 1 Sided	14	FFC FPC	1 mm	0.039 in	0.22 in	5.59 mm	Tin	85 °C	-20 ░C	Glass Filled Nylon Polyamide (PA)	125 VDC	Solder	0.3 mm	Phosphor Bronze	Straight	Surface Mount

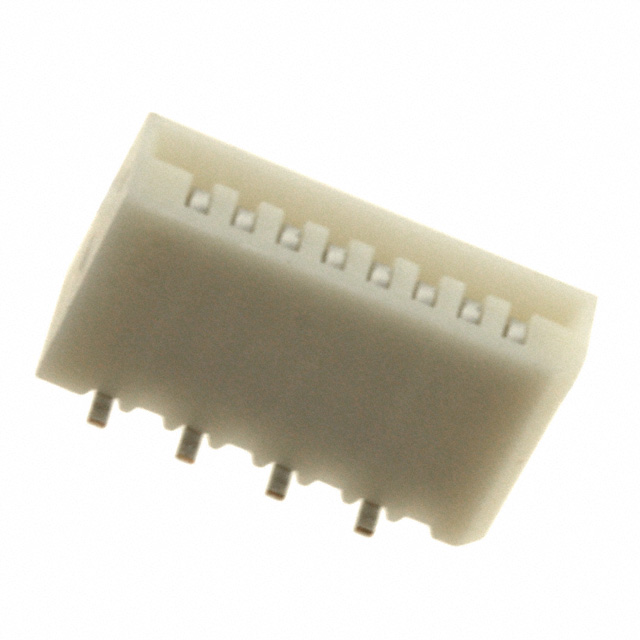

TE Connectivity AMP Connectors 84982-8	Beige	Contacts Vertical - 1 Sided	8	FFC FPC	1 mm	0.039 in	0.22 in	5.59 mm	Tin	85 °C	-20 ░C	Glass Filled Nylon Polyamide (PA)	125 VDC	Solder	0.3 mm	Phosphor Bronze	Straight	Surface Mount

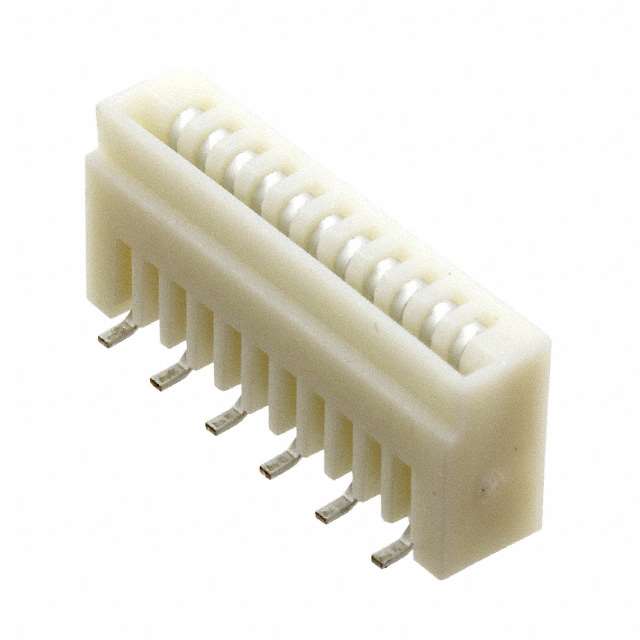

TE Connectivity AMP Connectors 1-84982-1	Beige	Contacts Vertical - 1 Sided	11	FFC FPC	1 mm	0.039 in	0.22 in	5.59 mm	Tin	85 °C	-20 ░C	Glass Filled Nylon Polyamide (PA)	125 VDC	Solder	0.3 mm	Phosphor Bronze	Straight	Surface Mount

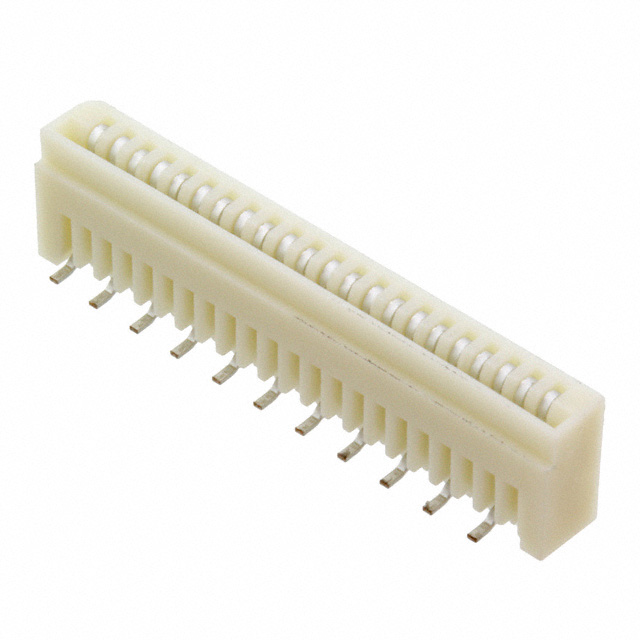

TE Connectivity AMP Connectors 2-84982-2	Beige	Contacts Vertical - 1 Sided	22	FFC FPC	1 mm	0.039 in	0.22 in	5.59 mm	Tin	85 °C	-20 ░C	Glass Filled Nylon Polyamide (PA)	125 VDC	Solder	0.3 mm	Phosphor Bronze	Straight	Surface Mount

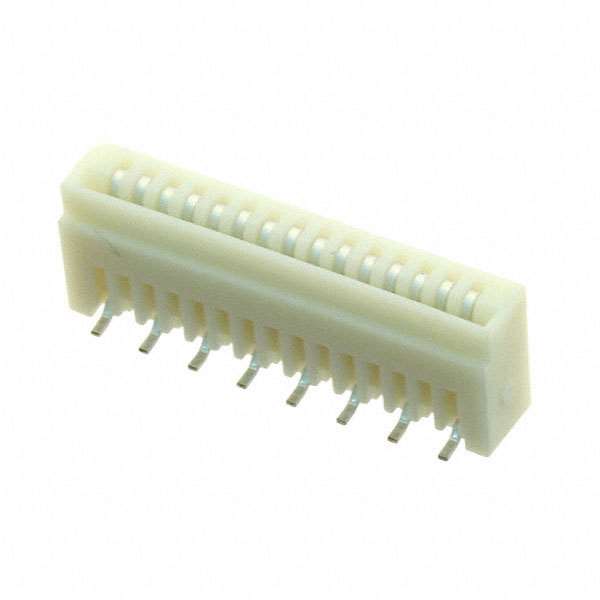

TE Connectivity AMP Connectors 1-84982-5	Beige	Contacts Vertical - 1 Sided	15	FFC FPC	1 mm	0.039 in	0.22 in	5.59 mm	Tin	85 °C	-20 ░C	Glass Filled Nylon Polyamide (PA)	125 VDC	Solder	0.3 mm	Phosphor Bronze	Straight	Surface Mount
