H3161 Series
Manufacturer: Harwin Inc.
Beta
⌘K

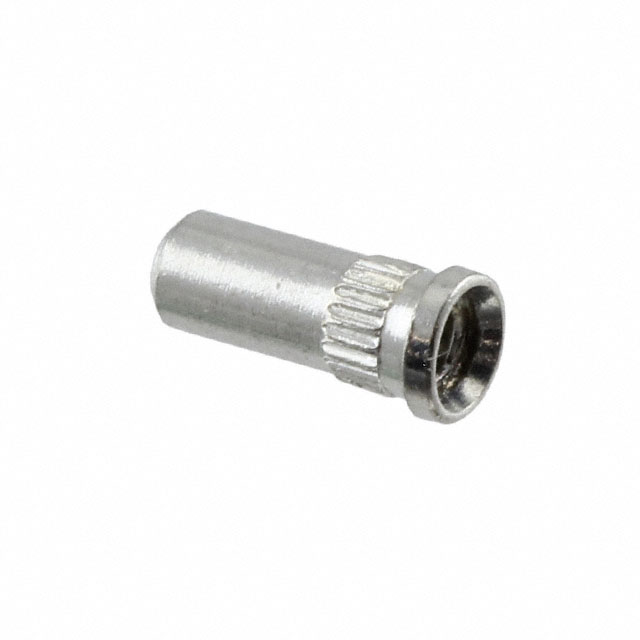

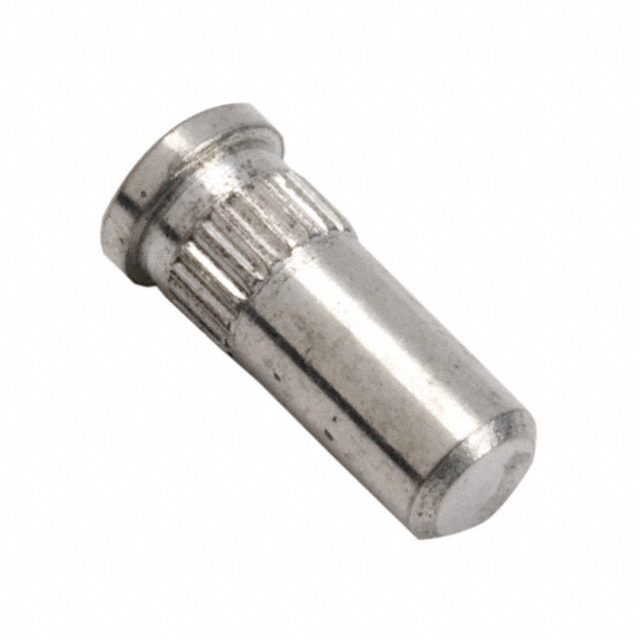

SOCKET, PCB, GOLD, KNURLED, 1MM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Insertion Force [Max] | Insertion Force [Min] | Length - Overall [x] | Length - Overall [x] | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Socket Depth | Socket Depth | Flange Diameter [diameter] | Flange Diameter [diameter] | Termination | Contact Finish | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Max] | Tail Type | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | -55 C | 125 °C | 9 N | 3 N | 0.207 in | 5.26 mm | Beryllium Copper | 5.9 µin | 0.15 µm | 0.14 in | 3.56 mm | 0.092 in | 2.34 mm | Knurled Press-Fit | Gold | 1.91 mm | 0.075 " | 0.077 " | 1.96 mm | No Tail | 1.05 mm | 0.89 mm | 0.041 " | 0.035 " |
 Harwin Inc. | -55 C | 125 °C | 9 N | 3 N | 0.207 in | 5.26 mm | Beryllium Copper | 3 µin | 0.076 Ám | 0.14 in | 3.56 mm | 0.092 in | 2.34 mm | Knurled Press-Fit | Tin | 1.91 mm | 0.075 " | 0.077 " | 1.96 mm | No Tail | 1.05 mm | 0.89 mm | 0.041 " | 0.035 " |
 Harwin Inc. | -55 C | 125 °C | 9 N | 3 N | 0.207 in | 5.26 mm | Beryllium Copper | 5.9 µin | 0.15 µm | 0.14 in | 3.56 mm | 0.092 in | 2.34 mm | Knurled Press-Fit | Gold | 1.91 mm | 0.075 " | 0.077 " | 1.96 mm | No Tail | 1.05 mm | 0.89 mm | 0.041 " | 0.035 " |
