SI5367 Series

Catalog

BOARD EVAL FOR SI5367/68

Part	Supplied Contents	Function	Type	Utilized IC / Part	Contents	Divider/Multiplier	Number of Circuits	Package / Case	Output	Voltage - Supply [Min]	Voltage - Supply [Max]	Ratio - Input:Output	Input	Frequency - Max [Max]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type

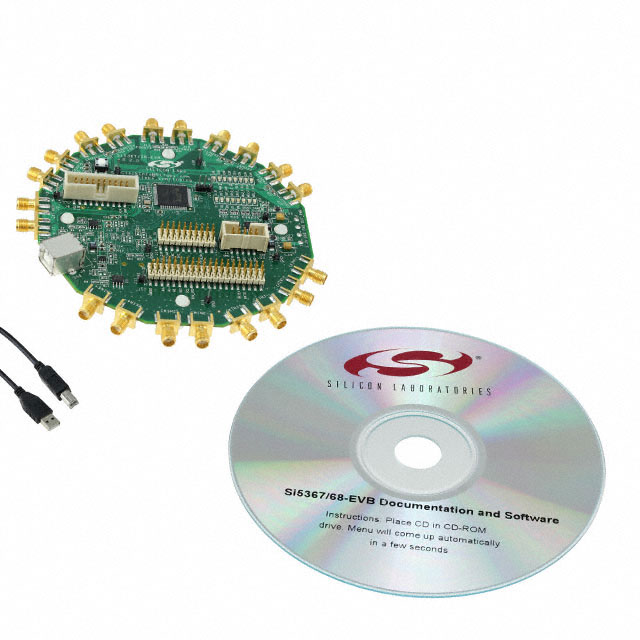

Skyworks Solutions Inc. SI5367/68-EVB	Board(s) Cable(s)	Clock Generator	Timing	SI5367 SI5368	Board Cable
Skyworks Solutions Inc. SI5367C-C-GQ			Clock Multiplier			No/Yes	1	100-TQFP	CML LVCMOS LVDS LVPECL	1.71 V	2.75 V	4:5	Clock	346 MHz	100-TQFP (14x14)	85 °C	-40 C	Surface Mount
Skyworks Solutions Inc. SI5367B-C-GQR			Clock Multiplier			No/Yes	1	100-TQFP	CML LVCMOS LVDS LVPECL	1.71 V	2.75 V	4:5	Clock	808 MHz	100-TQFP (14x14)	85 °C	-40 C	Surface Mount
Skyworks Solutions Inc. SI5367A-C-GQR			Clock Multiplier			No/Yes	1	100-TQFP	CML LVCMOS LVDS LVPECL	1.71 V	2.75 V	4:5	Clock	1.42 GHz	100-TQFP (14x14)	85 °C	-40 C	Surface Mount
Skyworks Solutions Inc. SI5367A-C-GQ			Clock Multiplier			No/Yes	1	100-TQFP	CML LVCMOS LVDS LVPECL	1.71 V	2.75 V	4:5	Clock	1.42 GHz	100-TQFP (14x14)	85 °C	-40 C	Surface Mount
Skyworks Solutions Inc. SI5367B-C-GQ			Clock Multiplier			No/Yes	1	100-TQFP	CML LVCMOS LVDS LVPECL	1.71 V	2.75 V	4:5	Clock	808 MHz	100-TQFP (14x14)	85 °C	-40 C	Surface Mount
