TR9CH1333 Series

Catalog

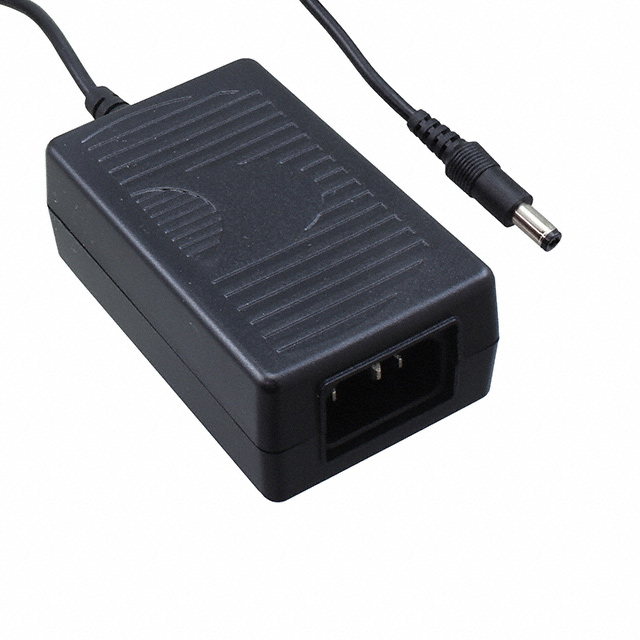

AC/DC DESKTOP ADAPTER 18V 24W

Part	Power (Watts)	Form	Cord Length	Cord Length	No Load Power Consumption	Standard Number	Approval Agency	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output	Output Connector [diameter]	Output Connector	Output Connector [x]	Current - Output (Max) [Max]	Polarization	Voltage - Input [Max]	Voltage - Input [Min]	Input Connector	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Region Utilized	Efficiency	Applications
GlobTek, Inc. TR9CH1333LCP-N(R6B)	24 W	Desktop (Class I)	60.2 in	1.53 m	75 mW	60950-1	CB CCC CE cULus EAC LPS PSE RCM S-Mark SIQ UkrSEPRO VCCI	Cord (Sold Separately)	40 °C	0 °C	18 V	2.5 mm 5.5 mm	Barrel Plug	11 mm	1.33 A	Positive Center	264 VAC	90 VAC	IEC 320-C14	31 mm	1.97 in	80.6 mm	50 mm	1.22 in	3.17 in	International	Level VI	ITE (Commercial)
GlobTek, Inc. TR9CH1333CCP-N(R6B)	24 W	Desktop (Class I)	60.2 in	1.53 m	75 mW	60950-1	CB CCC CE cULus EAC LPS PSE RCM S-Mark SIQ UkrSEPRO VCCI	Cord (Sold Separately)	40 °C	0 °C	18 V	2.1 mm 5.5 mm	Barrel Plug	11 mm	1.33 A	Positive Center	264 VAC	90 VAC	IEC 320-C14	31 mm	1.97 in	80.6 mm	50 mm	1.22 in	3.17 in	International	Level VI	ITE (Commercial)
