887-062 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 62POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Number of Rows [custom]	Pitch	Pitch	Color	Read Out	Card Type	Termination	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Contact Finish	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Features	Number of Positions/Bay/Row [custom]	Flange Feature	Contact Type	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 887-062-555-207	Polyphenylene Sulfide (PPS)	2	2	3.96 mm	0.156 in	Black	Dual	Non Specified - Dual Edge	Solder	62	0.25 Ám	10 Áin	Board Edge Straddle Mount	125 °C	-40 C	Female	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Card Extender	31	Flush Mount M3 Threaded Insert Top Opening	Cantilever

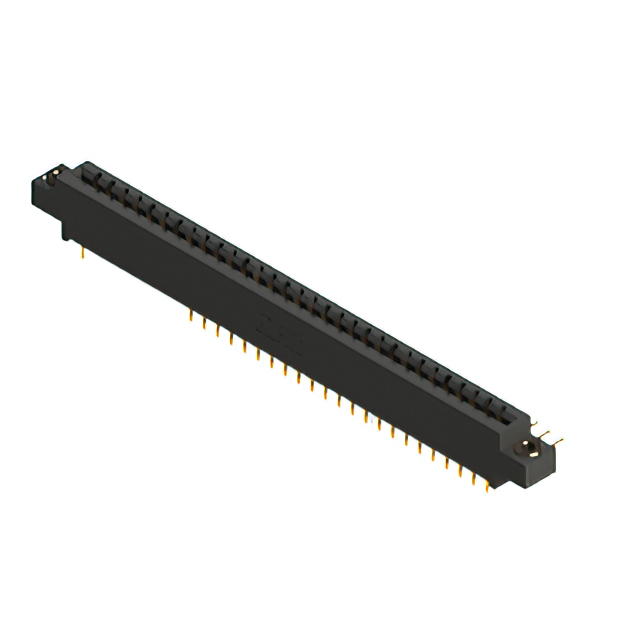

EDAC Inc. 887-062-559-803	Polyphenylene Sulfide (PPS)	2	2	3.96 mm	0.156 in	Black	Dual	Non Specified - Dual Edge	Solder	62	0.25 Ám	10 Áin	Right Angle Through Hole	125 °C	-40 C	Female	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy		31	Floating Bobbin Top Mount Opening	Cantilever	0.116 "	2.95 mm
EDAC Inc. 887-062-544-203	Polyphenylene Sulfide (PPS)	2	2	3.96 mm	0.156 in	Black	Dual	Non Specified - Dual Edge	Wire Wrap	62	0.25 Ám	10 Áin	Through Hole	125 °C	-40 C	Female	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy		31	Floating Bobbin Flush Mount	Cantilever	0.116 "	2.95 mm

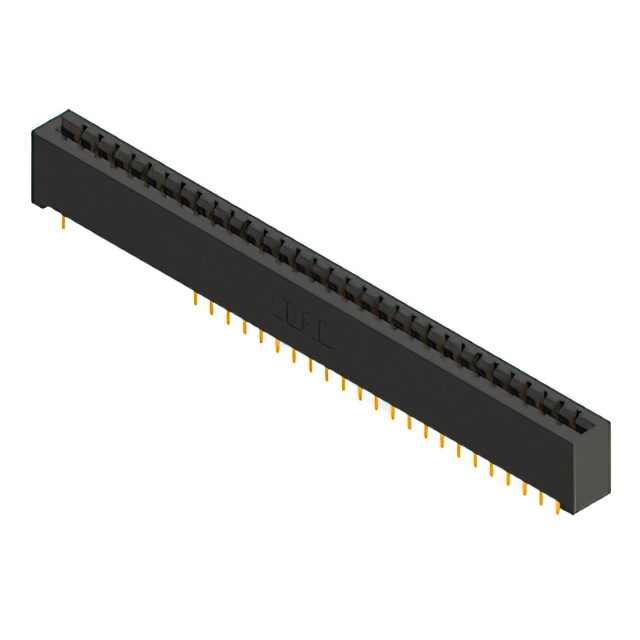

EDAC Inc. 887-062-521-201	Polyphenylene Sulfide (PPS)	2	2	3.96 mm	0.156 in	Black	Dual	Non Specified - Dual Edge	Solder	62	0.25 Ám	10 Áin	Through Hole	125 °C	-40 C	Female	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy		31		Cantilever
EDAC Inc. 887-062-541-807	Polyphenylene Sulfide (PPS)	2	2	3.96 mm	0.156 in	Black	Dual	Non Specified - Dual Edge	Wire Wrap	62	0.25 Ám	10 Áin	Through Hole	125 °C	-40 C	Female	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy		31	M3 Threaded Insert Top Mount Opening	Cantilever

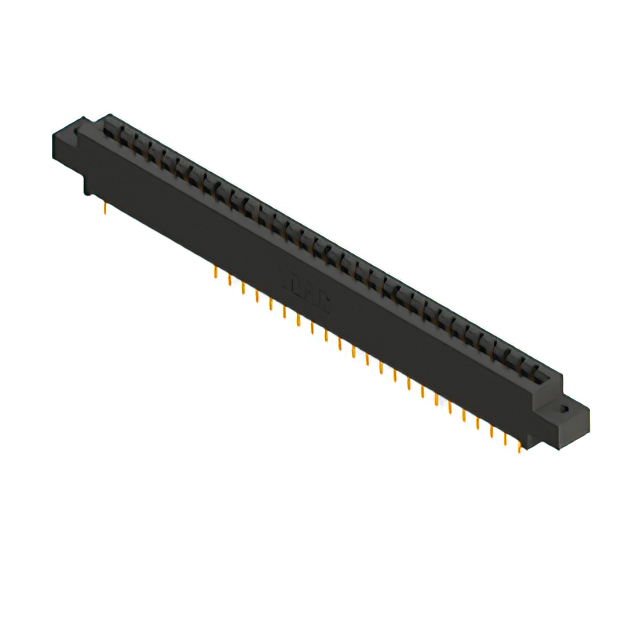

EDAC Inc. 887-062-541-802	Polyphenylene Sulfide (PPS)	2	2	3.96 mm	0.156 in	Black	Dual	Non Specified - Dual Edge	Wire Wrap	62	0.25 Ám	10 Áin	Through Hole	125 °C	-40 C	Female	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy		31		Cantilever	0.128 "	3.25 mm

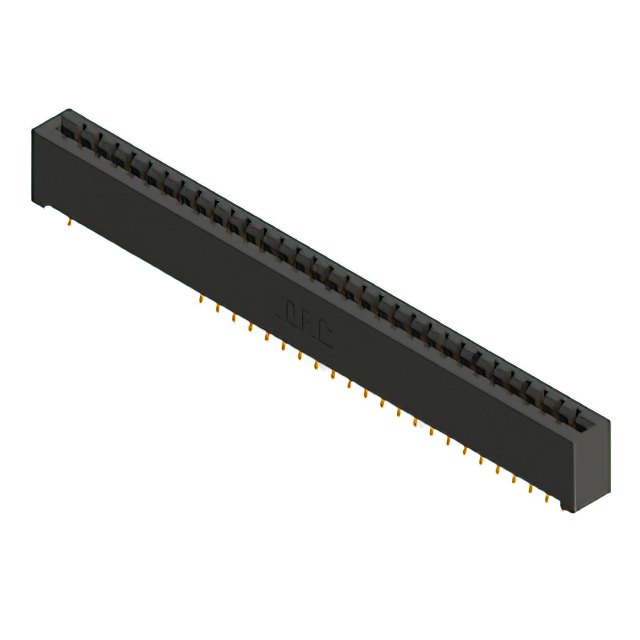

EDAC Inc. 887-062-556-201	Polyphenylene Sulfide (PPS)	2	2	3.96 mm	0.156 in	Black	Dual	Non Specified - Dual Edge	Solder	62	0.25 Ám	10 Áin	Board Edge Straddle Mount	125 °C	-40 C	Female	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Card Extender	31		Cantilever

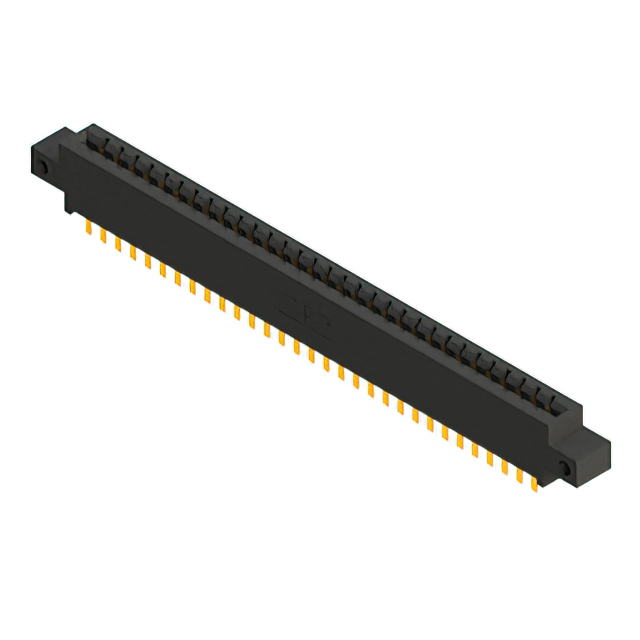

EDAC Inc. 887-062-500-812	Polyphenylene Sulfide (PPS)	2	2	3.96 mm	0.156 in	Black	Dual	Non Specified - Dual Edge	Solder Eyelet(s)	62	0.25 Ám	10 Áin	Through Hole	125 °C	-40 C	Female	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy		31	Side Mount Opening Unthreaded	Cantilever	0.128 "	3.25 mm
EDAC Inc. 887-062-542-203	Polyphenylene Sulfide (PPS)	2	2	3.96 mm	0.156 in	Black	Dual	Non Specified - Dual Edge	Wire Wrap	62	0.25 Ám	10 Áin	Through Hole	125 °C	-40 C	Female	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy		31	Floating Bobbin Flush Mount	Cantilever	0.116 "	2.95 mm
EDAC Inc. 887-062-521-802	Polyphenylene Sulfide (PPS)	2	2	3.96 mm	0.156 in	Black	Dual	Non Specified - Dual Edge	Solder	62	0.25 Ám	10 Áin	Through Hole	125 °C	-40 C	Female	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy		31		Cantilever	0.128 "	3.25 mm
