2823410 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

12P,2MM,PL HDR,DRRT,2.8,0.38AU,T

Part	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Fastening Type	Insulation Color	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Mounting Type	Contact Material	Number of Rows	Contact Shape	Pitch - Mating [x]	Pitch - Mating [x]	Connector Type	Voltage Rating	Row Spacing - Mating	Row Spacing - Mating	Termination	Insulation Material	Material Flammability Rating	Insulation Height	Insulation Height	Style	Number of Positions	Shrouding	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions

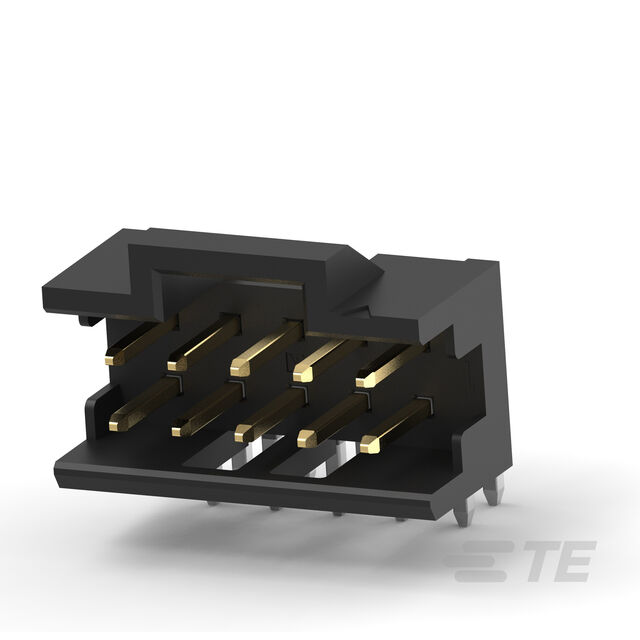

TE Connectivity Raychem Cable Protection 1-2823410-2	Gold	15 µin	0.38 µm	Male Pin	0.11 in	2.8 mm	125 °C	-40 °C	Tin	Latch Holder	Black	4 mm	0.157 in	2 A	Through Hole Right Angle	Phosphor Bronze	2	Square	0.079 in	2 mm	Header	125 VAC	0.079 in	2 mm	Solder	Thermoplastic	UL94 V-0	0.303 in	7.7 mm	Board to Board Cable	12	Shrouded - 2 Wall	All	157.5 Áin	4 Ám
TE Connectivity Raychem Cable Protection 3-2823410-2	Gold	15 µin	0.38 µm	Male Pin	0.11 in	2.8 mm	125 °C	-40 °C	Tin	Latch Holder	Black	4 mm	0.157 in	2 A	Through Hole Right Angle	Phosphor Bronze	2	Square	0.079 in	2 mm	Header	125 VAC	0.079 in	2 mm	Solder	Thermoplastic	UL94 V-0	0.303 in	7.7 mm	Board to Board Cable		Shrouded - 2 Wall	All	157.5 Áin	4 Ám
TE Connectivity Raychem Cable Protection 2-2823410-0	Gold	15 µin	0.38 µm	Male Pin	0.11 in	2.8 mm	125 °C	-40 °C	Tin	Latch Holder	Black	4 mm	0.157 in	2 A	Through Hole Right Angle	Phosphor Bronze	2	Square	0.079 in	2 mm	Header	125 VAC	0.079 in	2 mm	Solder	Thermoplastic	UL94 V-0	0.303 in	7.7 mm	Board to Board Cable	20	Shrouded - 2 Wall	All	157.5 Áin	4 Ám
TE Connectivity Raychem Cable Protection 1-2823410-8	Gold	15 µin	0.38 µm	Male Pin	0.11 in	2.8 mm	125 °C	-40 °C	Tin	Latch Holder	Black	4 mm	0.157 in	2 A	Through Hole Right Angle	Phosphor Bronze	2	Square	0.079 in	2 mm	Header	125 VAC	0.079 in	2 mm	Solder	Thermoplastic	UL94 V-0	0.303 in	7.7 mm	Board to Board Cable	18	Shrouded - 2 Wall	All	157.5 Áin	4 Ám

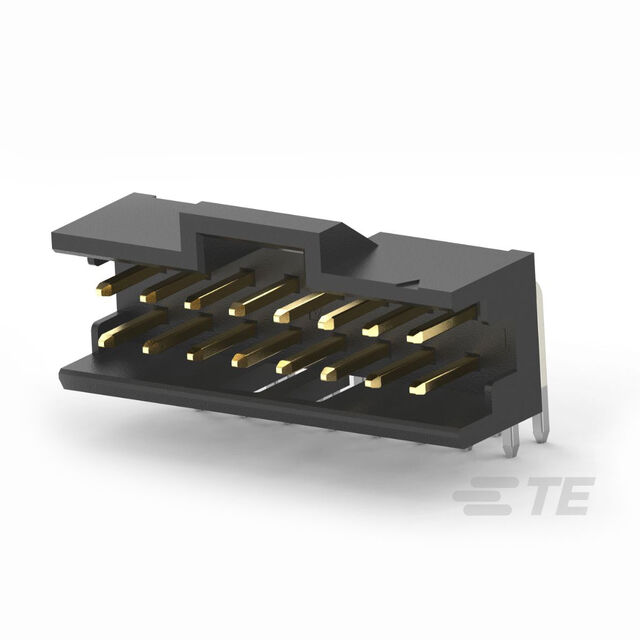

TE Connectivity Raychem Cable Protection 2-2823410-6	Gold	15 µin	0.38 µm	Male Pin	0.11 in	2.8 mm	125 °C	-40 °C	Tin	Latch Holder	Black	4 mm	0.157 in	2 A	Through Hole Right Angle	Phosphor Bronze	2	Square	0.079 in	2 mm	Header	125 VAC	0.079 in	2 mm	Solder	Thermoplastic	UL94 V-0	0.303 in	7.7 mm	Board to Board Cable	26	Shrouded - 2 Wall	All	157.5 Áin	4 Ám

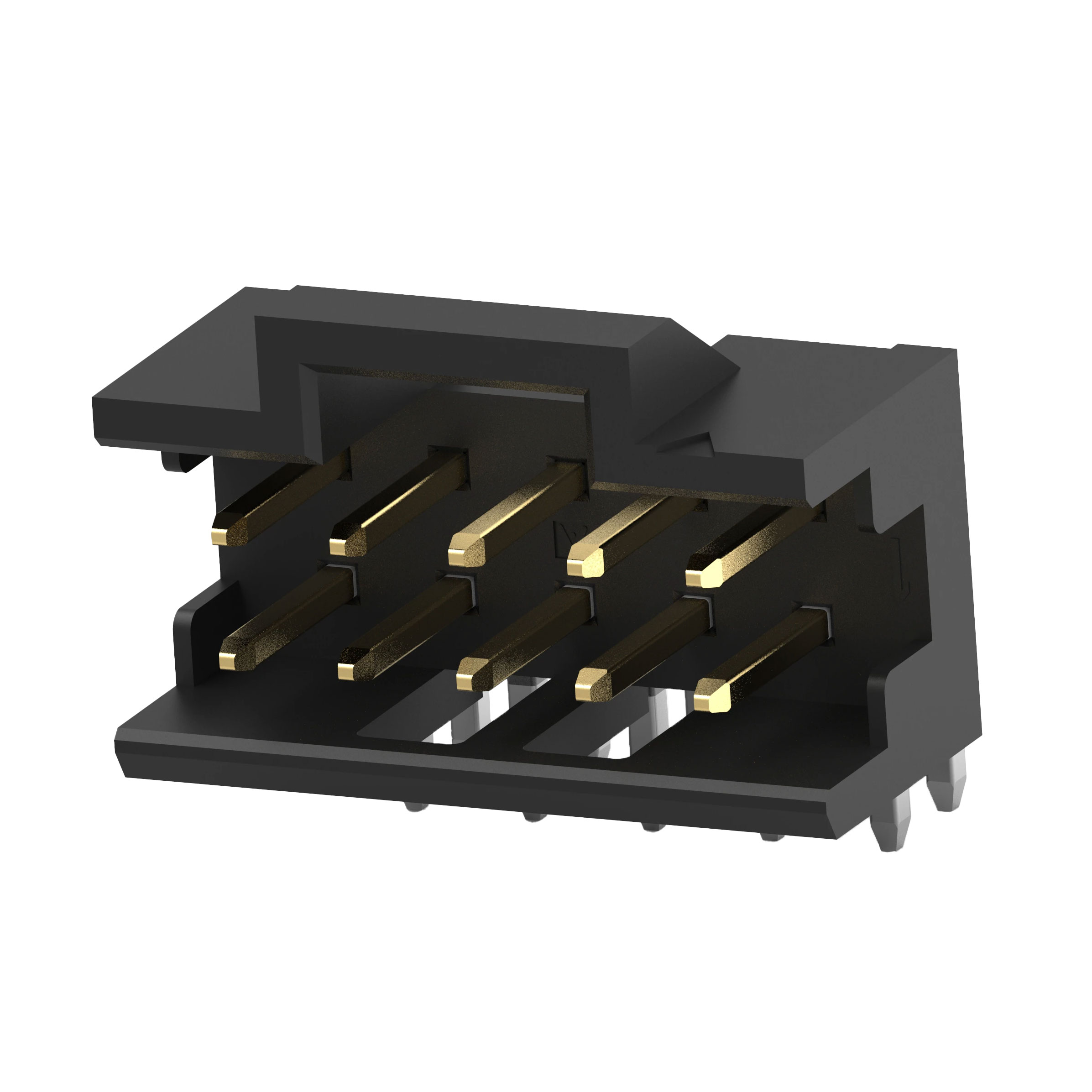

TE Connectivity Raychem Cable Protection 1-2823410-0	Gold	15 µin	0.38 µm	Male Pin	0.11 in	2.8 mm	125 °C	-40 °C	Tin	Latch Holder	Black	4 mm	0.157 in	2 A	Through Hole Right Angle	Phosphor Bronze	2	Square	0.079 in	2 mm	Header	125 VAC	0.079 in	2 mm	Solder	Thermoplastic	UL94 V-0	0.303 in	7.7 mm	Board to Board Cable	10	Shrouded - 2 Wall	All	157.5 Áin	4 Ám

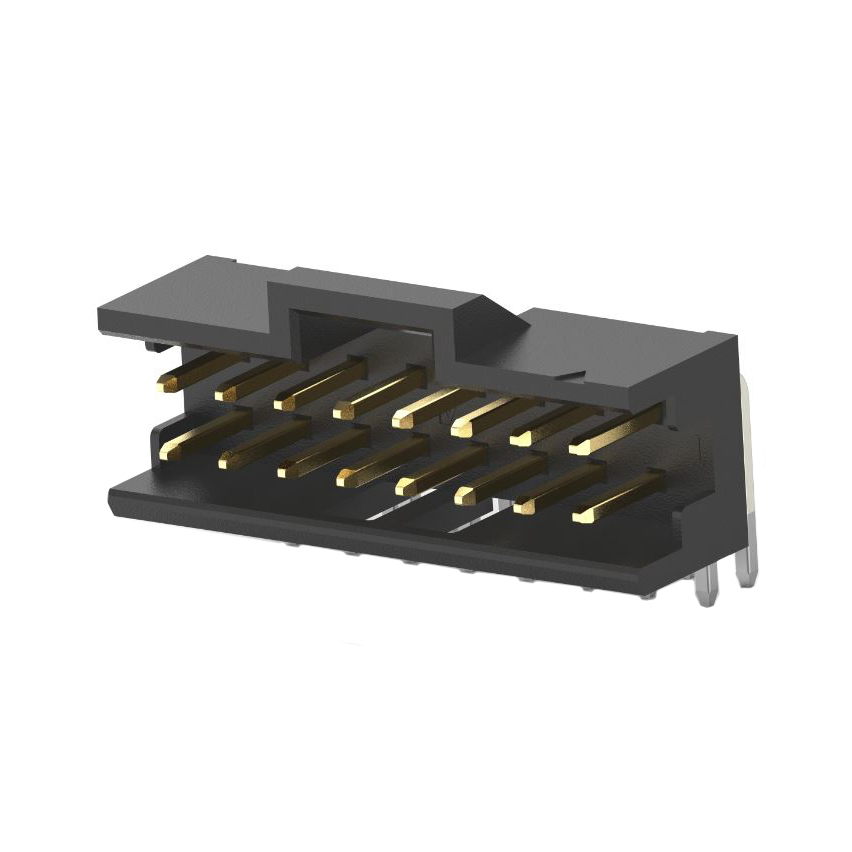

TE Connectivity Raychem Cable Protection 1-2823410-6	Gold	15 µin	0.38 µm	Male Pin	0.11 in	2.8 mm	125 °C	-40 °C	Tin	Latch Holder	Black	4 mm	0.157 in	2 A	Through Hole Right Angle	Phosphor Bronze	2	Square	0.079 in	2 mm	Header	125 VAC	0.079 in	2 mm	Solder	Thermoplastic	UL94 V-0	0.303 in	7.7 mm	Board to Board Cable		Shrouded - 2 Wall	All	157.5 Áin	4 Ám	16

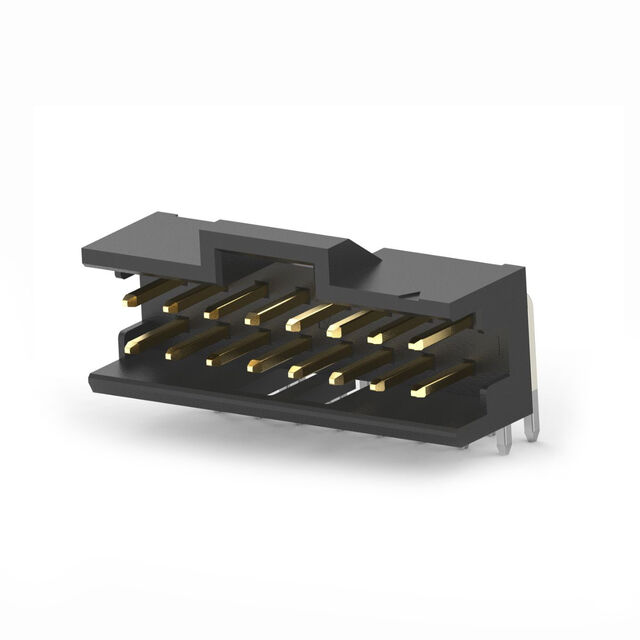

TE Connectivity Raychem Cable Protection 3-2823410-0	Gold	15 µin	0.38 µm	Male Pin	0.11 in	2.8 mm	125 °C	-40 °C	Tin	Latch Holder	Black	4 mm	0.157 in	2 A	Through Hole Right Angle	Phosphor Bronze	2	Square	0.079 in	2 mm	Header	125 VAC	0.079 in	2 mm	Solder	Thermoplastic	UL94 V-0	0.303 in	7.7 mm	Board to Board Cable	30	Shrouded - 2 Wall	All	157.5 Áin	4 Ám

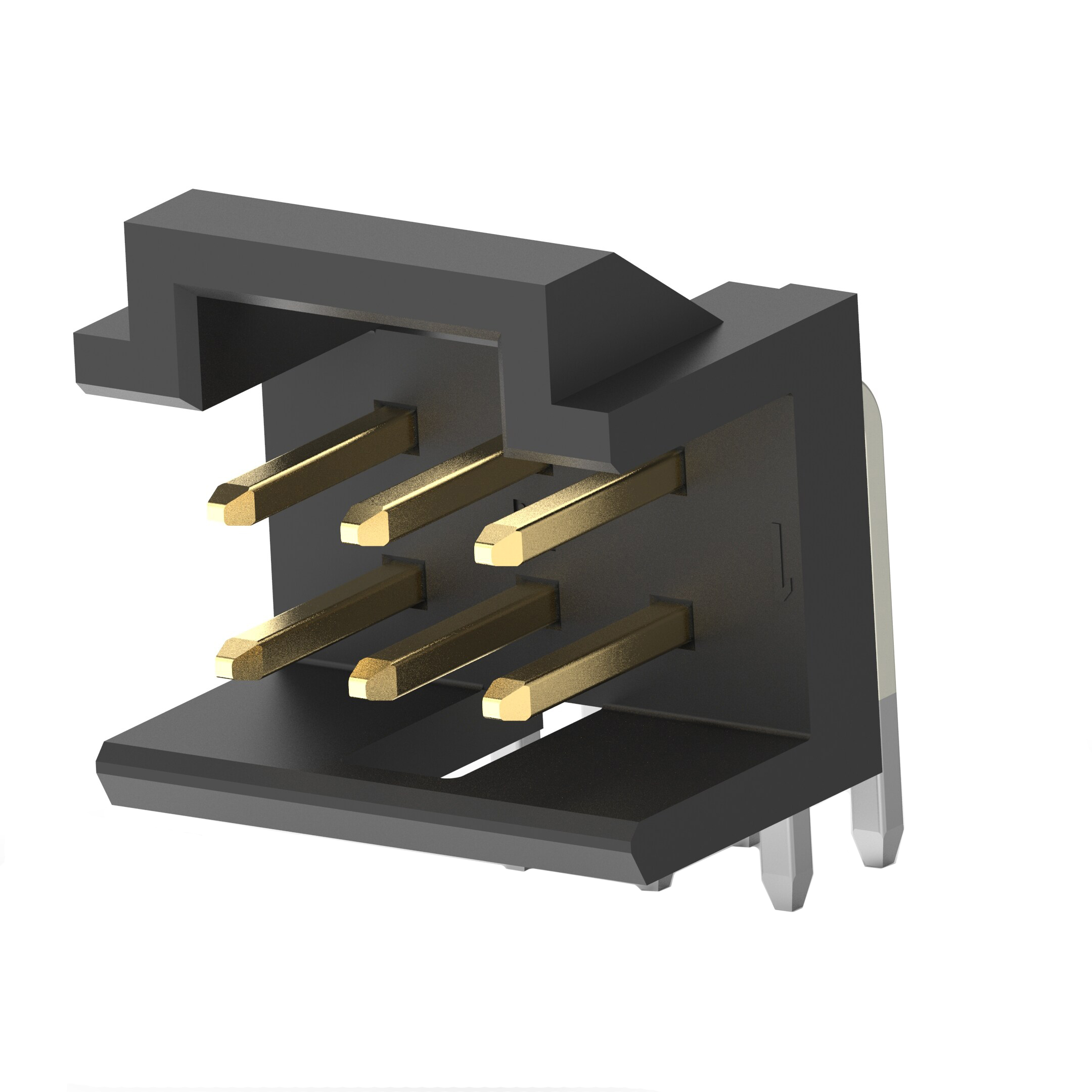

TE Connectivity Raychem Cable Protection 2823410-6	Gold	15 µin	0.38 µm	Male Pin	0.11 in	2.8 mm	125 °C	-40 °C	Tin	Latch Holder	Black	4 mm	0.157 in	2 A	Through Hole Right Angle	Phosphor Bronze	2	Square	0.079 in	2 mm	Header	125 VAC	0.079 in	2 mm	Solder	Thermoplastic	UL94 V-0	0.303 in	7.7 mm	Board to Board Cable	6	Shrouded - 2 Wall	All	157.5 Áin	4 Ám

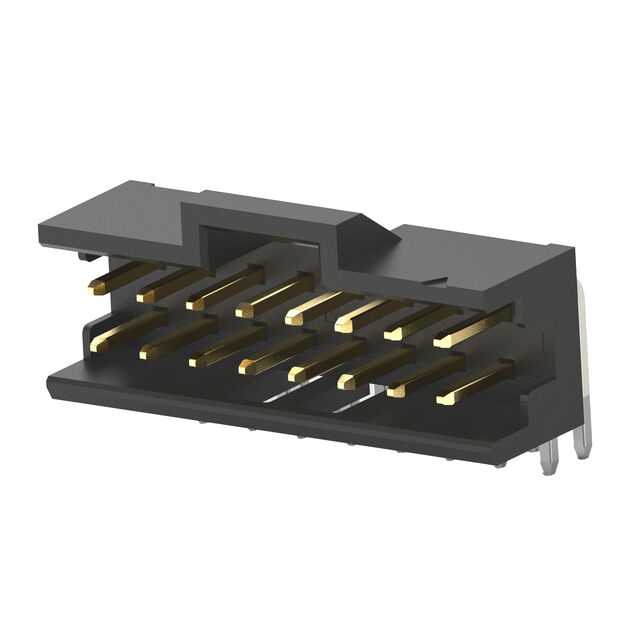

TE Connectivity Raychem Cable Protection 2-2823410-2	Gold	15 µin	0.38 µm	Male Pin	0.11 in	2.8 mm	125 °C	-40 °C	Tin	Latch Holder	Black	4 mm	0.157 in	2 A	Through Hole Right Angle	Phosphor Bronze	2	Square	0.079 in	2 mm	Header	125 VAC	0.079 in	2 mm	Solder	Thermoplastic	UL94 V-0	0.303 in	7.7 mm	Board to Board Cable	22 positions	Shrouded - 2 Wall	All	157.5 Áin	4 Ám
