R11308 Series

Catalog

MCX / STRAIGHT PLUG CRIMP TYPE C

Part	Center Contact Plating	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Mating Cycles	Dielectric Material	Body Finish	Contact Termination	Shield Termination	Center Contact Material	Mounting Type	Frequency - Max [Max]	Impedance	Connector Style	Fastening Type	Cable Group	Connector Type	Number of Ports	Housing Color	Cable Group	Features
Radiall USA, Inc. R113083000W	Gold	335 V	155 C	-55 C	Brass	500	Polytetrafluoroethylene (PTFE)	Gold	Crimp	Crimp	Beryllium Copper	Free Hanging (In-Line)	6000 MHz	50 Ohms	MCX	Snap-On	RG-316DS	Plug Male Pin	1	Gold

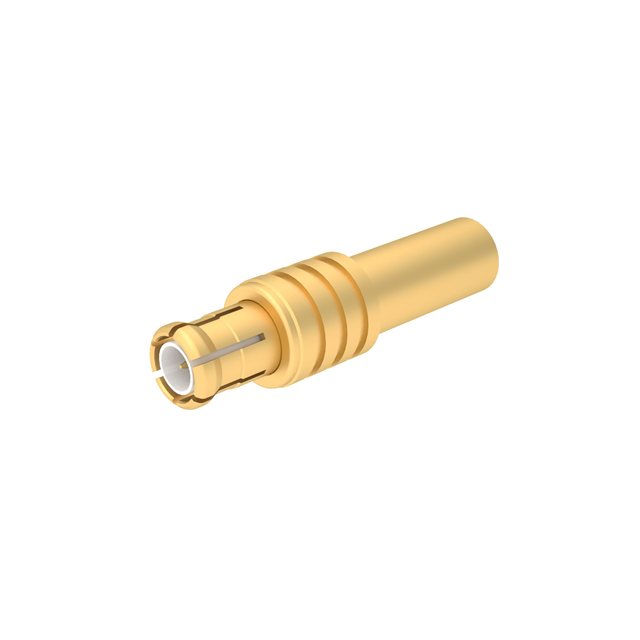

Radiall USA, Inc. R113082000	Gold	170 V	155 C	-55 C	Brass	500	Polytetrafluoroethylene (PTFE)	Gold	Crimp	Crimp	Brass	Free Hanging (In-Line)	6000 MHz	50 Ohms	MCX	Snap-On	RG-174	Plug Male Pin	1	Gold	316

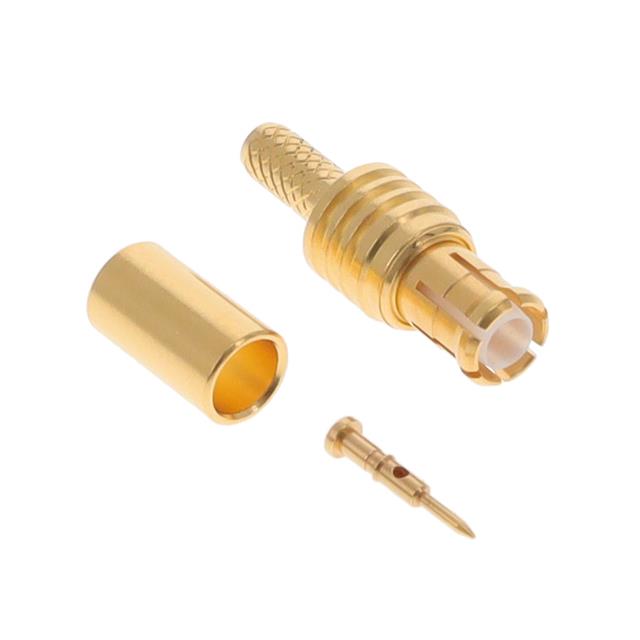

Radiall USA, Inc. R113082000W	Gold	170 V	155 C	-55 C	Brass	500	Polytetrafluoroethylene (PTFE)	Gold	Crimp	Crimp	Brass	Free Hanging (In-Line)	6000 MHz	50 Ohms	MCX	Snap-On	188 316 RG-174	Plug Male Pin	1	Gold
Radiall USA, Inc. R113081000W	Gold	170 V	155 C	-55 C	Brass	500	Polytetrafluoroethylene (PTFE)	Gold	Crimp	Crimp	Brass	Free Hanging (In-Line)	6000 MHz	50 Ohms	MCX	Snap-On	RG-178	Plug Male Pin	1	Gold	196

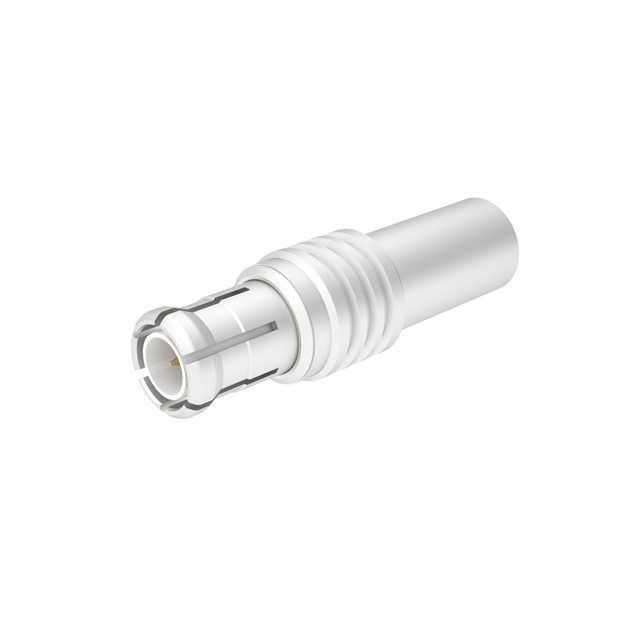

Radiall USA, Inc. R113082097	Gold	170 V	125 °C	-55 C	Bronze	500	Polytetrafluoroethylene (PTFE)	White Bronze	Crimp	Crimp	Bronze	Free Hanging (In-Line)	6000 MHz	50 Ohms	MCX	Snap-On	RG-178	Plug Male Pin	1	Silver		Non-Magnetic

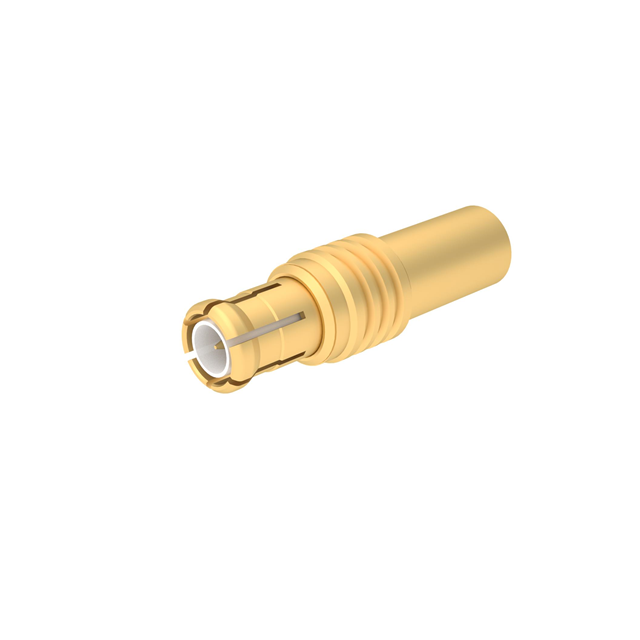

Radiall USA, Inc. R113083000	Gold	170 V	155 C	-55 C	Brass	500	Polytetrafluoroethylene (PTFE)	Gold	Crimp	Crimp	Beryllium Copper	Free Hanging (In-Line)	6000 MHz	50 Ohms	MCX	Snap-On	RG-316DS	Plug Male Pin	1	Gold

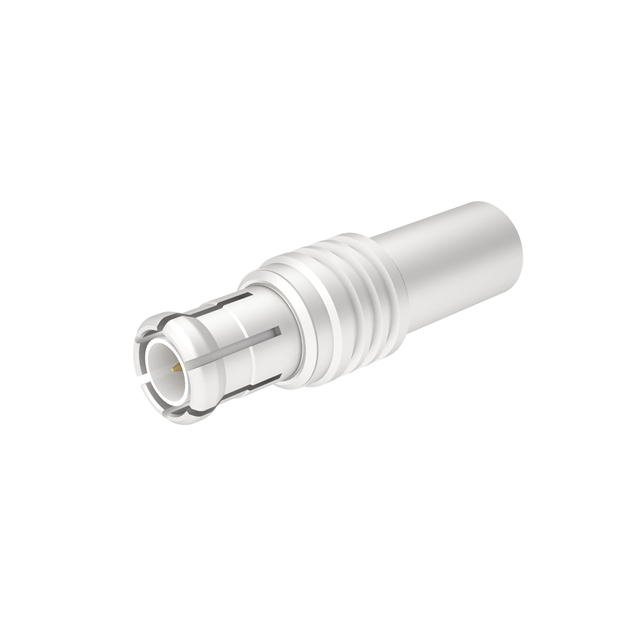

Radiall USA, Inc. R113081097	Gold	170 V	125 °C	-55 C	Bronze	500	Polytetrafluoroethylene (PTFE)	White Bronze	Crimp	Crimp	Bronze	Free Hanging (In-Line)	6000 MHz	50 Ohms	MCX	Snap-On	RG-178	Plug Male Pin	1	Silver		Non-Magnetic
