2823369 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

10P,2MM,SHRD HDR,DRVT,SMD,0.38AU

Part	Contact Finish - Mating	Insulation Material	Features	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Current Rating (Amps)	Contact Material	Voltage Rating	Contact Shape	Termination	Contact Finish - Post	Number of Rows	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Mating	Contact Length - Mating	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [custom]	Insulation Height [custom]	Material Flammability Rating	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Color	Shrouding	Number of Positions Loaded	Contact Type	Mounting Type

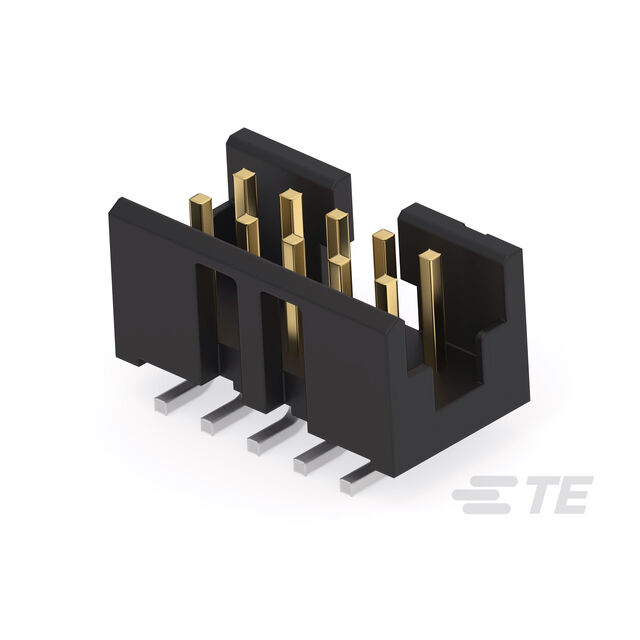

TE Connectivity Raychem Cable Protection 1-2823369-0	Gold	Thermoplastic	Pick and Place	125 °C	-40 °C	Detent Lock	157.5 Áin	4 Ám	Header	2 A	Phosphor Bronze	125 VAC	Square	Solder	Tin	2	0.079 in	2 mm	4 mm	0.157 in	10	15 µin	0.38 µm	5.51 mm	0.217 in	UL94 V-0	0.079 in	2 mm	Black	Shrouded - 2 Wall	All	Male Pin	Surface Mount

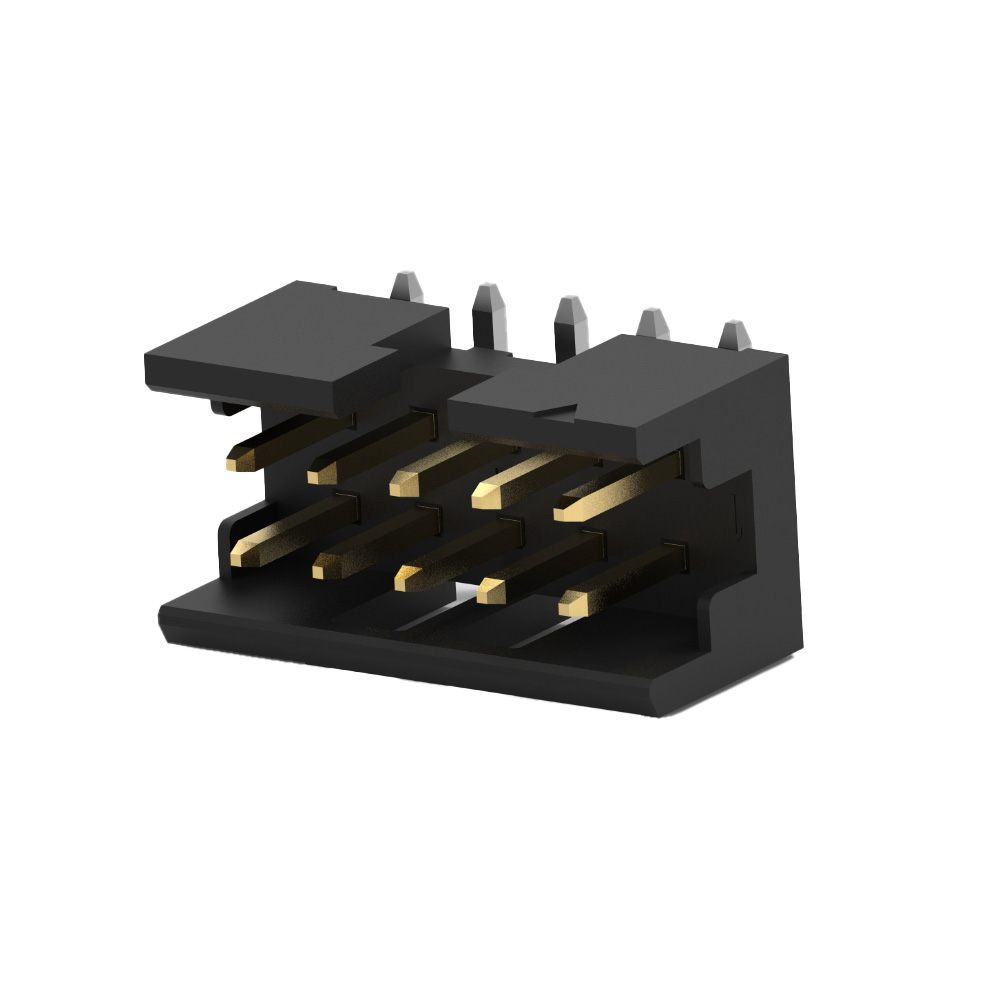

TE Connectivity Raychem Cable Protection 1-2823369-2	Gold	Thermoplastic	Pick and Place	125 °C	-40 °C	Detent Lock	157.5 Áin	4 Ám	Header	2 A	Phosphor Bronze	125 VAC	Square	Solder	Tin	2	0.079 in	2 mm	4 mm	0.157 in	12	15 µin	0.38 µm	5.51 mm	0.217 in	UL94 V-0	0.079 in	2 mm	Black	Shrouded - 2 Wall	All	Male Pin	Surface Mount
TE Connectivity Raychem Cable Protection 2823369-6	Gold	Thermoplastic	Pick and Place	125 °C	-40 °C	Detent Lock	157.5 Áin	4 Ám	Header	2 A	Phosphor Bronze	125 VAC	Square	Solder	Tin	2	0.079 in	2 mm	4 mm	0.157 in	6	15 µin	0.38 µm	5.51 mm	0.217 in	UL94 V-0	0.079 in	2 mm	Black	Shrouded - 2 Wall	All	Male Pin	Surface Mount
TE Connectivity Raychem Cable Protection 1-2823369-8	Gold	Thermoplastic	Pick and Place	125 °C	-40 °C	Detent Lock	157.5 Áin	4 Ám	Header	2 A	Phosphor Bronze	125 VAC	Square	Solder	Tin	2	0.079 in	2 mm	4 mm	0.157 in	18	15 µin	0.38 µm	5.51 mm	0.217 in	UL94 V-0	0.079 in	2 mm	Black	Shrouded - 2 Wall	All	Male Pin	Surface Mount

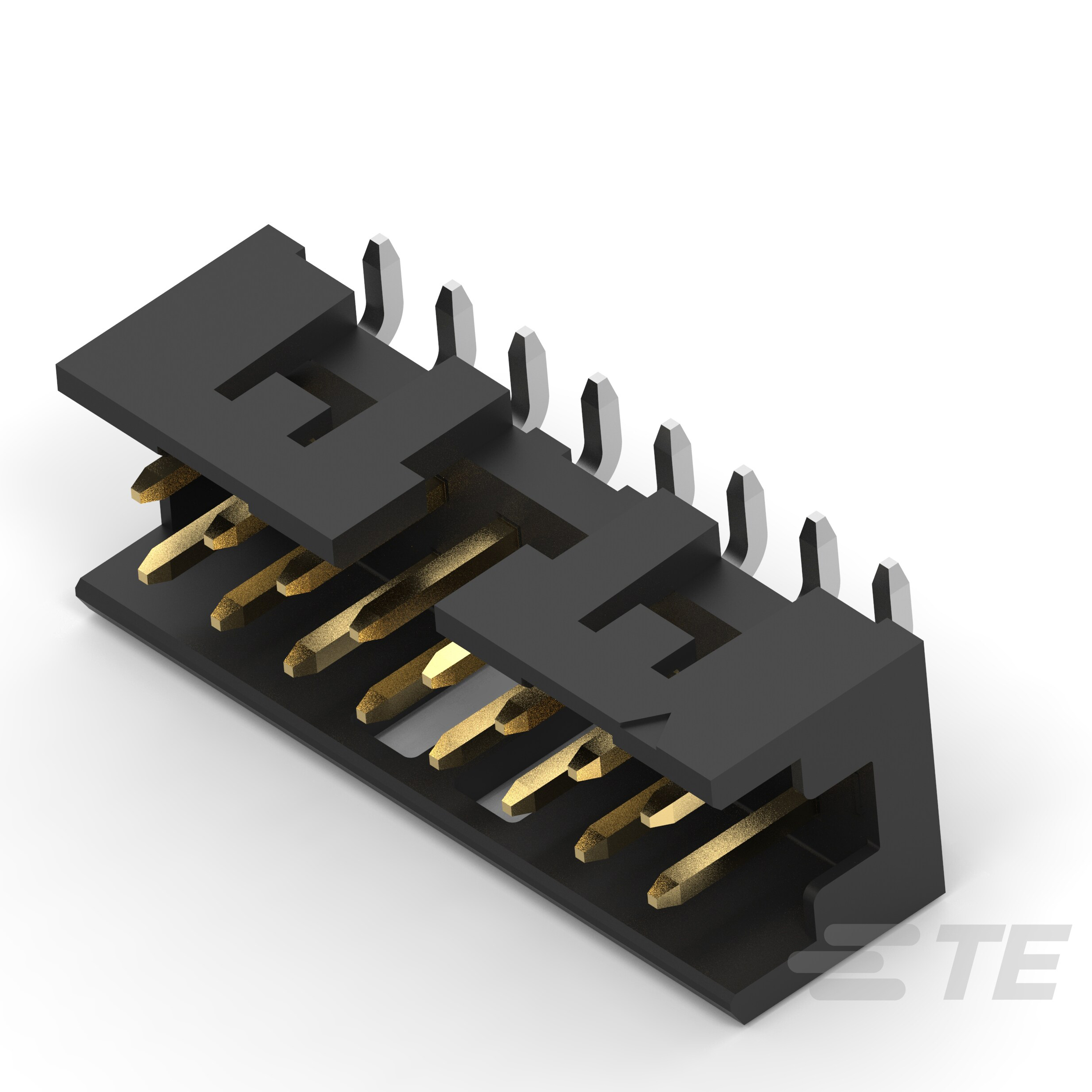

TE Connectivity Raychem Cable Protection 2-2823369-0	Gold	Thermoplastic	Pick and Place	125 °C	-40 °C	Detent Lock	157.5 Áin	4 Ám	Header	2 A	Phosphor Bronze	125 VAC	Square	Solder	Tin	2	0.079 in	2 mm	4 mm	0.157 in	20	15 µin	0.38 µm	5.51 mm	0.217 in	UL94 V-0	0.079 in	2 mm	Black	Shrouded - 2 Wall	All	Male Pin	Surface Mount

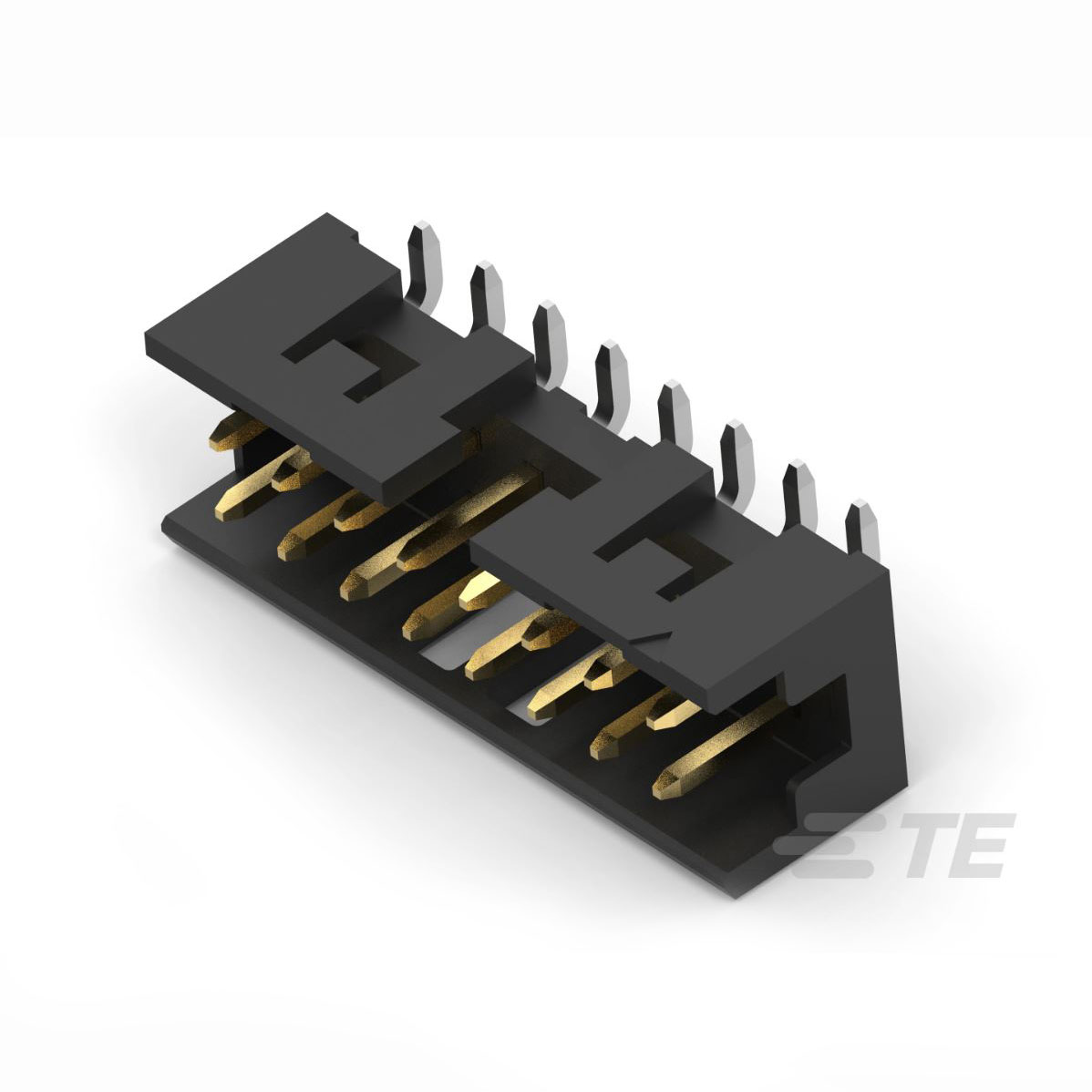

TE Connectivity Raychem Cable Protection 3-2823369-0	Gold	Thermoplastic	Pick and Place	125 °C	-40 °C	Detent Lock	157.5 Áin	4 Ám	Header	2 A	Phosphor Bronze	125 VAC	Square	Solder	Tin	2	0.079 in	2 mm	4 mm	0.157 in	30	15 µin	0.38 µm	5.51 mm	0.217 in	UL94 V-0	0.079 in	2 mm	Black	Shrouded - 2 Wall	All	Male Pin	Surface Mount

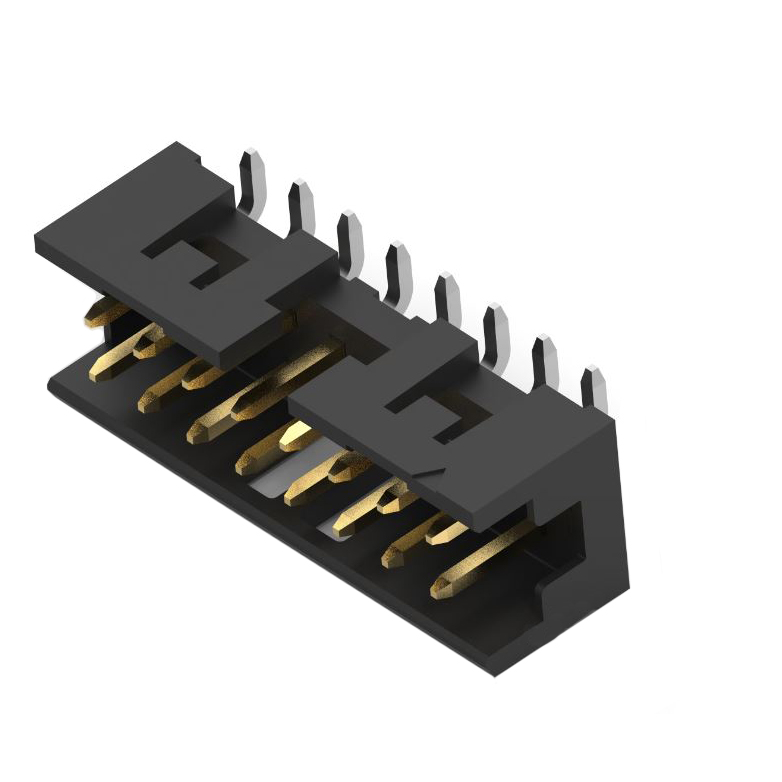

TE Connectivity Raychem Cable Protection 2-2823369-4	Gold	Thermoplastic	Pick and Place	125 °C	-40 °C	Detent Lock	157.5 Áin	4 Ám	Header	2 A	Phosphor Bronze	125 VAC	Square	Solder	Tin	2	0.079 in	2 mm	4 mm	0.157 in	24	15 µin	0.38 µm	5.51 mm	0.217 in	UL94 V-0	0.079 in	2 mm	Black	Shrouded - 2 Wall	All	Male Pin	Surface Mount

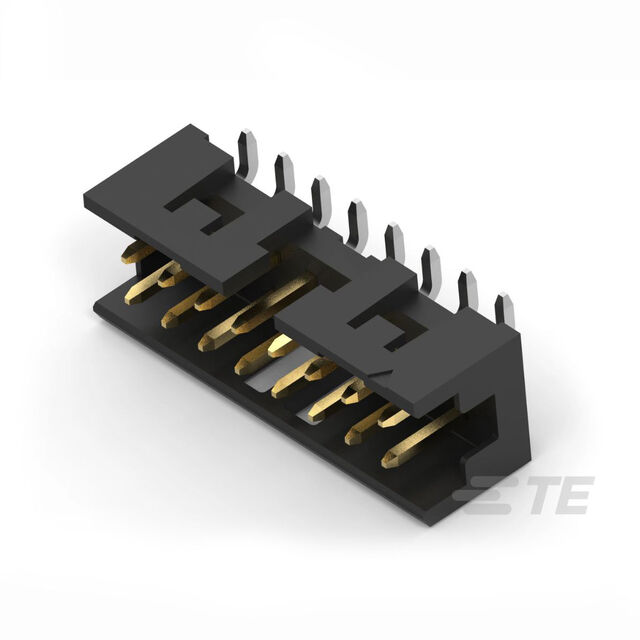

TE Connectivity Raychem Cable Protection 5-2823369-0	Gold	Thermoplastic	Pick and Place	125 °C	-40 °C	Detent Lock	157.5 Áin	4 Ám	Header	2 A	Phosphor Bronze	125 VAC	Square	Solder	Tin	2	0.079 in	2 mm	4 mm	0.157 in	50	15 µin	0.38 µm	5.51 mm	0.217 in	UL94 V-0	0.079 in	2 mm	Black	Shrouded - 2 Wall	All	Male Pin	Surface Mount

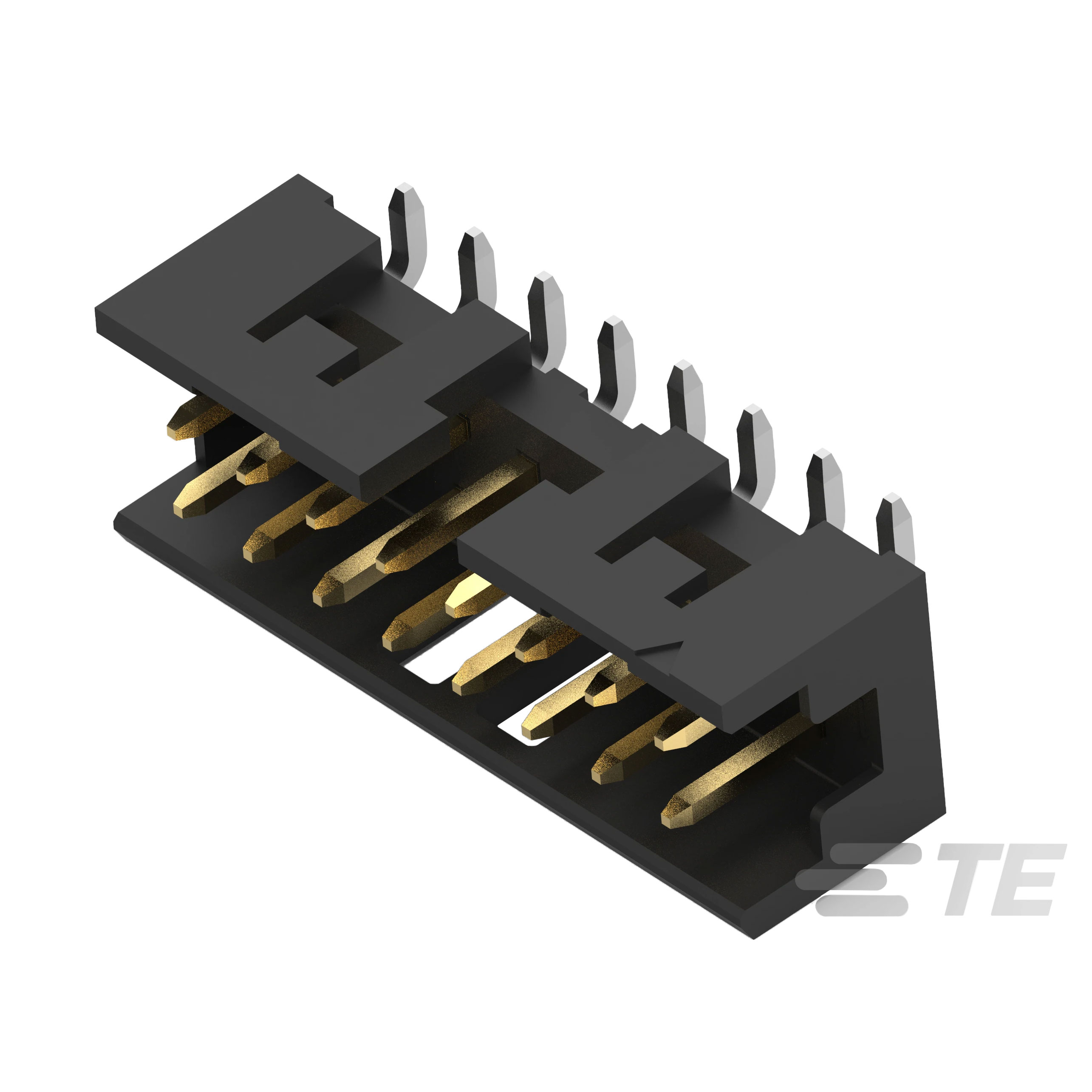

TE Connectivity Raychem Cable Protection 4-2823369-0	Gold	Thermoplastic	Pick and Place	125 °C	-40 °C	Detent Lock	157.5 Áin	4 Ám	Header	2 A	Phosphor Bronze	125 VAC	Square	Solder	Tin	2	0.079 in	2 mm	4 mm	0.157 in	40	15 µin	0.38 µm	5.51 mm	0.217 in	UL94 V-0	0.079 in	2 mm	Black	Shrouded - 2 Wall	All	Male Pin	Surface Mount

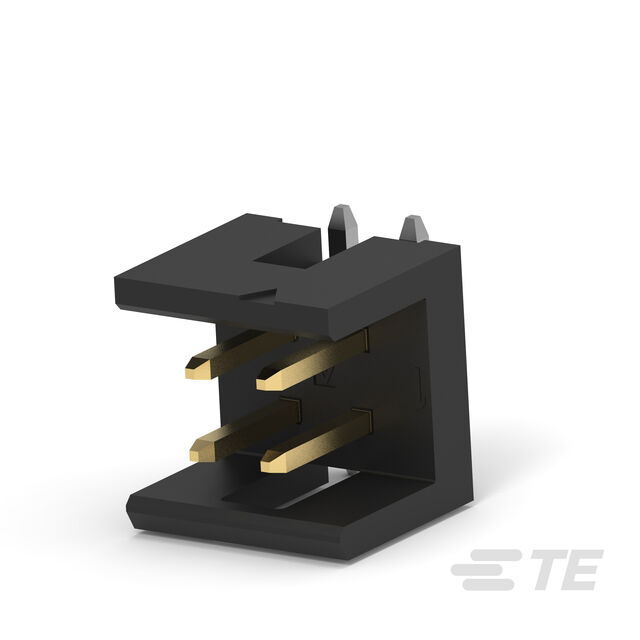

TE Connectivity Raychem Cable Protection 2823369-4	Gold	Thermoplastic	Pick and Place	125 °C	-40 °C	Detent Lock	157.5 Áin	4 Ám	Header	2 A	Phosphor Bronze	125 VAC	Square	Solder	Tin	2	0.079 in	2 mm	4 mm	0.157 in	4	15 µin	0.38 µm	5.51 mm	0.217 in	UL94 V-0	0.079 in	2 mm	Black	Shrouded - 2 Wall	All	Male Pin	Surface Mount
