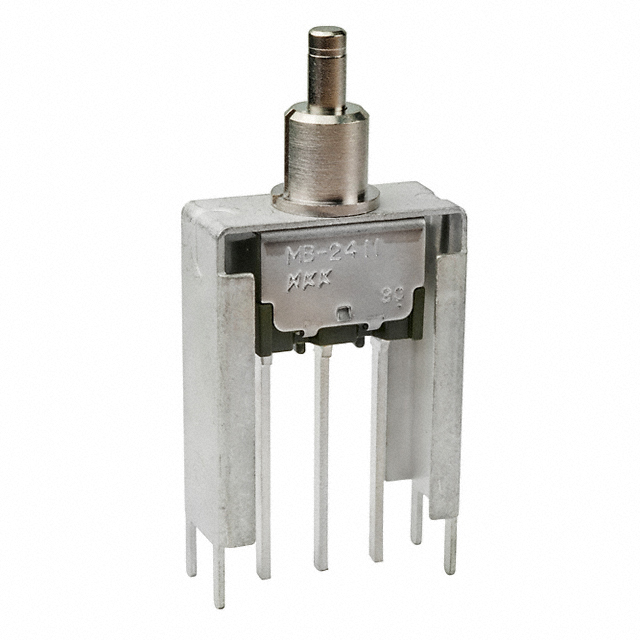

MB2411A Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH PUSHBUTTON SPDT 3A 125V
| Part | Mechanical Life | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Actuator Marking | Termination Style | Mounting Type | Switch Function | Circuit | Current Rating (Amps) | Actuator Type | Features | Type | Voltage Rating - DC | Panel Cutout Dimensions [diameter] | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 200000 Cycles | 25000 Steps | 85 °C | -30 ░C | 125 V | No Marking | PC Pin | Right Angle Through Hole | On-Mom | SPDT | 3 A | Plunger for Cap | Epoxy Sealed Terminals | Standard | |||
 NKK Switches | 200000 Cycles | 100000 Cycles | 85 °C | -30 ░C | 28 V | No Marking | PC Pin | Right Angle Through Hole Vertical | On-Mom | SPDT | 0.4 VA | Plunger for Cap | Epoxy Sealed Terminals | Standard | 28 V | ||
 NKK Switches | 200000 Cycles | 25000 Steps | 85 °C | -30 ░C | 125 V | No Marking | PC Pin | Panel Mount Rear Right Angle Vertical | On-Mom | SPDT | 3 A | Plunger for Cap | Epoxy Sealed Terminals | Standard | 6.5 mm | ||
 NKK Switches | 200000 Cycles | 100000 Cycles | 85 °C | -30 ░C | 28 V | No Marking | PC Pin | Through Hole | On-Mom | SPDT | 0.4 VA | Button Round | Epoxy Sealed Terminals | Standard | 28 V | White | |
 NKK Switches | 200000 Cycles | 25000 Steps | 85 °C | -30 ░C | 125 V | No Marking | PC Pin | Right Angle Through Hole | On-Mom | SPDT | 3 A | Button Round | Epoxy Sealed Terminals | Standard | Red | ||
NKK Switches | 200000 Cycles | 100000 Cycles | 85 °C | -30 ░C | 28 V | No Marking | PC Pin | Panel Mount Rear Right Angle | On-Mom | SPDT | 0.4 VA | Button Round | Epoxy Sealed Terminals | Standard | 28 V | 6.5 mm | Black |
 NKK Switches | 200000 Cycles | 25000 Steps | 85 °C | -30 ░C | 125 V | No Marking | PC Pin | Through Hole | On-Mom | SPDT | 3 A | Button Round | Epoxy Sealed Terminals | Standard | Black | ||
 NKK Switches | 200000 Cycles | 25000 Steps | 85 °C | -30 ░C | 125 V | No Marking | PC Pin | Right Angle Through Hole | On-Mom | SPDT | 3 A | Button Round | Epoxy Sealed Terminals | Standard | Black | ||
 NKK Switches | 200000 Cycles | 25000 Steps | 85 °C | -30 ░C | 125 V | No Marking | PC Pin | Through Hole | On-Mom | SPDT | 3 A | Plunger for Cap | Epoxy Sealed Terminals | Standard | |||
 NKK Switches | 200000 Cycles | 25000 Steps | 85 °C | -30 ░C | 125 V | No Marking | PC Pin | Through Hole | On-Mom | SPDT | 3 A | Plunger for Cap | Epoxy Sealed Terminals | Standard |
