175615 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

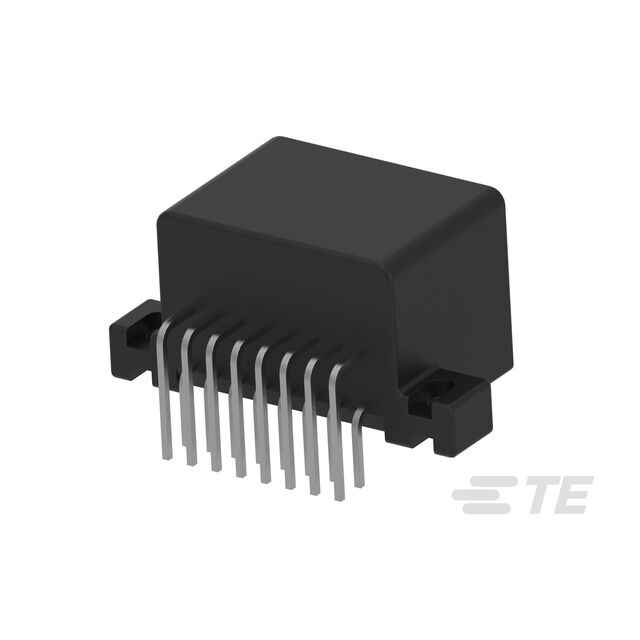

CONN HEADER R/A 16POS 2.5MM
| Part | Insulation Material | Features | Contact Finish - Post | Contact Length - Post | Contact Length - Post | Pitch - Mating | Pitch - Mating | Applications | Contact Type | Contact Material | Contact Shape | Style | Number of Rows | Mounting Type | Row Spacing - Mating [x] | Row Spacing - Mating | Insulation Height | Insulation Height | Fastening Type | Shrouding | Number of Positions | Termination | Current Rating (Amps) | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Polybutylene Terephthalate (PBT) | Mounting Flange | Tin | 0.146 in | 3.7 mm | 2.5 mm | 0.098 in | Automotive General Purpose | Tab | Brass | Rectangular | Board to Cable/Wire | 2 | Through Hole Right Angle | 0.205 in | 5.2 mm | 16.9 mm | 0.665 in | Latch Holder | Shrouded - 4 Wall | 16 | Solder | Varies by Wire Gauge | All | -30 ░C | 105 ░C | Black |
