EE2-5T Series
Manufacturer: KEMET
Beta
⌘K

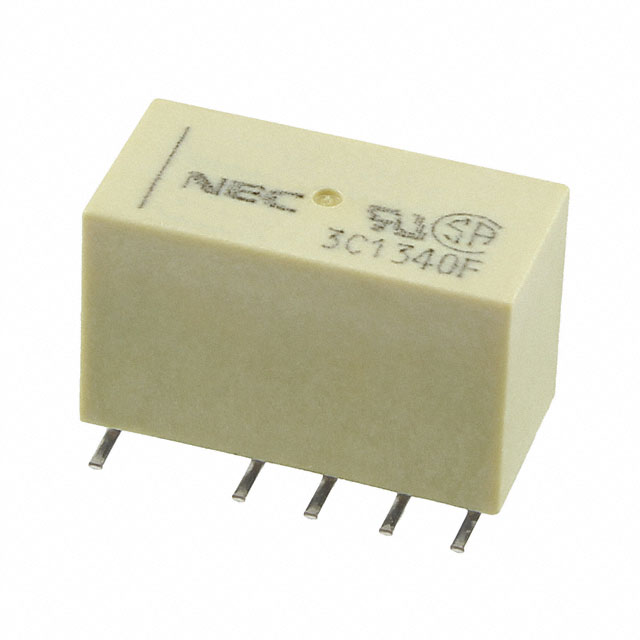

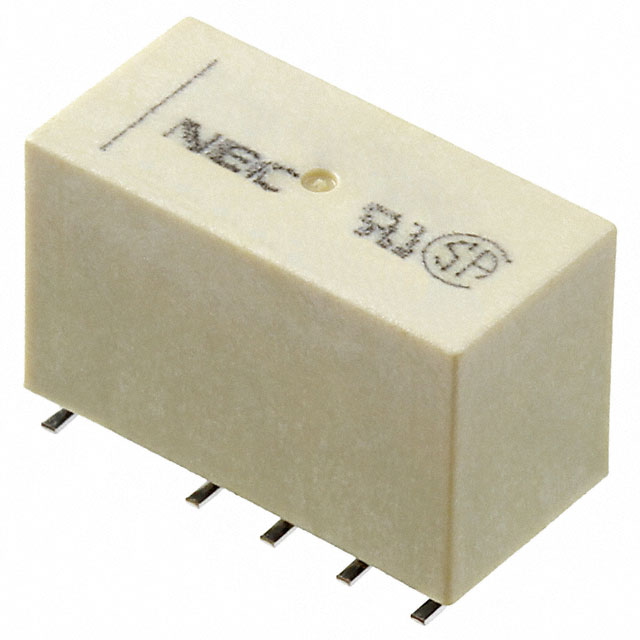

SIGNAL RELAY, EE2 SERIES, LATCHING DUAL COIL, DPDT, SMD, 2 A, 5 VDC ROHS COMPLIANT: YES
| Part | Coil Resistance | Mounting Type | Release Time | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Operate Time | Relay Type | Termination Style | Coil Voltage | Contact Rating (Current) | Contact Form | Load - Max Switching | Switching Voltage [Max] | Must Operate Voltage | Coil Current | Coil Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 178 Ohms | Surface Mount | 1 ms | 85 °C | -40 C | CSA TUV UL | 2 ms | General Purpose | Gull Wing | 5 VDC | 2 A | DPDT (2 Form C) | 440 W 500 VA | 220 VDC 250 VAC | 3.75 VDC | 28 mA | Dual Coil Latching | Gold Alloy Silver Alloy |
 KEMET | 178 Ohms | Surface Mount | 1 ms | 85 °C | -40 C | CSA TUV UL | 2 ms | General Purpose | Gull Wing | 5 VDC | 2 A | DPDT (2 Form C) | 440 W 500 VA | 220 VDC 250 VAC | 3.75 VDC | 28 mA | Dual Coil Latching | Gold Alloy Silver Alloy |
 KEMET | 178 Ohms | Surface Mount | 1 ms | 85 °C | -40 C | CSA TUV UL | 2 ms | General Purpose | Gull Wing | 5 VDC | 2 A | DPDT (2 Form C) | 440 W 500 VA | 220 VDC 250 VAC | 3.75 VDC | 28 mA | Dual Coil Latching | Gold Alloy Silver Alloy |
KEMET | 178 Ohms | Surface Mount | 1 ms | 85 °C | -40 C | CSA TUV UL | 2 ms | General Purpose | Gull Wing | 5 VDC | 2 A | DPDT (2 Form C) | 440 W 500 VA | 220 VDC 250 VAC | 3.75 VDC | 28 mA | Dual Coil Latching | Gold Alloy Silver Alloy |
