2823407 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

22P,2MM,PL HDR,DRVT,2.8,0.38AU,T

Part	Connector Type	Contact Material	Termination	Number of Positions Loaded	Style	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Contact Type	Number of Positions	Insulation Color	Contact Shape	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating [x]	Pitch - Mating [x]	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Mounting Type	Insulation Height [custom]	Insulation Height [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Voltage Rating	Fastening Type	Material Flammability Rating	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Number of Positions

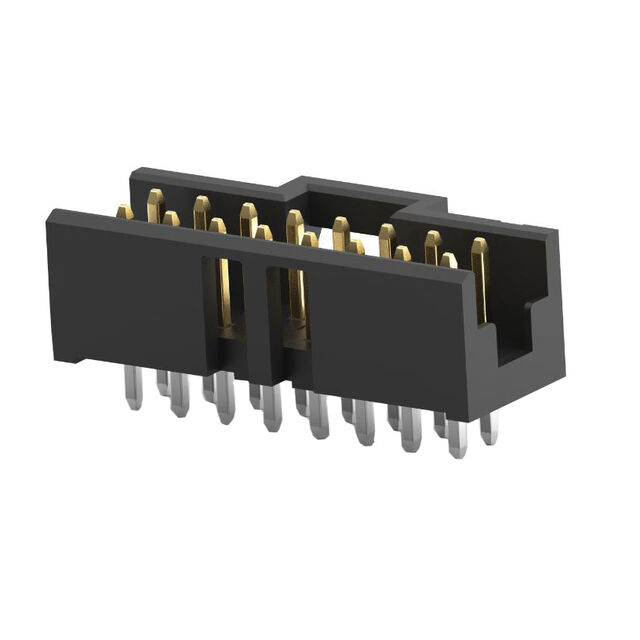

TE Connectivity Raychem Cable Protection 2-2823407-2	Header	Phosphor Bronze	Solder	All	Board to Board Cable	4 mm	0.157 in	125 °C	-40 °C	Shrouded - 2 Wall	Male Pin	22 positions	Black	Square	2	0.11 in	2.8 mm	0.079 in	2 mm	2 A	157.5 Áin	4 Ám	Thermoplastic	Through Hole	5.51 mm	0.217 in	15 µin	0.38 µm	Tin	125 VAC	Latch Holder	UL94 V-0	Gold	0.079 in	2 mm

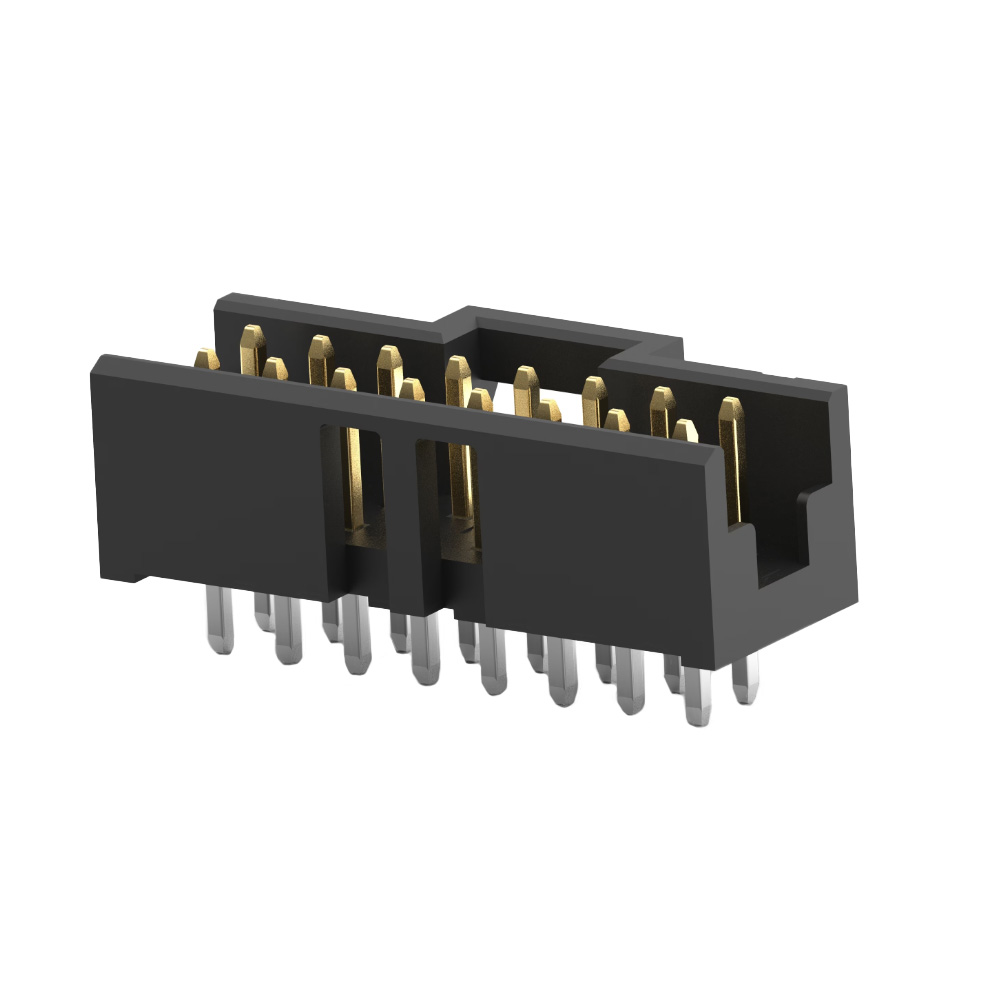

TE Connectivity Raychem Cable Protection 1-2823407-4	Header	Phosphor Bronze	Solder	All	Board to Board Cable	4 mm	0.157 in	125 °C	-40 °C	Shrouded - 2 Wall	Male Pin	14	Black	Square	2	0.11 in	2.8 mm	0.079 in	2 mm	2 A	157.5 Áin	4 Ám	Thermoplastic	Through Hole	5.51 mm	0.217 in	15 µin	0.38 µm	Tin	125 VAC	Latch Holder	UL94 V-0	Gold	0.079 in	2 mm
TE Connectivity Raychem Cable Protection 2-2823407-0	Header	Phosphor Bronze	Solder	All	Board to Board Cable	4 mm	0.157 in	125 °C	-40 °C	Shrouded - 2 Wall	Male Pin	20	Black	Square	2	0.11 in	2.8 mm	0.079 in	2 mm	2 A	157.5 Áin	4 Ám	Thermoplastic	Through Hole	5.51 mm	0.217 in	15 µin	0.38 µm	Tin	125 VAC	Latch Holder	UL94 V-0	Gold	0.079 in	2 mm

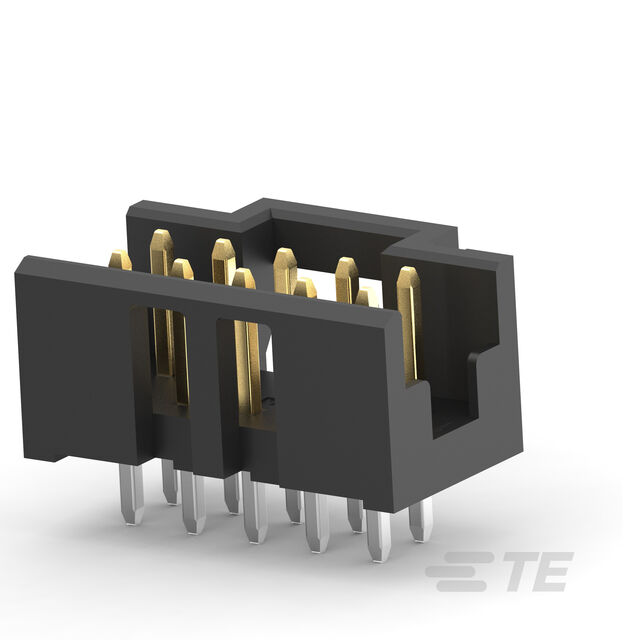

TE Connectivity Raychem Cable Protection 1-2823407-2	Header	Phosphor Bronze	Solder	All	Board to Board Cable	4 mm	0.157 in	125 °C	-40 °C	Shrouded - 2 Wall	Male Pin	12	Black	Square	2	0.11 in	2.8 mm	0.079 in	2 mm	2 A	157.5 Áin	4 Ám	Thermoplastic	Through Hole	5.51 mm	0.217 in	15 µin	0.38 µm	Tin	125 VAC	Latch Holder	UL94 V-0	Gold	0.079 in	2 mm
TE Connectivity Raychem Cable Protection 2-2823407-4	Header	Phosphor Bronze	Solder	All	Board to Board Cable	4 mm	0.157 in	125 °C	-40 °C	Shrouded - 2 Wall	Male Pin	24	Black	Square	2	0.11 in	2.8 mm	0.079 in	2 mm	2 A	157.5 Áin	4 Ám	Thermoplastic	Through Hole	5.51 mm	0.217 in	15 µin	0.38 µm	Tin	125 VAC	Latch Holder	UL94 V-0	Gold	0.079 in	2 mm

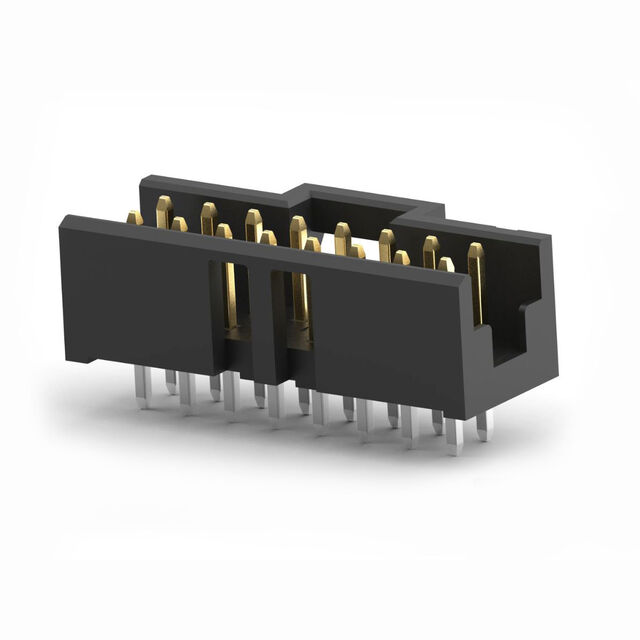

TE Connectivity Raychem Cable Protection 2-2823407-6	Header	Phosphor Bronze	Solder	All	Board to Board Cable	4 mm	0.157 in	125 °C	-40 °C	Shrouded - 2 Wall	Male Pin	26	Black	Square	2	0.11 in	2.8 mm	0.079 in	2 mm	2 A	157.5 Áin	4 Ám	Thermoplastic	Through Hole	5.51 mm	0.217 in	15 µin	0.38 µm	Tin	125 VAC	Latch Holder	UL94 V-0	Gold	0.079 in	2 mm

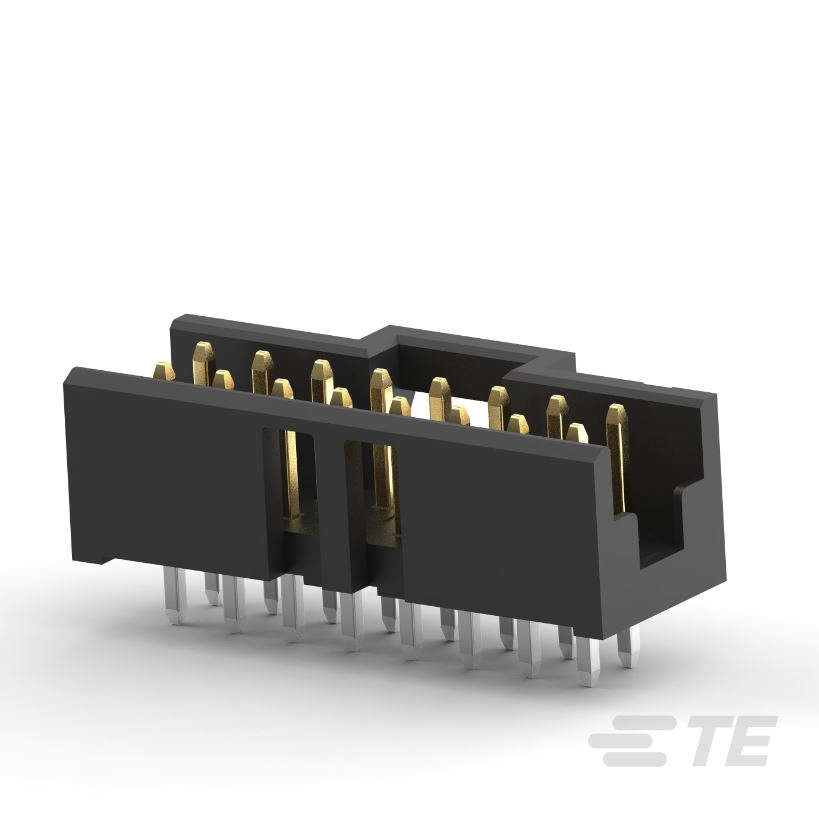

TE Connectivity Raychem Cable Protection 3-2823407-2	Header	Phosphor Bronze	Solder	All	Board to Board Cable	4 mm	0.157 in	125 °C	-40 °C	Shrouded - 2 Wall	Male Pin		Black	Square	2	0.11 in	2.8 mm	0.079 in	2 mm	2 A	157.5 Áin	4 Ám	Thermoplastic	Through Hole	5.51 mm	0.217 in	15 µin	0.38 µm	Tin	125 VAC	Latch Holder	UL94 V-0	Gold	0.079 in	2 mm
TE Connectivity Raychem Cable Protection 3-2823407-0	Header	Phosphor Bronze	Solder	All	Board to Board Cable	4 mm	0.157 in	125 °C	-40 °C	Shrouded - 2 Wall	Male Pin	30	Black	Square	2	0.11 in	2.8 mm	0.079 in	2 mm	2 A	157.5 Áin	4 Ám	Thermoplastic	Through Hole	5.51 mm	0.217 in	15 µin	0.38 µm	Tin	125 VAC	Latch Holder	UL94 V-0	Gold	0.079 in	2 mm
TE Connectivity Raychem Cable Protection 1-2823407-8	Header	Phosphor Bronze	Solder	All	Board to Board Cable	4 mm	0.157 in	125 °C	-40 °C	Shrouded - 2 Wall	Male Pin	18	Black	Square	2	0.11 in	2.8 mm	0.079 in	2 mm	2 A	157.5 Áin	4 Ám	Thermoplastic	Through Hole	5.51 mm	0.217 in	15 µin	0.38 µm	Tin	125 VAC	Latch Holder	UL94 V-0	Gold	0.079 in	2 mm

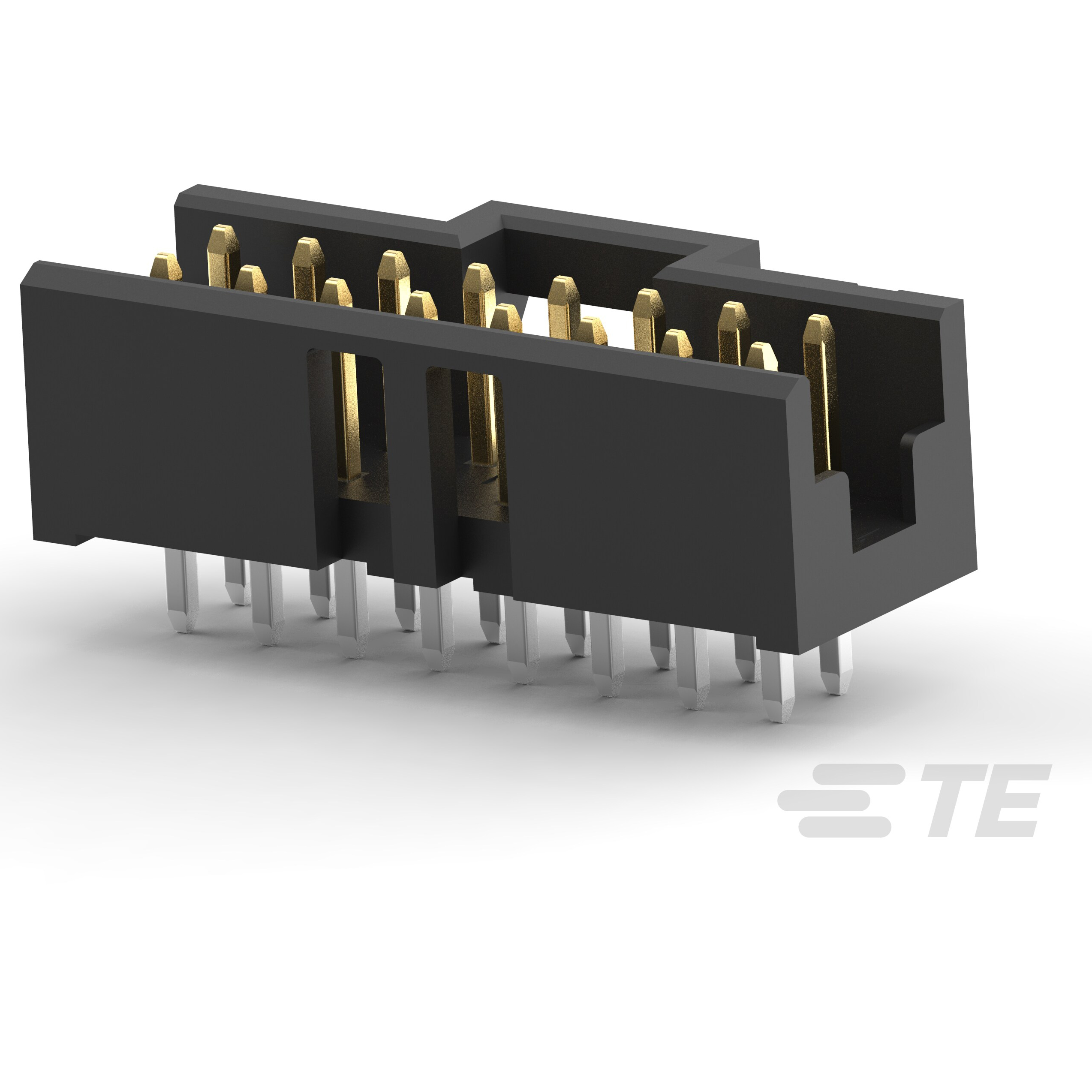

TE Connectivity Raychem Cable Protection 1-2823407-6	Header	Phosphor Bronze	Solder	All	Board to Board Cable	4 mm	0.157 in	125 °C	-40 °C	Shrouded - 2 Wall	Male Pin		Black	Square	2	0.11 in	2.8 mm	0.079 in	2 mm	2 A	157.5 Áin	4 Ám	Thermoplastic	Through Hole	5.51 mm	0.217 in	15 µin	0.38 µm	Tin	125 VAC	Latch Holder	UL94 V-0	Gold	0.079 in	2 mm	16
