5724 Series
Manufacturer: Bourns Inc.
Beta
⌘K

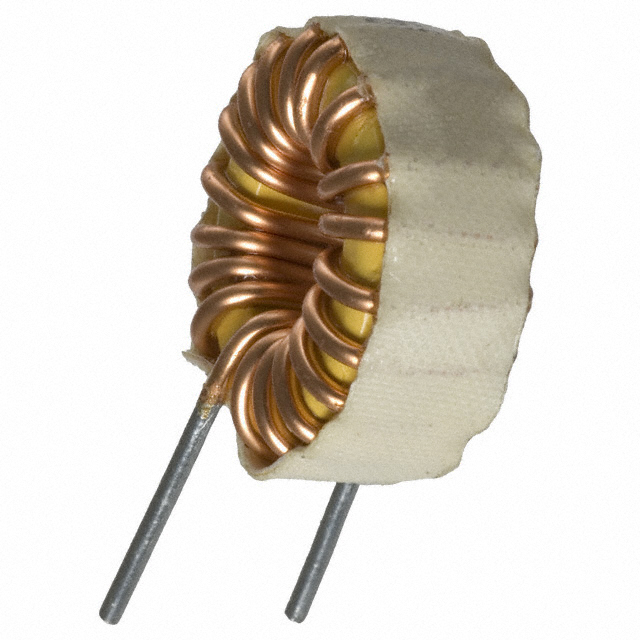

FIXED IND 4MH 1.75A 1.16 OHM TH
| Part | Size / Dimension [diameter] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [diameter] | Current Rating (Amps) | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Type | Mounting Type | Inductance | DC Resistance (DCR) [Max] | Material - Core | Tolerance | Inductance Frequency - Test | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 2.125 in | 0.937 " | 23.8 mm | 53.97 mm | 1.75 A | Unshielded | -55 C | 105 ░C | Toroidal | Through Hole | 4 mH | 1.16 Ohm | Iron Powder | 15 % | 1 kHz | Radial Vertical (Open) |
