LCDN Series

Catalog

TERMINALS COPPER COMPRESSION LUG, 2 HOLE, #1 AWG,

Part	Contact Material	Diameter - Ring ID	Diameter - Ring ID	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Contact Finish	Termination	Terminal Type	Insulation	Width - Outer Edges [x]	Width - Outer Edges [x]	Stud/Tab Size	Length - Overall [x]	Length - Overall [x]	Mounting Type	Tab Thickness	Tab Thickness	Terminal Style	Wire Gauge	Color	Width - Outer Edges	Width - Outer Edges	Tab Thickness [x]	Tab Thickness [x]	Diameter - Ring ID
Panduit Corp LCDN1-14A-E	Copper	0.27 in	6.86 mm	0.36 in	9.14 mm	0.47 "	11.94 mm	Electro-Tin	Barrel Crimp	Rectangular Tongue	Non-Insulated	0.47 in	11.94 mm	0.25 Stud	61.47 mm	2.42 in	Free Hanging (In-Line)	0.11 in	2.79 mm	Two Stud Holes	1 AWG	Green
Panduit Corp LCDN1/0-14AF-X	Copper	0.27 in	6.86 mm	0.39 in	9.91 mm	0.52 in	13.21 mm	Electro-Tin	Barrel Crimp	Rectangular Tongue	Non-Insulated			0.25 Stud			Free Hanging (In-Line) Right Angle	0.12 in	3.05 mm	Two Stud Holes	44 AWG	Pink	0.52 in	13.21 mm
Panduit Corp LCDN2/0-14AH-X	Copper	0.27 in	6.86 mm	0.45 in	11.43 mm	0.58 "	14.73 mm	Electro-Tin	Barrel Crimp	Rectangular Tongue	Non-Insulated	0.58 in	14.73 mm	0.25 Stud			Free Hanging (In-Line)			Two Stud Holes		Black			3.3 mm	0.13 in
Panduit Corp LCDN1/0-56D-X	Copper		0.34 in	0.39 in	9.91 mm	0.52 in	13.21 mm	Electro-Tin	Barrel Crimp	Rectangular Tongue	Non-Insulated			0.3125 Stud	76.2 mm	3 in	Free Hanging (In-Line)			Two Stud Holes	44 AWG	Pink	0.52 in	13.21 mm	3.3 mm	0.13 in	8.64 mm

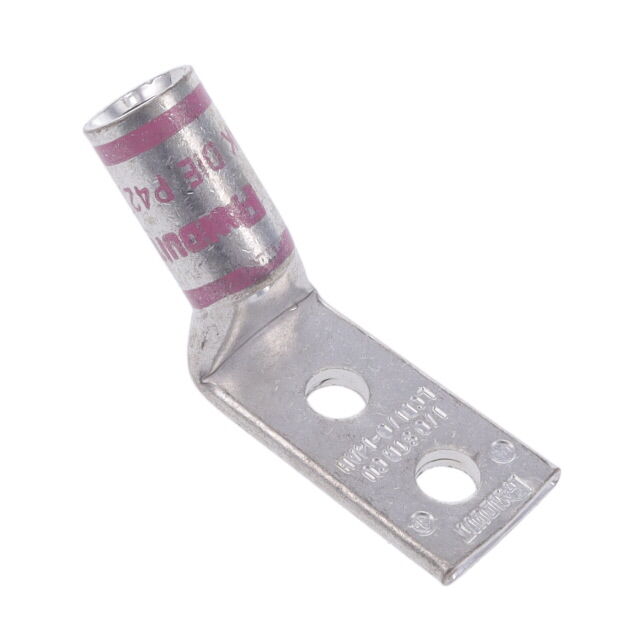

Panduit Corp LCDN1/0-14AH-X	Copper	0.27 in	6.86 mm	0.39 in	9.91 mm	0.52 in	13.21 mm	Electro-Tin	Barrel Crimp	Rectangular Tongue	Non-Insulated			0.25 Stud			Free Hanging (In-Line)	0.12 in	3.05 mm	Two Stud Holes	44 AWG	Pink	0.52 in	13.21 mm
Panduit Corp LCDN2/0-14AF-X	Copper	0.27 in	6.86 mm	0.45 in	11.43 mm	0.58 "	14.73 mm	Electro-Tin	Barrel Crimp	Rectangular Tongue	Non-Insulated	0.58 in	14.73 mm	0.25 Stud			Free Hanging (In-Line) Right Angle			Two Stud Holes		Black			3.3 mm	0.13 in
Panduit Corp LCDN4/0-14A-X	Copper	0.27 in	6.86 mm	0.57 "	14.48 mm	0.71 in	18.03 mm	Electro-Tin	Barrel Crimp	Rectangular Tongue	Non-Insulated			0.25 Stud	76.45 mm	3.01 in	Free Hanging (In-Line)	0.14 in	3.56 mm	Two Stud Holes	4 aught AWG	Purple	0.71 in	18.03 mm
