5275-2 Series

Catalog

CONN PC PIN CIRC .025DIA GOLD

Part	Mounting Type	Termination	Pin Size - Above Flange	Pin Size - Above Flange	Terminal Style	Contact Finish Thickness	Contact Finish Thickness	Terminal Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Contact Material	Length - Above Flange [x]	Length - Above Flange [x]	Insulation

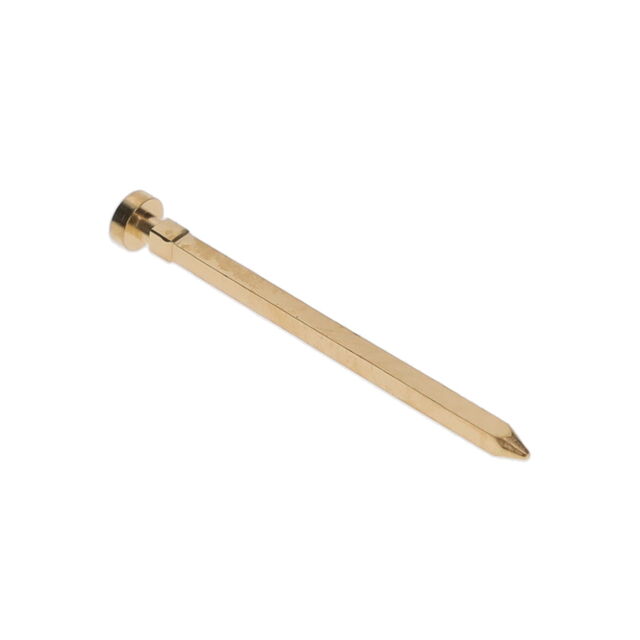

Mill-Max Manufacturing Corp. 5275-2-05-15-00-00-01-0	Through Hole	Press-Fit Square Wire Wrap	0.025 in	0.64 mm	Single End	0.25 Ám	10 Áin	PC Pin	0.89 mm	0.035 in	0.54 in	13.72 mm	0.06 in	1.52 mm	Gold	Brass Alloy	13.21 mm	0.52 in	Non-Insulated

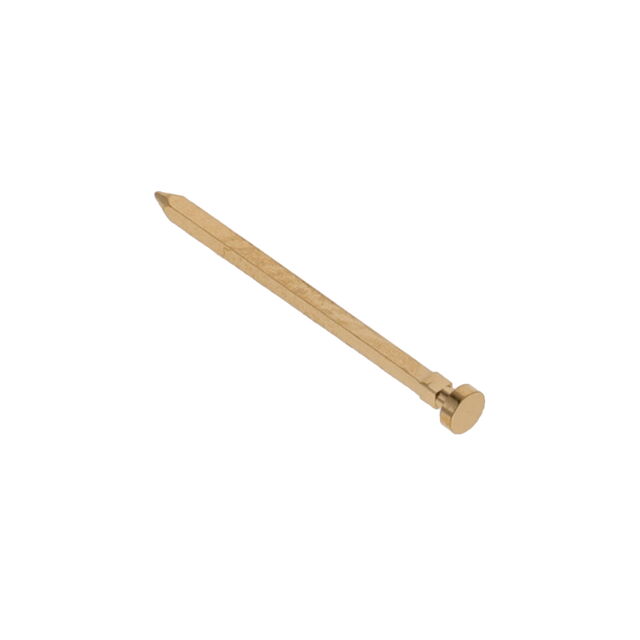

Mill-Max Manufacturing Corp. 5275-2-05-21-00-00-01-0	Through Hole	Press-Fit Square Wire Wrap	0.025 in	0.64 mm	Single End	0.51 µm	20 µin	PC Pin	0.89 mm	0.035 in	0.54 in	13.72 mm	0.06 in	1.52 mm	Gold	Brass Alloy	13.21 mm	0.52 in	Non-Insulated
Mill-Max Manufacturing Corp. 5275-2-05-80-00-00-01-0	Through Hole	Press-Fit Square Wire Wrap	0.025 in	0.64 mm	Single End	5.08 Ám	200 Áin	PC Pin	0.89 mm	0.035 in	0.54 in	13.72 mm	0.06 in	1.52 mm	Tin	Brass Alloy	13.21 mm	0.52 in	Non-Insulated
Mill-Max Manufacturing Corp. 5275-2-05-01-00-00-01-0	Through Hole	Press-Fit Square Wire Wrap	0.025 in	0.64 mm	Single End	5.08 Ám	200 Áin	PC Pin	0.89 mm	0.035 in	0.54 in	13.72 mm	0.06 in	1.52 mm	Tin-Lead	Brass Alloy	13.21 mm	0.52 in	Non-Insulated
